Avaya Solution & Interoperability Test Lab

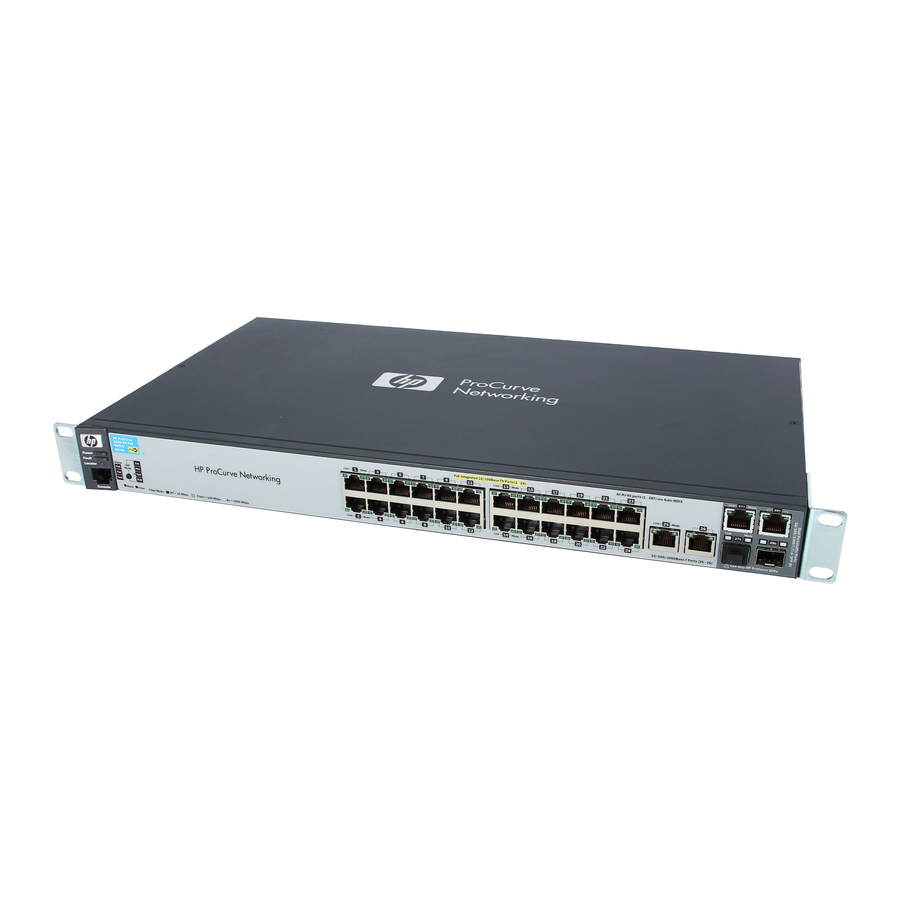

Application Notes for the HP ProCurve 2520-24-PoE Switch
Supporting Power over Ethernet with Avaya Endpoints
– Issue 1.0
These Application Notes describe the procedures for configuring the HP ProCurve 2520-24-
PoE Switch to provide inline Power over Ethernet (PoE) to Avaya 1600/5600/9600 Series IP
Telephones.
Information in these Application Notes has been obtained through DevConnect compliance
testing and additional technical discussions. Testing was conducted via the DevConnect
Program at the Avaya Solution and Interoperability Test Lab.
TMA; Reviewed:
SPOC 11/16/2009
Abstract
Solution & Interoperability Test Lab Application Notes
©2009 Avaya Inc. All Rights Reserved.
1 of 10
ProC2520-24PoE
Advertisement
Table of Contents
Related Manuals for Avaya PROCURVE 2520-24-POE
Summary of Contents for Avaya PROCURVE 2520-24-POE
- Page 1 – Issue 1.0 These Application Notes describe the procedures for configuring the HP ProCurve 2520-24- PoE Switch to provide inline Power over Ethernet (PoE) to Avaya 1600/5600/9600 Series IP Telephones. Information in these Application Notes has been obtained through DevConnect compliance testing and additional technical discussions.
-
Page 2: Reference Configuration
The power tests included verification of the following after each powered device was connected to the switch: Successful boot operation. Connecting a mix of Avaya IP Telephones to the switch, power cycling the switch and verifying successful boot operation of the PDs and registration of the telephones. 1.2. Support For technical support on ProCurve products, consult the support pages at: http://www.procurve.com/customercare/support... - Page 3 Figure 1: HP ProCurve 2520-24-PoE Switch and Avaya IP Telephones TMA; Reviewed: Solution & Interoperability Test Lab Application Notes 3 of 10 SPOC 11/16/2009 ©2009 Avaya Inc. All Rights Reserved. ProC2520-24PoE...
-
Page 4: Equipment And Software Validated
Avaya 9650C one-X Deskphone Edition IP Telephone Avaya 9640G one-X Deskphone Edition IP Telephone Avaya 9640 one-X Deskphone Edition IP Telephone Avaya 9630 one-X Deskphone Edition IP Telephone with and without SBM24 24-button module Avaya 9620 one-X Deskphone Edition IP Telephone with and... -
Page 5: Test Results
All Power over Ethernet test cases completed successfully. The ProCurve 2520-24-PoE Switch successfully provided inline power to all of the Avaya IP Telephones listed in Table2. Table 2 lists the measured power of the Avaya IP Telephones when connected to the ProCurve 2520-24- PoE Switch. - Page 6 Table 2 summarizes the measured output of the Avaya IP Telephones. Avaya Powered Device 16CC 1603 with PoE Splitter 1608 1616 (D02A Series (NEW) 1616 (D01A Series (OLD) 1616 with BM32 5610SW 5620SW 9610 9620L 9620 9620C 9630 9630 with SMB24...
-
Page 7: Verification Steps
17 W 0.0 W usage 17 W 0.0 W usage 17 W 0.0 W usage 17 W 0.0 W usage 17 W 0.0 W ©2009 Avaya Inc. All Rights Reserved. Detection Type Status Delivering Searching Searching Searching Searching Searching... - Page 8 Connect the Avaya PD to a PoE enabled port on the ProCurve 2520-24-PoE Switch and verify that the PD powers on successfully. If the PD does not power on, enter the command show power-over-ethernet <portlist> where <portlist> is the name of the port on the ProCurve 2520-24-PoE Switch.
-
Page 9: Additional References
[1] Administering Avaya Aura™ Communication Manager, May 2009, Issue 5.0, Document Number 03-300509. [2] Avaya one-X Deskphone Edition for 9600 Series IP Telephones Administrator Guide Release 3.0, Document Number 16-300698. [3] Avaya one-X Deskphone Value 1600 Series IP Telephones Installation and Maintenance Guide Release 1, Document # 16-601443. - Page 10 2009 Avaya Inc. All Rights Reserved. © Avaya and the Avaya Logo are trademarks of Avaya Inc. All trademarks identified by ® and ™ are registered trademarks or trademarks, respectively, of Avaya Inc. All other trademarks are the property of their respective owners. The information provided in these Application Notes is subject to change without notice.
