Step1 Place the wall-mounting bracket tightly against the wall where the AP is to be
mounted and mark the locations to drill holes for installing the screws. Then
use a drill with a bit of 6 mm (1/4 in) in diameter to drill holes in the wall. The
hole pattern must be identical with that in the wall-mounting bracket.
Highlight:
There are five mounting holes in total in the wall-mounting bracket of the AP9152.
Select the three round holes (with a diameter of 5 mm, or 0.20 in) for the installation.

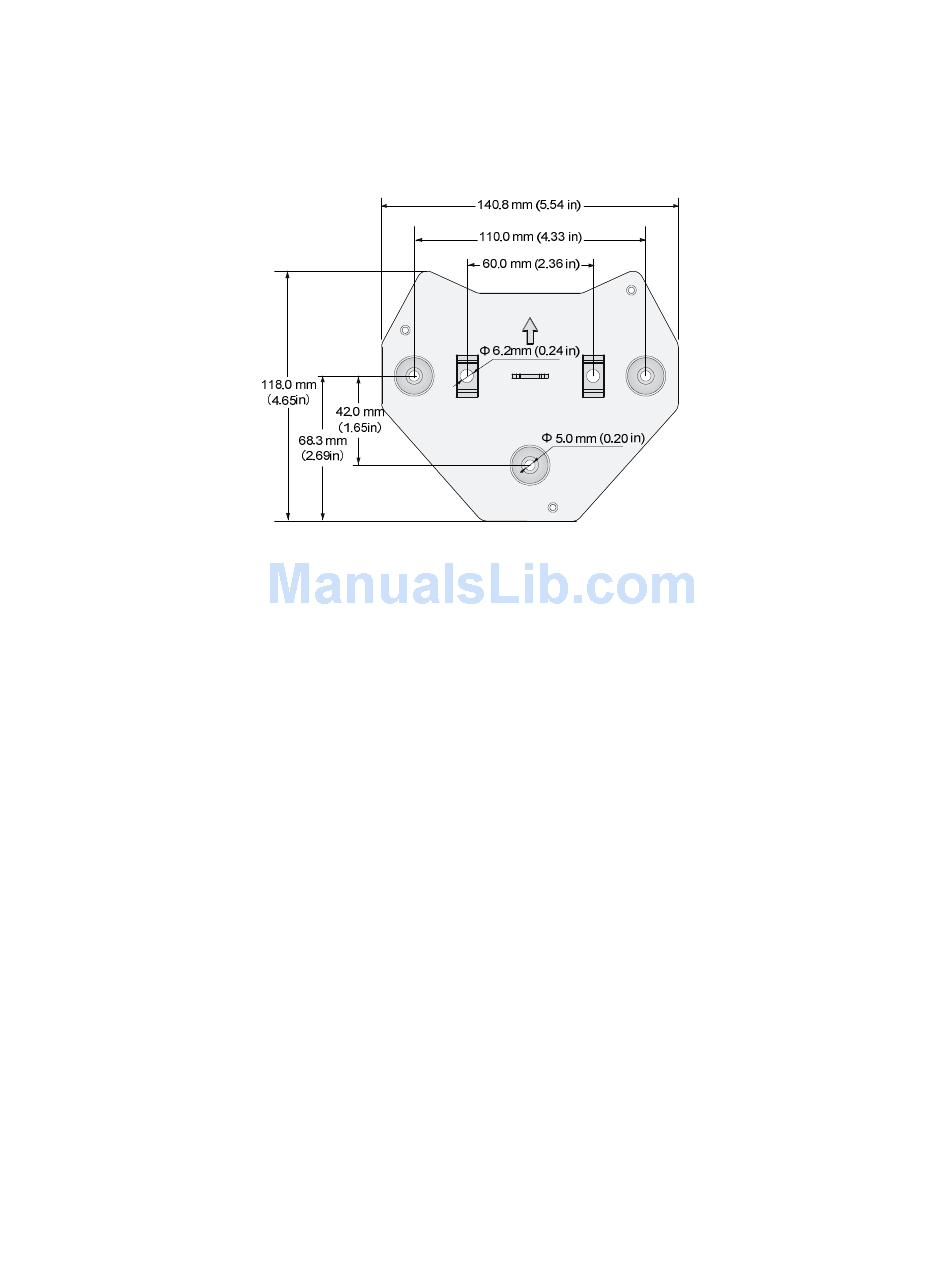

Figure1 Mounting hole pattern of, the AP9152 wall-mounting bracket:
Step2 Insert the pointed end of wall anchors into the drilled holes and tap the flat end
of wall anchors with a rubber hammer until they are all flush with the wall
surface.
Step3 Align the holes in the wall-mounting bracket with the wall anchors and insert
screws through the mounting holes into the wall anchors, as shown in Figure1.
