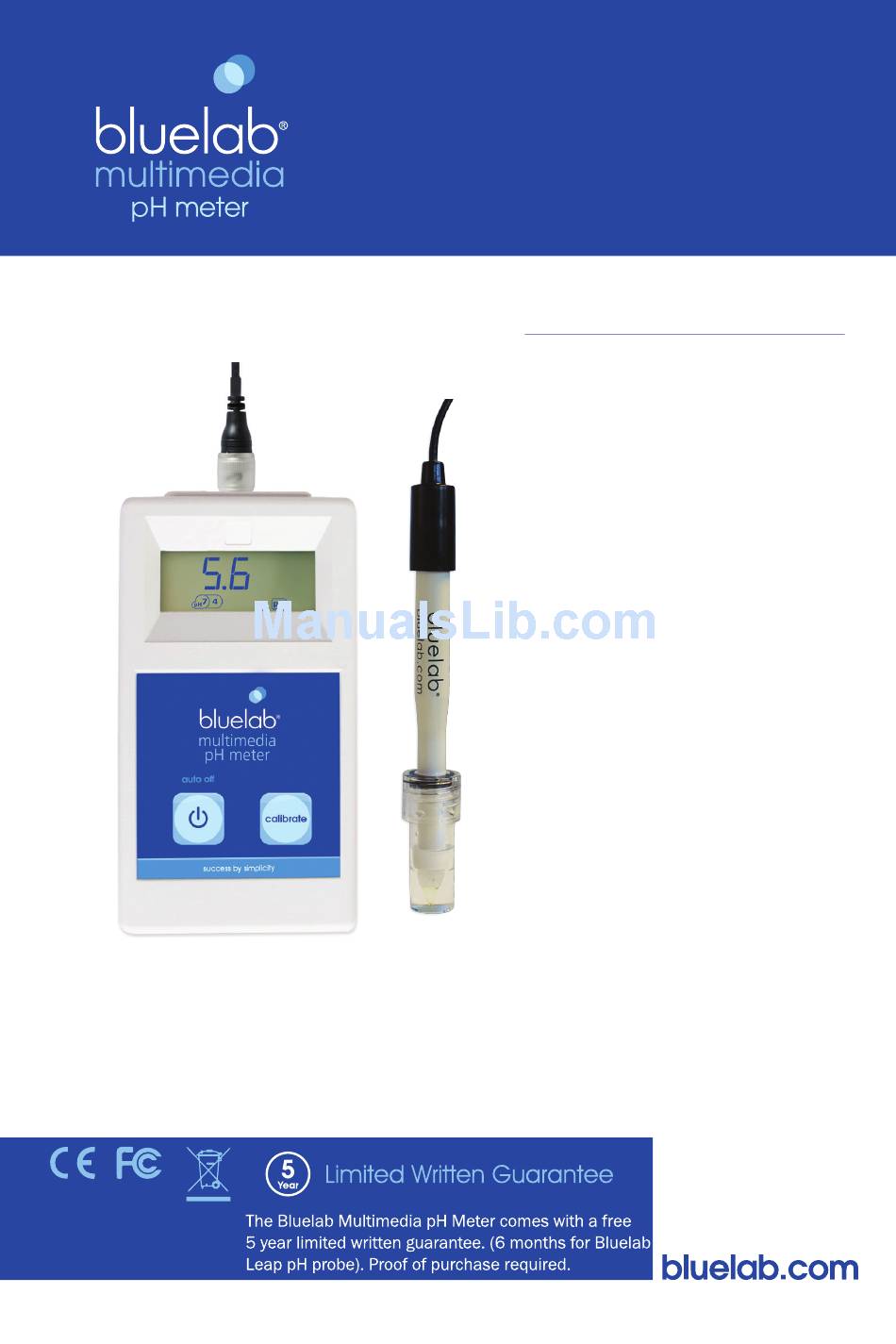

Probe cable length:
2 metres / 6.6 feet
Care and Use
Guide.
Contents
®
®
®
®
®
®
page
2
3
3
4
6
8
8
9
9
10
11
11
12
13
14
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multimedia pHMeter and is the answer not in the manual?

Questions and answers

Related Manuals for bluelab Multimedia pHMeter

Summary of Contents for bluelab Multimedia pHMeter

  • Page 1: Table Of Contents

    Calibration Information about measuring the pH of soils/media Measuring the pH value Measuring soil solution pH value Battery replacement Cleaning the Bluelab ® Leap™ pH Probe Hydrating the Leap™ pH Probe 10 Storing the Bluelab ® Multimedia pH Meter Error messages...

  • Page 2: Features

    Toughened spear tip for direct root-zone Toughened glass for a more robust probe measurements Simple two point calibration process with Backlit LCD display, low battery indicator, 30 day calibration indicator auto off function Bluelab Multimedia pH Meter ® Leap™ pH Probe connection socket (BNC...

  • Page 3: Introduction

    Leap™ Probe are used for the first time. ® IMPORTANT: The Bluelab® Leap™ pH Probe must be preconditioned to your intended grow media before calibration. The bridge between the glass tip of the probe and the body of the probe may change colour/look dirty (this is especially obvious with soils with higher clay contents).

  • Page 4: Calibration

    When calibrating the pH after first use the Bluelab Leap™ pH Probe needs to be ® cleaned. See Leap™ pH Probe cleaning in section 8.0. The Bluelab Leap™ pH Probe ® does not need to be cleaned for initial calibration unless you have pre-conditioned the probe in media.
  • Page 5 ® does not require cleaning before the first use, unless it has been preconditioned). pH 7.0 calibration a) Press any button to turn the Bluelab ® Rinse the Leap™ pH Multimedia pH Meter ON. b) Loosen and remove cap from probe.

  • Page 6: Information About Measuring The Ph Of Soils/Media

    4.0 Information about measuring the pH of soil/media pH is the measurement of the hydrogen ion concentration (H+) - acidity and its opposite, alkalinity. Neutral pH is 7.0 pH. Acidity measures below seven pH (7.0 pH) with alkalinity measuring above it (7.0 pH). See chart below. In soil or growing media, pH strongly influences the availability of nutrients to the plant and the presence of microorganisms in the soil.
  • Page 7 4.0 Information about measuring the pH of soil/media cont. Taking pH measurements of soil with an electronic meter is indicative rather than absolute. The following factors are outside the control of any Multimedia pH Meter, so to minimise their effect on the accuracy of the pH measurement you should consider the following precautions: Moisture level/raw water If the sample you are wishing to measure is dry, add RO water or distilled water to moisten.

  • Page 8: Measuring The Ph Value

    Once the Bluelab Multimedia pH Meter has been set up and calibrated, using it to measure ® a pH value involves using the Bluelab Leap™ pH Probe, the dibber/auger for coarse soil and ® button functions. NOTE: The pH probe tip must not have dried out. If it has dried, soak the Bluelab ®...

  • Page 9: Battery Replacement

    Batteries are replaced in the Bluelab Multimedia pH Meter when the low battery ® indicator appears on screen. The low battery indicator remains on and the Bluelab ® Multimedia pH Meter continues to operate until the batteries die or are replaced.

  • Page 10: Hydrating The Leap™ Ph Probe

    Hydrating the Leap™ pH Probe Hydrate the Leap™ pH Probe in Bluelab pH Probe KCl Storage Solution when: ® • the probe tip has not always been stored in KCl storage solution, to improve the reading response speed. • the probe tip has been accidentally allowed to dry out Never use RO (Reverse Osmosis), Deionized or Distilled water.

  • Page 11: Error Messages

    An error message will only appear following pH calibration failure. ‘Err’ will be displayed for a few seconds then the display will show the previous reading. Successful pH calibration indicators will disappear. The Bluelab Multimedia pH Meter is in an uncalibrated state, therefore recalibration is required.

  • Page 12: Troubleshooting Guide

    Replace if in doubt. Incorrect pH calibration. Wait longer for readings to stabilize before calibrating to a constant value. ® Re -calibrate Bluelab Leap™ pH pH calibration unreliable. Probe (see section 3.0). Bluelab ® Leap™ pH Probe Replace Bluelab ®...

  • Page 13: Bluelab ® Leap™ Ph Probe Replacement

    Solution The perfect solution to store and hydrate your Bluelab pH products. Bluelab pH Probe KCl Storage Solution is designed to increase response time and maximize the life of Bluelab pH pens and pH probes. For best results, use the KCl solution to store the pH pen/ probe after use and hydrate monthly.

  • Page 14: Bluelab ® Limited Warranty

    OF ALL OTHER WARRANTIES, GUARANTEES AND REMEDIES (ORAL OR WRITTEN, EXPRESS OR IMPLIED). EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, BLUELAB IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTIAL OR CONSEQUENTIAL LOSS OR DAMAGES, OR ANY OTHER LOSS OR DAMAGES RESULTING FROM SALE OR USE OF THE PRODUCT, OR BREACH OF WARRANTY, HOWEVER CAUSED, INCLUDING DAMAGES FOR LOST PROFITS, PERSONAL INJURY OR PROPERTY DAMAGE.

  • Page 15: Contact Details

    6 months for the Bluelab Leap™ pH Probe. Proof of purchase ® required. Post Bluelab Corporation Limited ® 8 Whiore Avenue Tauriko Business Estate Tauranga 3110 New Zealand Instruction Manual English METMULTI_V01_181017 © Copyright 2017, all rights reserved, Bluelab Corporation Limited ®...
