Summary of Contents for bluelab Combo Meter

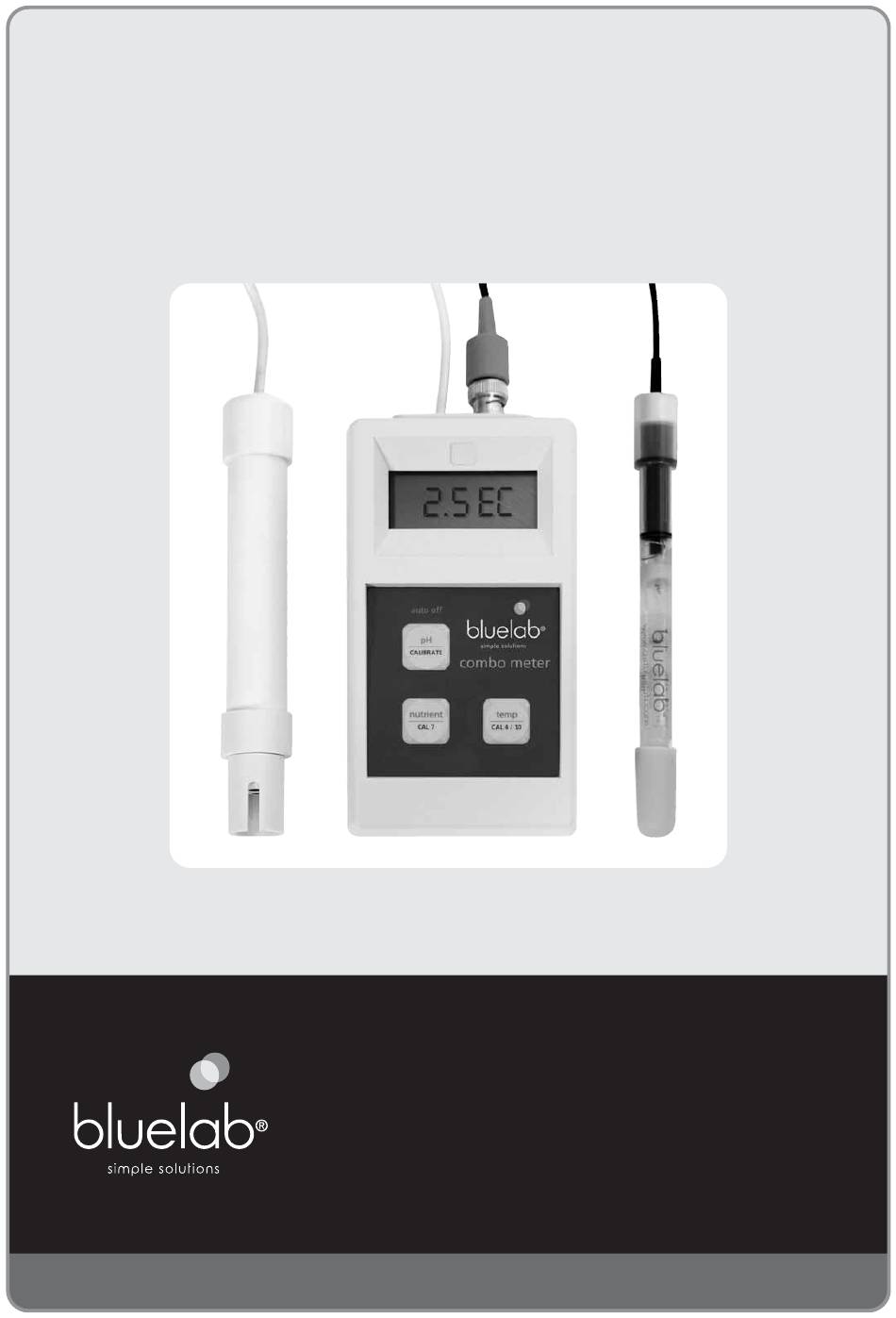

- Page 1 Bluelab Combo Meter Instruction Manual combo meter www.getbluelab.com...
-
Page 2: Table Of Contents
1.0 Introduction to Bluelab Combo Meter 1.1 Button Functions 1.2 Meter Calibration 1.3 Storage of Meter 1.4 ppm Scale 2.0 Preparing Bluelab Combo Meter for Use 3.0 Measuring Hydroponic Values 3.1 Measure Nutrient/Conductivity 3.2 Measure Temperature 3.3 Measure pH Value 4.0 Changing Nutrient or Temperature Display Units... -
Page 3: Introduction To Bluelab Combo Meter

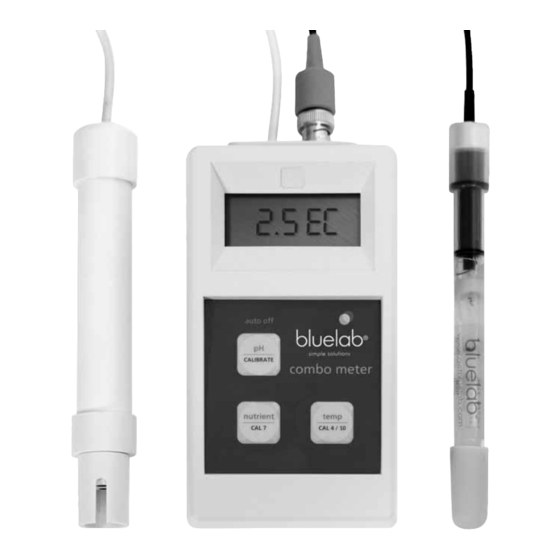

Bluelab Corporation Limited 1.0 Introduction to Bluelab Combo Meter The battery operated Combo Meter measures nutrient, temperature and pH levels by use of one or the other of the two probes connected to an electronic meter. The meter has a liquid crystal display (LCD) digital readout. -
Page 4: Preparing Bluelab Combo Meter For Use
Bluelab Corporation Limited 2.0 Preparing Bluelab Combo Meter for Use Preparing the Bluelab Combo Meter for use involves hydrating the pH probe, inserting 2 x AAA batteries, connecting the pH probe and calibrating the pH. These tasks are performed before the meter is used for the first time. -
Page 5: Measuring Hydroponic Values
Bluelab Combo Meter Bluelab Corporation Limited 3.0 Measuring Hydroponic Values The values measured within hydroponics by the Combo meter include nutrient (conductivity), temperature and pH levels. 3.1 Measure Nutrient/Conductivity Obtain Conductivity Value Insert white nutrient/temperature probe into solution where there is strong movement of the solution, or stir the solution with the probe. -
Page 6: Changing Nutrient Or Temperature Display Units
Bluelab Combo Meter Bluelab Corporation Limited 4.0 Changing Nutrient or Temperature Display Units Nutrient and temperature can be displayed in different units. The units available are shown in the tables below. 4.1 Change Nutrient Display Units Set Unit Press and hold the NUTRIENT button until the display starts flashing, then release the button. -
Page 7: Cleaning Probes And Meter Maintenance
Figure 5. Shroud Removed Rinse Probe Place probe under running water. Using the same finger or other side of Bluelab Chamois, completely remove all traces of cleaner. Check Probe Cleanliness Check that water forms a film on the probe face, without beads of water. If beading is present, repeat the cleaning process until the face retains a water film without beading. -
Page 8: Ph Calibration
Bluelab Combo Meter Bluelab Corporation Limited 5.0 Cleaning Probes and Meter Maintenance cont. 5.4 pH Calibration For accurate meter readings the pH probe is cleaned and recalibrated frequently. The pH calibration involves cleaning the pH probe and then calibrating in two solutions. -
Page 9: Error Messages
Bluelab Combo Meter Bluelab Corporation Limited 6.0 Error Messages Error messages can appear during calibration or when the probe or meter is damaged. The following table describes error messages, the reason and cause for an error message. To clear a calibration error message press any button once. The meter will reset to the factory set calibration and will need to be recalibrated successfully before use. -
Page 10: Troubleshooting Guide
Bluelab Combo Meter Bluelab Corporation Limited 7.0 Troubleshooting Guide Trouble Possible reason Possible solution Clean probe as described in Nutrient Section 5.0 of this document. readings Contaminated probe. Wait 5 to 10 minutes for inaccurate reading to stabilize. Temperature Temperature of probe different... -
Page 11: Technical Specifications
Limitation of Liability: Under no circumstances shall Bluelab Corporation Limited be liable for any claims, losses, costs and damages of any nature whatsoever (including any consequential loss) that result from the use of, or the inability to use, these instructions. - Page 12 Cleaning the probes is a very easy task and prolongs the life of the probes. The Bluelab cleaning kits have it all there for you: pH cleaning and calibration kit: full colour instructions calibration solutions...
