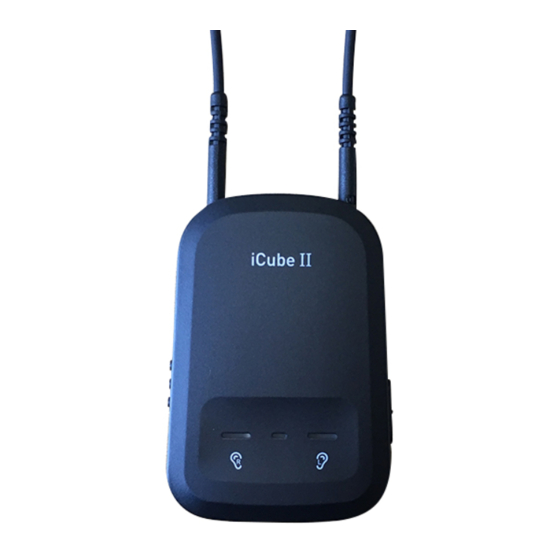

Phonak iCube II User Manual

Hide thumbs Also See for iCube II:
Table of Contents

Advertisement

Quick Links

See also: User Manual
iCube II
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iCube II and is the answer not in the manual?

Questions and answers

Related Manuals for Phonak iCube II

Summary of Contents for Phonak iCube II

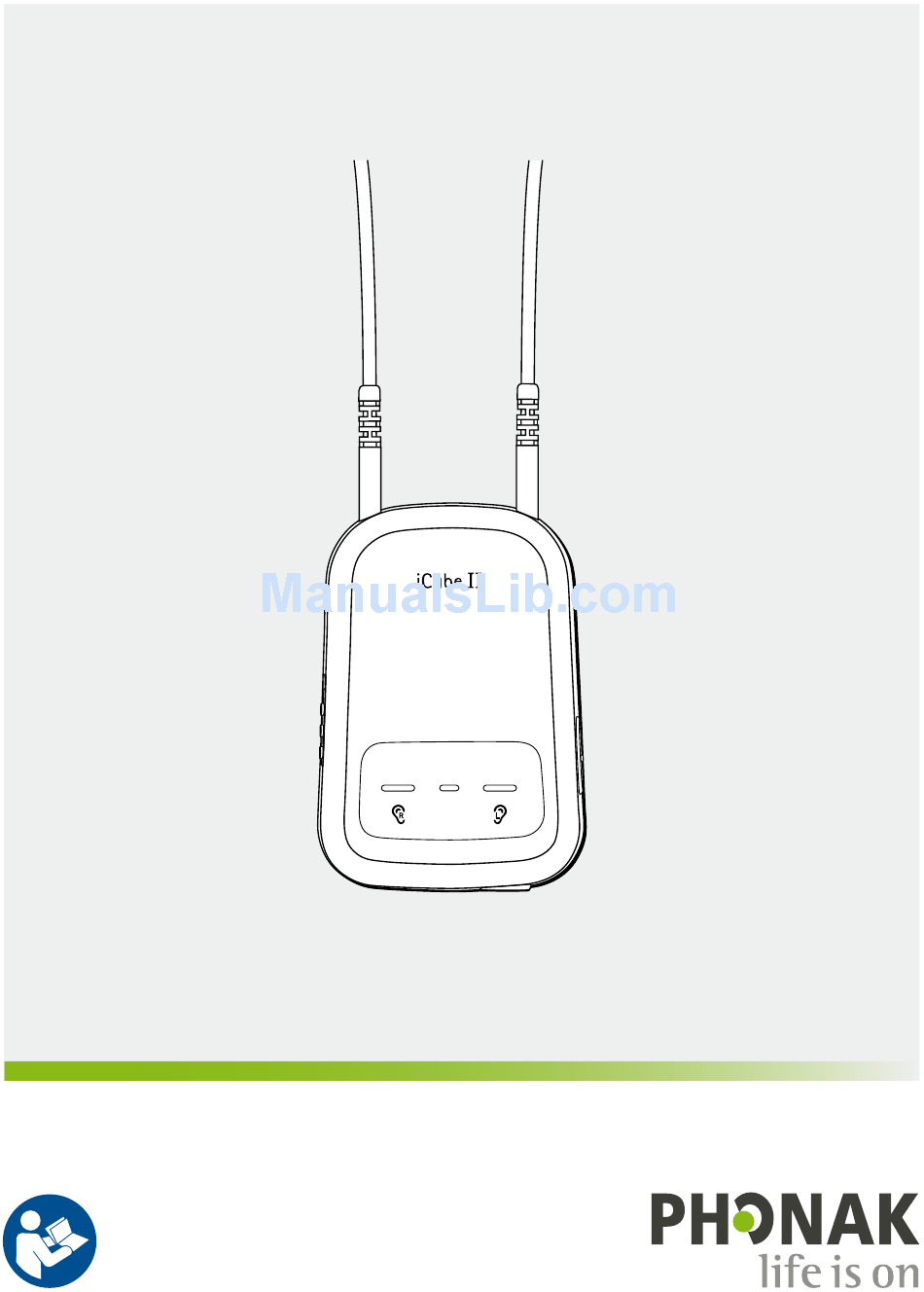

  • Page 1 II User Guide...

  • Page 2: Table Of Contents

    4. Getting started 4.1 Set up the power supply 4.2 Battery and Charging 4.3 Operating time 4.4 Switching iCube II On and Off 4.5 Target fitting software requirements 5. Connecting iCube II to your computer 5.1 Wireless connection setup 5.2 Connecting via USB cable 6.
  • Page 3 7. Indicator lights 7.1 Charging indication 7.2 On / off indication 7.3 Battery status indicaton 7.4 Fitting status indication 7.5 Pairing 7.6 Firmware update indication 7.7 Malfunction indication 8. Troubleshooting 9. Declaration of conformity 10. Service and Warranty 10.1 International warranty 10.2 Warranty limitation 11.

  • Page 4: Welcome

    1. Welcome iCube II is designed specifically for use by the hearing care professional and enables the wireless transfer of fitting data from the PC to the client’s hearing instruments. Please read this user guide carefully to benefit from all the features of the iCube II.

  • Page 5: Description

    2. Description Alternative rear neckloop opening Neckloop plugs Middle indicator light (battery and PC activity) Pairing On / Off button Right fitting Left fitting indicator light indicator light Mini USB charging input iCube II USB adapter...

  • Page 6: Icube Ii Accessories

    3. iCube II accessories J USB cable, 3 m (10 ft.) J iCube II desktop charger J USB hub Contents may vary depending on country. *available as an option...

  • Page 7: Getting Started

    4. Getting started 4.1 Set up the power supply Select the adapter that corresponds to your country. J Insert the top round end of the adapter into the round corner of the power supply. J Click the tail of the adapter in to lock it into place.

  • Page 8: Battery And Charging

    Place iCube II into the charging station as shown. It is recommended that you charge iCube II whenever it is not in use. This way it will be sufficiently charged and ready for the next fitting session.
  • Page 9 II charging station is available as an option Battery notes When charging your iCube II for the first time, leave it to charge for at least three hours (even if the battery indicator light changes to green color earlier).

  • Page 10: Operating Time

    Heavy use will reduce the operating time of your iCube II between battery recharges. Fully charged, your iCube II will operate for up to twelve hours. 4.4 Switching iCube II On and Off Slide the switch as shown to switch iCube II on or off.

  • Page 11: Connecting Icube Ii To Your Computer

    5.1 Wireless connection setup Automatic connection To connect iCube II with the fitting PC make sure that Phonak Target 4.0 or a higher version is installed. Plug the USB adapter in a free USB port on your fitting PC.

  • Page 12: Connecting Via Usb Cable

    5. Connecting iCube II to your computer Manual Connection For a manual pairing with a bluetooth capable PC, switch iCube II on and press the pairing button for 2 seconds to enable the pairing mode. To indicate the pairing mode, all indicators are rapidly blinking back and forth.

  • Page 13: Using Icube

    Before using iCube II, make sure the battery is sufficiently charged. If the battery indicator light is orange, please charge iCube II first. Make sure that iCube II is also selected and shown as the fitting device in the dashboard of Phonak Target. 6.1 Wearing iCube II...

  • Page 14: Detecting And Programming Hearing Instruments

    6. Using iCube II 6.2 Detecting and programming hearing instruments For a wireless fitting, the assignment of the left/right hearing aid is done in Phonak Target. Click the “Connect” button which is located on the dashboard. ((insert new screenshot)) Follow the instructions on the screen to assign (or reassign) each hearing instrument to the desired side (left or right).
  • Page 15 Choose either the settings from the hearing instruments ("HI") or create a new fitting. ((insert new screenshot))

  • Page 16: Programming Hearing Instruments Outside Of Ears

    6. Using iCube II 6.3 Programming hearing instruments outside of ears If you need to program hearing instruments outside of the client’s ears (e.g. to prepare the hearing instuments before a fitting session), make sure the hearing instruments are within the range of iCube II.

  • Page 17: Indicator Lights

    7. Indicator lights There are 3 indicator lights on iCube II for an easy indication of the battery and fitting status. 7.1 Charging indication Middle indicator iCube II is lit solid orange charging Middle indicator Charging is lit solid green complete 7.2 On / off indication...

  • Page 18: Battery Status Indicaton

    Battery full green Middle indicator flashing slowly Battery low orange Make sure to charge iCube II after the fitting session if the battery indicator light turns orange. 7.4 Fitting status indication Right fitting iCube II is indicator and programming...

  • Page 19: Pairing

    7.6 Firmware update indication All three indicators iCube II firmware flashing rapidly is updated Phonak Target will display a notification when a new firmware version for iCube II is available. 7.7 Malfunction indication Middle indicator Malfunction, lit solid red...

  • Page 20: Troubleshooting

    8. Troubleshooting Most probable cause Remedy iCube II is no longer recognized by the computer to which it was previously paired. J The iCube II USB adapter is J Plug in iCube II USB adapter. disconnected from the fitting computer.
  • Page 21 Most probable cause Remedy A second or different iCube II cannot be connected to the fitting PC. J If you use the USB receiver, J Only one iCube II can be paired with the fitting PC. press the pairing button on iCube II to connect it with your computer.

  • Page 22: Declaration Of Conformity

    9. Declaration of conformity Phonak AG, Laubisrütistrasse 28, CH-8712 Stäfa, Switzerland declares under its sole responsibility that the iCube II is in conformity with the following standards or other standardizing documents: Radio: EN 300-330 EN 300 328 EMC: EN 60601-1-2...

  • Page 23: Service And Warranty

    10. Service and Warranty 10.1 International warranty Phonak offers a one year limited international warranty, valid as of the date of purchase. This limited warranty covers manufacturing and material defects. The warranty only comes into force if proof of purchase is shown.

  • Page 24: Compliance Information

    11. Compliance information Declaration of conformity Hereby Phonak AG declares that this Phonak product is in compliance with the essential requirements of the Medical Devices Directive 93/42/EEC as well as the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC. The full text of the Declaration of Conformity...
  • Page 25 Notice 2: Changes or modifications made to this device not expressly approved by Phonak may void the FCC authorization to operate this device. Notice 3: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada.
  • Page 26 11. Compliance information J Connect the device into an outlet on a circuit different from that to which the receiver is connected. J Consult the dealer or an experienced radio / TV technician for help. Notice 4: Japanese Radio Law and Japanese Telecommunications Business Law Compliance.

  • Page 27: Information And Explanation Of Symbols

    7. Information and explanation of symbols With the CE symbol, Phonak AG confirms that this Phonak product meets the requirements of the Medical Devices Directive 93/42/EEC as well as the R&TTE Directive 1999/5/EC on radio and telecommunications equipment. CE mark applied 2014.
  • Page 28 7. Information and explanation of symbols This symbol indicates that it is important for the user to pay attention to the relevant warning notices in these user guides. Important information for handling and product safety. EMC and radio communications compliance label Australia. Operating The device is designed such that conditions...
  • Page 29 Keep dry Humidity transportation: up to 90% (non-condensing). Humidity storage: 0% to 70%, if not in use. Humidity operation: <95% (non condensing) Atmospheric pressure: 200 hPA to 1500 hPA. The symbol with the crossed-out garbage bin is to make you aware that this device may not be thrown away as normal household waste.
  • Page 30 7. Information and explanation of symbols The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Phonak is under license. Other trademarks and trade names are those of their respective owners.
  • Page 32 Manufacturer: Phonak AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland EU Representative: Phonak GmbH Max-Eyth-Strasse 20 DE-70736 Fellbach-Oeffingen Germany www.phonak.com...
