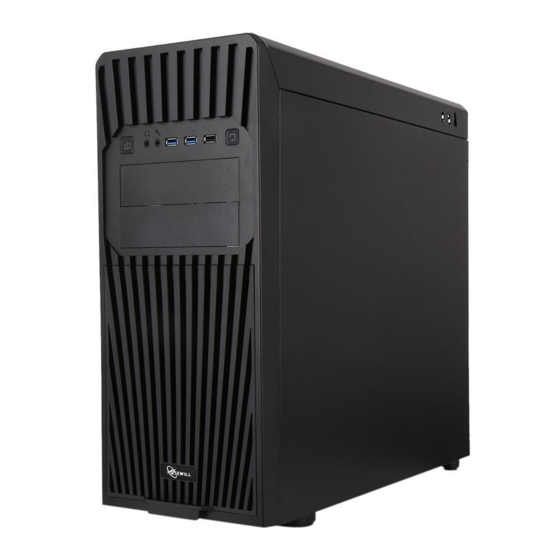

Rosewill Himars Quick User Manual

Gaming
Hide thumbs Also See for Himars:
Table of Contents

Advertisement

Quick Links

Download this manual
Gaming Case
Quick User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Himars and is the answer not in the manual?

Questions and answers

Related Manuals for Rosewill Himars

Summary of Contents for Rosewill Himars

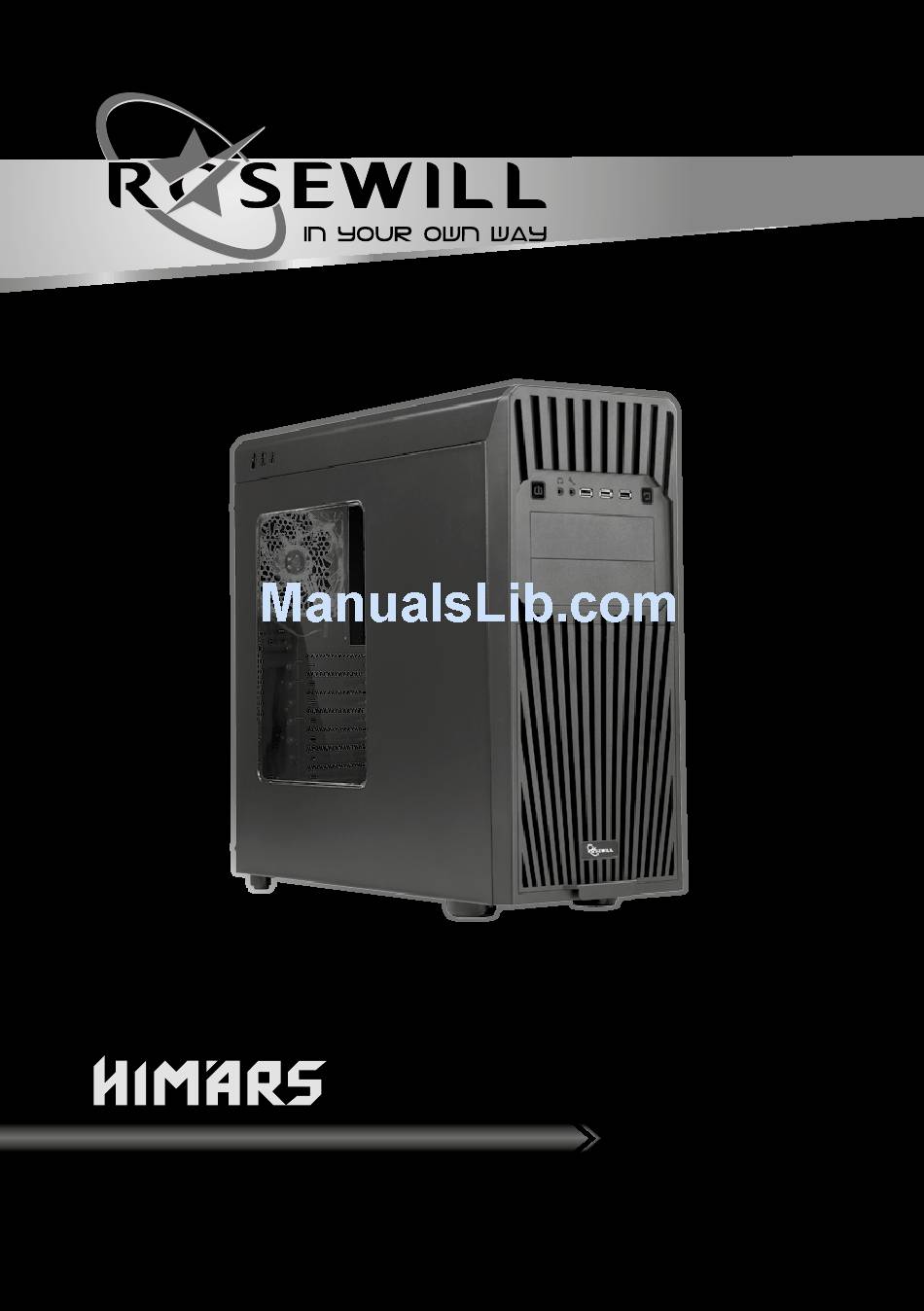

  • Page 1 Gaming Case Quick User Guide...

  • Page 3: Table Of Contents

    6. Install a 3.5” or 2.5” Drive ......09 7. Care ............... 11 8. Options ............12 • Specifications Table ........... 13 Thank you for purchasing a Rosewill Computer Case Please read the instruction manual before using and retain it for your future reference.

  • Page 4: Product Overview

    Gaming Case HIMARS Quick User Guide Product Overview Product Diagram (Components vary by country) Panel R 120mm Fan Panel L Front Panel Dust Filter HDD Door HDD Tray Front I/O Pin-out USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD AUDIO CONNECTOR...

  • Page 5: Front I/O Diagram

    Gaming Case HIMARS Quick User Guide Front I/O Diagram HD Audio Power Button USB 3.0 USB 2.0 Reset Button In / Out Accessory Kit Image Part Name Function/Component Screw-A Screw-B Motherboard/ 3.5' HDD Screw-C 2.5” HDD/SSD Screw-D Screw-E Standoff Motherboard...

  • Page 6: Installation Guide

    Gaming Case HIMARS Quick User Guide Installation Guide 1. Open the Unit 1-1. Remove the thumbscrews and slide out panels R and L (Figure 1).

  • Page 7: Install The Power Supply

    Gaming Case HIMARS Quick User Guide 2. Install the Power Supply 2-1. Seat the power supply unit (PSU) in the bottom-rear of the case and secure with Screw-A (Figure 2). 3. Install the Motherboard 3-1. Line up the standoffs with the screw holes on the motherboard (Figure 3a).

  • Page 8: Install The Add-On Card

    Gaming Case HIMARS Quick User Guide 3-2. Secure the motherboard down with Screw-B (Figure 3b). 4. Install the Add-on Card 4-1. Untwist the screws and remove the slot cover (Figure 4a).

  • Page 9: Install An External 5.25" Device

    Gaming Case HIMARS Quick User Guide 4-2. Install the add-on card and secure with the screws (Figure 4b). 5. Install an External 5.25” Device 5-1. Remove the front panel (Figure 5a).
  • Page 10 Gaming Case HIMARS Quick User Guide 5-2. Remove the 5.25” bay cover from the chassis (Figure 5b). 5-3. Insert the 5.25” drive and push it back into the case. Make sure it’s secured (Figure 5c).

  • Page 11: Install A 3.5" Or 2.5" Drive

    Gaming Case HIMARS Quick User Guide 6. Install a 3.5” or 2.5” Drive 6-1. Pull to remove the HDD cover from the front panel (Figure 6a), and open the HDD Cage (Figure 6b). 6-2. Plug in the SATA power connectors and SATA interface connectors.
  • Page 12 Gaming Case HIMARS Quick User Guide 6-3. Pull out the HDD trays from the cage. Remove the SSD tray from the back of the case. (Figure 6c & 6d). 6-4. 3.5” Drives: Install a 3.5” HDD onto 2.5” Drives: Screw a 2.5” SSD/HDD onto the tray, and secure with Screw-B if the tray with Screw-C (Figure 6f).

  • Page 13: Care

    Gaming Case HIMARS Quick User Guide 7. Care To prevent damage, keep all panels closed and secured. 7-1. Slide the side panels back into place and secure with thumbscrews (Figure 7).

  • Page 14: Options

    Specifications Table for options. 8-2. Liquid-Cooling Radiator Installation The HIMARS gives you the option of installing a 360 mm radiator on top to more effectively cool high-performance systems: a. Secure the fans and water-cooling radiator on top with screws (Figure 8a).

  • Page 15: Specifications Table

    Gaming Case HIMARS Quick User Guide Specifications Table Model Model Name HIMARS Features Type Mid Tower Color Black Case Material Steel/Plastic Power Supply Included Motherboard Compatibility Micro-ATX, ATX Side Panel Window Expansion External 5.25" Drive Bays Internal 3.5" Drive Bays 4 (0) Internal 2.5"...
  • Page 16 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a quality Rosewill product. Please register your product at : www.rosewill.com for complete warranty information and support for your product. HIMARS_B...
