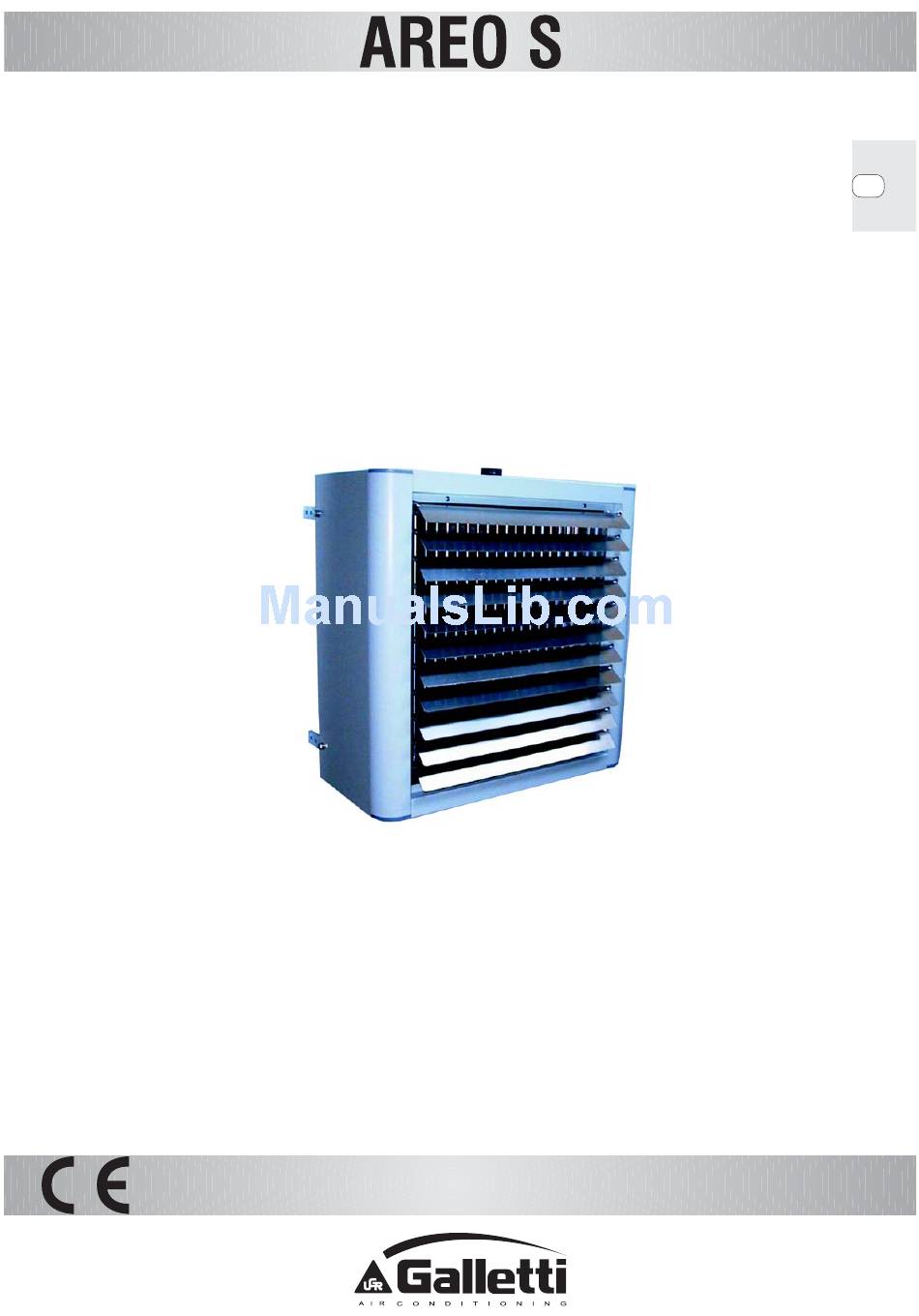

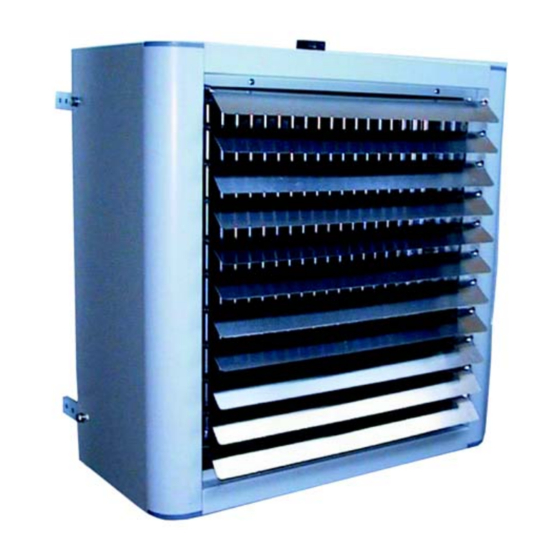

- Page 1 fan heater for steam operation TECHNICAL MANUAL V E N T I L C O N V E T T O R I FAN COIL UNITS...
-
Page 2: Table Of Contents
AREO S INDEX UNIT DESCRIPTION ................. 2 OPERATING LIMITS CONSTRUCTIVE FEATURES ............. 2 thermal carrier fluid AVAILABLE OPTIONS ............... 2 max steam pressure: 10 bar RATED TECHNICAL DATA ..............3 max steam temperature: 180°C Air inlet temperature: -10°C to +40°C SOUND LEVELS ................ -
Page 3: Rated Technical Data
Max Installation Sound Weight Model Speed Flow Capacity Flow Temperature Height Power °C dB A 1150 12,00 51,0 AREO S 12 19,4 8,92 57,9 2600 24,50 48,0 AREO S 22 25,1 1650 18,80 53,9 4250 39,28 47,5 AREO S 32... -
Page 4: Heating Capacity
°C kg/h °C kg/h °C kg/h °C 1400 1150 12,4 29,9 11,1 37,8 10,5 41,6 45,5 49,2 AREO S 12 36,6 44,0 47,5 51,1 54,6 1400 2600 25,3 27,0 22,7 35,1 21,4 39,1 20,1 43,0 18,8 46,9 AREO S 22... -
Page 5: Heating Capacity
°C kg/h °C kg/h °C kg/h °C 1400 1150 16,20 39,0 14,89 47,2 14,25 51,2 13,60 55,1 12,96 59,1 AREO S 12 12,08 47,8 11,09 55,5 10,60 59,2 10,11 62,9 9,62 66,6 1400 2600 33,05 35,2 30,40 43,6 29,08 47,7... - Page 6 °C kg/h °C kg/h °C kg/h °C 1400 1150 21,27 51,2 19,94 59,7 19,27 63,9 18,61 68,1 17,96 72,2 AREO S 12 15,86 62,7 14,84 70,8 14,33 74,7 13,84 78,7 13,33 82,6 1400 2600 43,39 46,2 40,69 54,9 39,34 59,2...
-
Page 7: Height Of Installation
6 poles, 900 rpm maximum installation height maximum installation height throw distance floor influence area floor influence area floor influence area AREO S 12 AREO S 12 AREO S 22 11,0 AREO S 22 AREO S 32 15,5 AREO S 32... -
Page 8: Overall Dimensions
A (mm) B (mm) C (mm) E (mm) G (mm) Model air inlet hole in the wall AREO S 12 AYPAE1 AREO S 12 392 X 392 400 x 400 AREO S 22 AYPAE2 AREO S 22 492 x 492... -
Page 9: Electrical Data
Number Power Current Voltage Model of poles Revolution Imput Absorbed AREO S 12 1400 / 900 67 / 46 0,209 / 0,118 AREO S 22 1400 / 900 277 / 172 0,61 / 0,32 AREO S 32 1400 / 900... -
Page 10: Accessories
AREO S ACCESSORIES TA - Wall mounted room thermostat DFO - Adjustable wall/column mounting Automatic regulation of the the room temperature: board - only in the heating mode working on the fan motor The DFO option (made in steel of adequate assembly;... - Page 11 AREO S AP66000271 - 01 All copying, even partial, of this manual is strictly forbidden...
