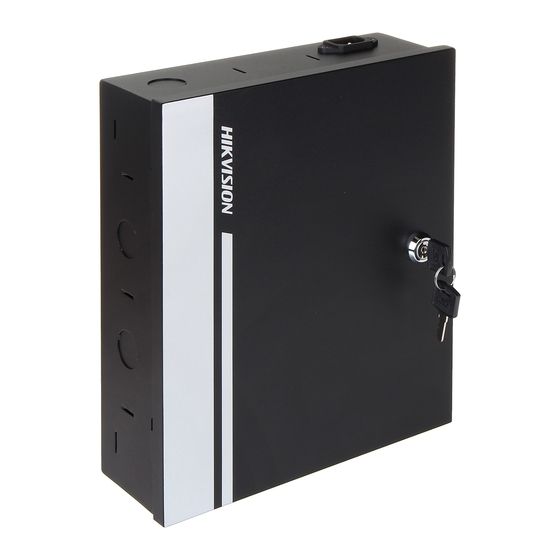

HIKVISION DS-K2802 Quick Start Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. IP Access Controllers
  5. DS-K2802
  6. Quick start manual

HIKVISION DS-K2802 Quick Start Manual

Ds-k2800 series
Hide thumbs Also See for DS-K2802:
Table of Contents

Advertisement

Quick Links

See also: User Manual
DS-K2800 Series
Access Controller
Quick Start Guide
UD.6L0206D1184A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K2802 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K2802

Summary of Contents for HIKVISION DS-K2802

  • Page 1 DS-K2800 Series Access Controller Quick Start Guide UD.6L0206D1184A01...
  • Page 2 (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
  • Page 3 AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 4 DS-K2800 Serial Access Controller Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 DS-K2800 Serial Access Controller 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 DS-K2800 Serial Access Controller Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Keep all liquids away from the device. • Ensure environmental conditions meet factory specifications.
  • Page 7 DS-K2800 Serial Access Controller To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture. This installation should be made by a qualified service person and should conform to all the local codes. If the product does not work properly, please contact your dealer or the nearest service center.

  • Page 8: Table Of Contents

    DS-K2800 Serial Access Controller Table of Contents CHAPTER 1 PRODUCT DESCRIPTION ..............2 ....................... 2 VERVIEW ..................2 RODUCT UNCTION CHAPTER 2 APPEARANCE ................. 4 CHAPTER 3 TERMINAL CONNECTION ............... 6 DS-K2801T ..............6 ERMINAL ESCRIPTION DS-K2802T ..............8 ERMINAL ESCRIPTION DS-K2804 T ..............

  • Page 9: Chapter 1 Product Description

    DS-K2800 Serial Access Controller Chapter 1 Product Description 1.1 Overview DS-K2800 is a powerful and stable access controller, using the logical architecture design. DS-K2800 is designed with TCP/IP network interface and its signal processed with special encryption and can be run offline. Anti-tampering function is also supported. 1.2 Product Function ...
  • Page 10 DS-K2800 Serial Access Controller  Data can be permanently saved after the access controller is powered off.  Supports I/O linkage, and event linkage  Supports alarm of offline event exceeding 90%...

  • Page 11: Chapter 2 Appearance

    Take DS-K2804 as an example, the component schematic diagram is shown below. Figure 2-1 DS-K2804 Component Schematic Diagram DS-K2800 Component Description Table 2-1 Component Description DS-K2801 DS-K2802 DS-K2804 Door Lock 1 Door Lock 1/2 Door Lock 1/2/3/4 Indicator Indicator Indicator...
  • Page 12 DS-K2800 Serial Access Controller Component Description Jumper Cap for Restoring Factory Settings Working Indicator Alarm Output Indicator Alarm Output (NO/NC) Jumper Cap...

  • Page 13: Chapter 3 Terminal Connection

    DS-K2800 Serial Access Controller Chapter 3 Terminal Connection 3.1 DS-K2801Terminal Description Figure 3-1 DS-K2801 Terminals...
  • Page 14 DS-K2800 Serial Access Controller Table 3-1 DS-K2801 Terminal Description DS-K2801 DC12V Grounding Power +12V DC12V Input Door Lock Relay Output Door BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Alarm Output Alarm Relay Output (Dry Contact) NO/NC Grounding Alarm Input Alarm Input Indicator of Card Reader Control Output (Valid Card Output)

  • Page 15: Ds-K2802Terminal Description

    DS-K2800 Serial Access Controller DS-K2801 Wiegand Head Read Data Input Data0 Card Reader Power Output 3.2 DS-K2802Terminal Description Figure 3-2 DS-K2802 Terminal Description Table 3-2 DS-K2802 Port Description DS-K2802 Alarm Input 2 Alarm Input Grounding...
  • Page 16 DS-K2800 Serial Access Controller DS-K2802 Alarm Input 1 Door Lock Relay Output (Dry Contact) Door 2 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Door Lock Relay Output (Dry Contact) Door 1 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector...
  • Page 17 DS-K2800 Serial Access Controller DS-K2802 Output (Valid Card Output) Indicator of Card Reader Control Output (Invalid Card Output) Card Reader Buzzer Control Output Wiegand Head Read Data Input Data1 Wiegand Head Read Data Input Data0 Card Reader Power Output Indicator of Card Reader Control...

  • Page 18: Ds-K2804 Terminal Description

    DS-K2800 Serial Access Controller 3.3 DS-K2804 Terminal Description Figure 3-3 DS-K2804 Access Controller Terminals Table 3-3 DS-K2804 Port Description DS-K2804 Alarm Input 4 Grounding Alarm Input 3 Alarm Input Alarm Input 2 Grounding Alarm Input 1...
  • Page 19 DS-K2800 Serial Access Controller DS-K2804 Door Lock Relay Output (Dry Contact) Door 4 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Door Lock Relay Output (Dry Contact) Door 3 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Door Lock Relay Output (Dry Contact) Door 2 BUTTON Door Button Input...
  • Page 20 DS-K2800 Serial Access Controller DS-K2804 Wiegand Head Read Data Input Data1 Wiegand Head Read Data Input Data0 Card Reader Power Output Indicator of Card Reader Control Output (Valid Card Output) Indicator of Card Reader Control Output (Invalid Card Output) Card Reader Buzzer Control Output Wiegand Card Reader 2 Wiegand Head Read Data Input Data1 Wiegand Head Read Data Input Data0...
  • Page 21 DS-K2800 Serial Access Controller DS-K2804 Card Reader Power Output DC12V Grounding Power +12V DC12V Input COM4 Alarm Output 4 Alarm Relay Output 4 (Dry Contact) NO/NC4 COM3 Alarm Output 3 Alarm Relay Output 3 (Dry Contact) NO/NC3 COM2 Alarm Output 2 Alarm Relay Output 2 (Dry Contact) NO/NC2 COM1...

  • Page 22: Chapter 4 External Device Wiring

    DS-K2800 Serial Access Controller Chapter 4 External Device Wiring 4.1 Card Reader Wiring Controller Card Reader Figure 4-1 Wiring diagram of Wiegand card reader Note: You must connect the OK/ERR/BZ, if using access controller to control the LED and buzzer of the Wiegand card reader. For 1800 series card reader, the wiring diagram is shown below.

  • Page 23: Installing Door Lock

    DS-K2800 Serial Access Controller 4.2 Installing Door Lock 4.2.1 Installation of Cathode Lock Figure 4-3 Wiring diagram of cathode lock 4.2.2 Installation of Anode Lock Figure 4-4 Wiring diagram of anode lock...

  • Page 24: Connecting The External Alarm Device

    DS-K2800 Serial Access Controller 4.3 Connecting the External Alarm Device Figure 4-5 External Alarm Device Connection 4.4 Door Button Wiring Diagram Figure 4-6 Power Button Connection...

  • Page 25: The Connection Of Magnetics Detection

    DS-K2800 Serial Access Controller 4.5 The Connection of Magnetics Detection Figure 4-7 Magnetics Connection 4.6 Connecting Power Supply Figure 4-8 Power Supply Connection...

  • Page 26: Chapter 5 Settings

    DS-K2800 Serial Access Controller Chapter 5 Settings 5.1 Initializing the Hardware Steps: The jumper cap jumps from Normal to Initial. Disconnect the power and restart the access controller, the controller buzzer buzzes a long warning. After the buzzer stops, jump the jumper cap back to Normal. Disconnect the power and restart the access controller.

  • Page 27: Alarm Relay Output Status

    DS-K2800 Serial Access Controller Figure 5-2 Normally Open Status Lock Relay Normally Closed Status Figure 5-3 Normally Closed Status 5.2.2 Alarm Relay Output Status Alarm Relay Output Normally Open...
  • Page 28 DS-K2800 Serial Access Controller Figure 5-4 Alarm Relay Output Normally Open Alarm Relay Output Normally Closed Figure 5-5 Normally Closed Status Work Flow of Software For detailed information, please see the user manual of the client software. Refer to the following work flow:...
  • Page 29 DS-K2800 Serial Access Controller Figure 5-6 Software Client Work Flow...

  • Page 30: Activating The Control Panel

    DS-K2800 Serial Access Controller Chapter 6 Activating the Control Panel Purpose: You are required to activate the control panel first before you can use the control panel. Activation via SADP, and Activation via client software are supported. 6.1 Activation via SADP Software SADP software is used for detecting the online device, activating the device, and resetting the password.
  • Page 31 DS-K2800 Serial Access Controller 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 32: Activation Via Client Software

    DS-K2800 Serial Access Controller 5. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. 6. Input the password and click the Save button to activate your IP address modification.
  • Page 33 DS-K2800 Serial Access Controller shown in the figure below. Click the icon on the upper-left side of the page, select Access Control to enter the control panel. Click the Controller Management icon to enter the Controller Management interface, as shown in the figure below.
  • Page 34 DS-K2800 Serial Access Controller Check the device status from the device list, and select an inactive device. Click the Activate button to pop up the Activation interface. Create a password and input the password in the password field, and confirm the password.
  • Page 35 DS-K2800 Serial Access Controller STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 36 DS-K2800 Serial Access Controller...
