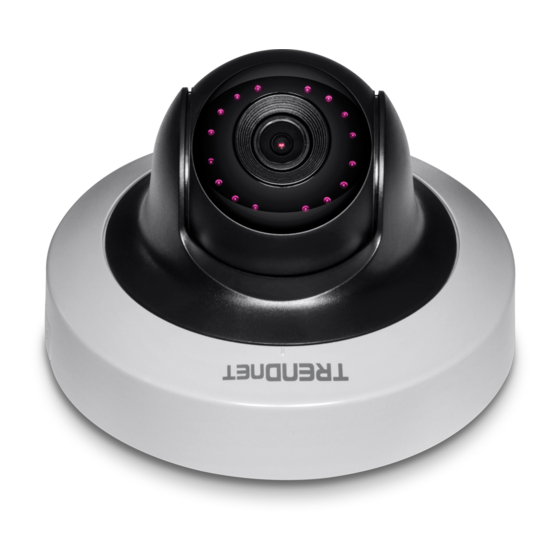

- Page 1 Quick Installation Guide TV-IP410PI (V1)
-
Page 2: Table Of Content
Table of Content 1 English 1. Before You Start 2. Hardware Installation and Configuration... -
Page 3: Before You Start
Ÿ Wired network Ÿ Network cable Ÿ Note: The TV-IP410PI only works with Power over Ethernet (PoE) devices that follow the IEEE 802.3af standard. Free Mobile App: TRENDnet IPView Requirements Supported Operating Systems Android (version 4.4 or above) iOS (version 8.2 or above) -
Page 4: Hardware Installation And Configuration
2. Hardware Installation and Configuration Note: You can also download the utility at http://www.trendnet.com/camerautility 1. Do not install or mount the IP camera until after you complete the installation steps below. Temporarily place the IP camera next to your computer. - Page 5 4 Run the utility and you will see your camera is set to Inactive under security. 5. After the utility is done scanning. Click on the IP address section of the camera you would like to access. 6. Once you get to the login page you will be prompted to change the password. Please follow the password requirements and enter your new password.
- Page 6 9. Scan the QR code below to download a free mobile app to view the camera from your IOS or Android device. Please refer to the quick install guide for instructions on how to setup your camera in the app from your cameras download page at www.TRENDnet.com. Android...
- Page 7 10. Install the camera in your desired location. To connect the IP camera to your network with PoE, please use either of the following examples: Using the TV-IP410PI with a PoE switch (TPE-S80) TV-IP410PI Power Internet Switch Non-PoE Connect the provided network cable from the Power over Ethernet switch (e.g. TPE-S80) to Ÿ...
- Page 8 Non-PoE Connect the power adapter to the TPE-113GI and then to a power outlet. Ÿ Connect a network cable from the TV-IP410PI to the TPE-113GI's PWR+DATA OUT (PoE) Ÿ port. Connect a network cable from a switch or router (e.g. TEW-818DRU) to the TPE-113GI's Ÿ...
- Page 9 Mounting the camera Note: Before mounting the camera, the lens must be manually positioned and focused. Ÿ For tips on capturing appropriate camera viewing angle, please refer to the user's guide. Ÿ 1. Loosen the adjustable nut and manually position the camera as desired. 2.
- Page 10 Product Name: Indoor 2MP 1080p WDR Mini Pan/Tilt PoE IR Network Camera Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 55022:2010 CLASS B...
- Page 11 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
