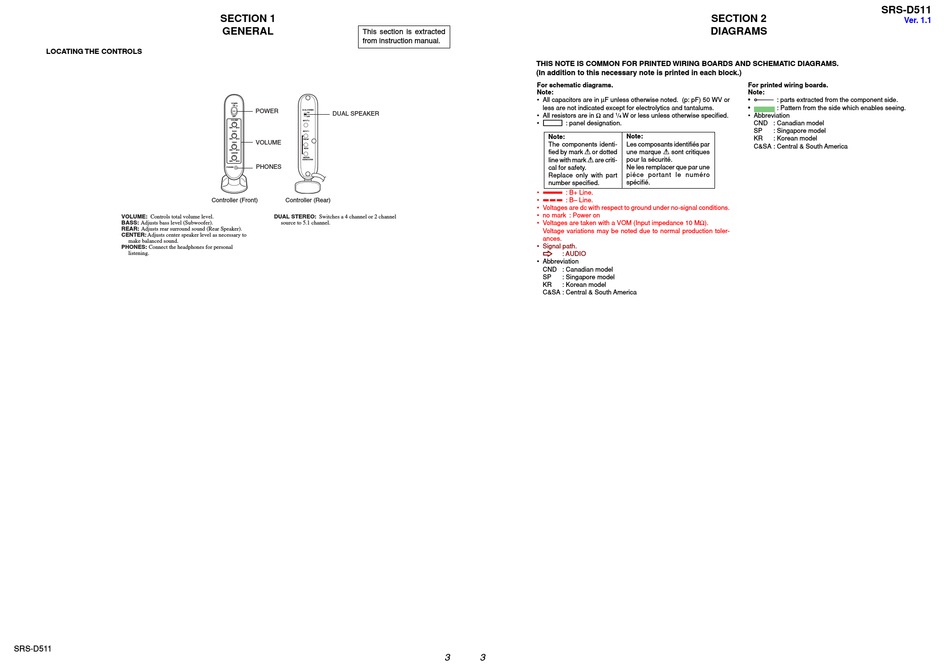

LOCATING THE CONTROLS
VOLUME: Controls total volume level.
BASS: Adjusts bass level (Subwoofer).
REAR: Adjusts rear surround sound (Rear Speaker).
CENTER: Adjusts center speaker level as necessary to
make balanced sound.
PHONES: Connect the headphones for personal
listening.
SRS-D511
SECTION 1

GENERAL

This section is extracted
from instruction manual.
POWER
ON
POWER DUAL STEREO
DUAL SPEAKER
ON
OFF OFF
VOLUME INPUT 2
MIN MAX
BASS INPUT 1
MIN MAX FRONT
VOLUME
REAR
REAR
MIN MAX
CENTER
CENTER
SUBWOOFER
MIN MAX
PHONES
PHONES
Controller (Front) Controller (Rear)
DUAL STEREO: Switches a 4 channel or 2 channel
source to 5.1 channel.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in each block.)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or
less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and
1 / W or less unless otherwise specified.
4
• C : panel designation.
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
• A : B+ Line.
• B : B– Line.
• Voltages are dc with respect to ground under no-signal conditions.
• no mark : Power on
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production toler-
ances.
• Signal path.
F : AUDIO
• Abbreviation
CND : Canadian model
SP : Singapore model
KR : Korean model
C&SA : Central & South America
3 3
SECTION 2

DIAGRAMS

For printed wiring boards.
Note:
• X : parts extracted from the component side.
•
: Pattern from the side which enables seeing.
• Abbreviation
CND : Canadian model
SP : Singapore model
Note:
KR : Korean model
Les composants identifiés par
C&SA : Central & South America
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
SRS-D511
Ver. 1.1
