Active Speaker System
Operating Instructions
Manual de instrucciones
SRS-D5100
2004 Sony Corporation
Printed in China
Owner's Record
The model number and the serial number are located on the rear of the
subwoofer.
Record the model number and the serial number in the space provided below.
Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. SRS-D5100
Serial No.

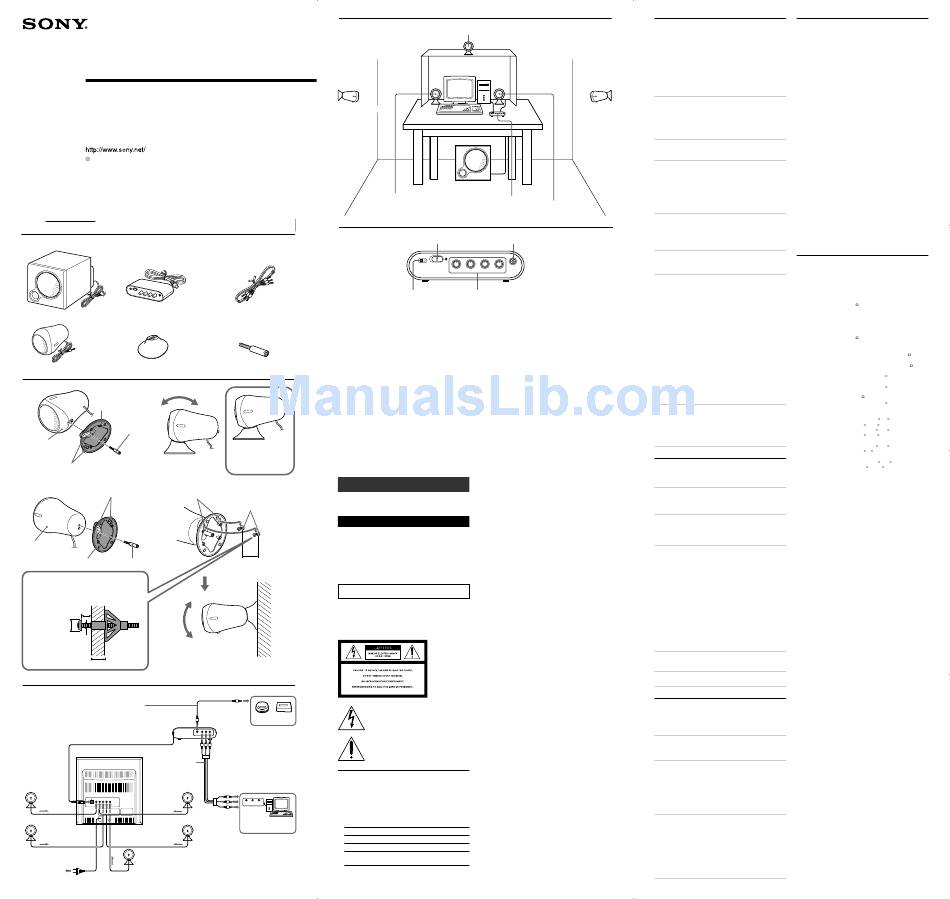

Package Contents
Subwoofer (1)
Control box (1)
Satellite speaker (5)
Base (5)
A
A
Base
,
Screw
Satellite speaker
Attach the base with the
anchor holes facing forward
Attach the base with the
B
anchor holes uppermost
Anchor holes
,
Satellite speaker
Base
Screw
Note
First, be sure to apply a bond (anaerobic
threadlocking material) to the hollow wall
anchor to prevent the screw loosening.
5 mm
7 mm
ø 4 mm
Note
9.5 mm or more
Do not hang on the satellite speaker or hang
anything on it.
B
Connecting cord
(not supplied)
to INPUT2 jack
Control Box
(rear)
to 8-pin Din jack
Connecting Cable
(for 5.1 channel
signal input)
Satellite speaker
(supplied)
(rear)
to Front R jack
to Front L jack
Subwoofer (rear)
to Rear L jack
to Rear R jack
to Center jack
to wall outlet
3-264-408-11(1)
C
Rear speaker (Left)
Front speaker (Left)
D
Connecting Cable (for 5.1
VOLUME: Controls total volume level.
channel signal input) (1)
BASS: Adjusts bass level (Subwoofer)
REAR: Adjusts rear surround sound (Rear Speaker)
CENTER: Adjusts center speaker level as necessary to
make balanced sound
PHONE: Connect to headphones for personal listening
In this case, only the front L/R channel signals will
be useful. The CENTER channel is not activated. You
cannot use the BASS, REAR or CENTER volume dial.
Screw (5)
The speaker angle can
This system needs either a sound card (5.1
be changed by
channel) for PC or a decoder box. They are
attaching the base
not supplied with this system.
back to front.
English
Hollow wall anchors
Before operating the unit, please read this manual
(ø 4 mm, not supplied)
thoroughly and retain it for future reference.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
40 mm
Do not place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
CAUTION
You are cautioned that any changes or modification not
expressly approved in this manual could void your
authority to operate this equipment.
NOTICE FOR THE CUSTOMERS IN THE USA
to LINE OUT or
This symbol is intended to alert the user to
headphones jack
the presence of uninsulated "dangerous
(stereo mini-jack)
voltage" within the product's enclosure
CD/MD Walkman*, etc
that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol is intended to alert the user to
to INPUT1 jack (Green to front,
the presence of important operating and
Orange to center, and Black to rear
maintenance (servicing) instructions in the
channel)
literature accompanying the appliance.
to LINE OUT jack (Green to

Precautions

front, Orange to center, and
Black to rear channel)

On safety

The nameplate indicating operating voltage, power
FRONT REAR CENTER/
consumption, etc., is located on the rear exterior.
WOOFER
• Before operating the system, be sure that the
operating voltage of the system is identical with that
Line out of sound
of your local power supply.
card or sound box
Where purchased
U.S.A./Canada
European countries
Other countries
* "WALKMAN" is a registered
trademark of Sony Corporation to
represent Headphone Stereo products.
Center speaker
PC, CD or MD
Walkman, etc.
Subwoofer
Control box
Front speaker (Right)
POWER
PHONES
OFF
ON
OFF
ON
Dual Stereo
POWER
Control box
PHONE
MIN
MAX
VOLUME
BASS
REAR
CENTER
DUAL STEREO
VOLUME
DUAL STEREO: Switches a 4 channel or 2 channel
source to 5.1 channel.
Set the switch to ON when a 4-channel or 2-channel
source is output from a PC, Walkman, etc., connected
to this system. The front and rear speakers will be
output the front channel of these sources. The center
speaker will be output the mixed left and right front
channels of these sources. In this case, the subwoofer,
center and rear speakers will not operate with a 5.1-
channel source.
Set the switch to OFF when a 5.1-channel source is
output from a PC or sound card connected to this
system. 5.1-channel surround sound will be output.
In this case, the subwoofer rear and center speakers
will not operate with a 2-channel source, and the
center speaker and subwoofer will not operate with a
4-channel source. For details about the sound card
setting, refer to the operating instructions of the
sound card.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
• Unplug the system from the wall outlet if it is not to
be used for an extended period of time. To disconnect
the cord, pull the cord by grasping the plug. Never
pull the cord itself.
• Should any liquid or solid object fall into the system,
unplug the system's power cord and have the system
checked by qualified personnel before operating it
any further.
• The AC power cord should be changed only at a
qualified service shop.
• For efficient heat dissipation, ensure there is sufficient
space to the rear of the subwoofer. Also, avoid
placing objects on the unit.
• Do not insert your hand or any objects into the hole of
the subwoofer.

On operation

• Do not drive the speaker system with a continuous
wattage exceeding the maximum input power of the
system.
• Before connecting, turn off the speaker system, the
PC and audio component to avoid damaging the
speaker system.
• The volume level should not be turned up to the
point of distortion.
• Although this system is magnetically shielded, do not
leave recorded tapes, watches, personal credit cards
or floppy disks using magnetic coding in front of the
system for an extended period of time.
If the TV picture or monitor display is
magnetically distorted
Although this system is magnetically shielded, there may
be cases that the picture on some TV sets/personal
computers may become magnetically distorted. In such a
case, turn off the power of the TV set/personal computer
once, and after 15 to 30 minutes turn it on again. In the
case of a personal computer, take appropriate measures,
such as data storage, before turning it off.
When there seems to be no improvement, locate the
system farther away from the TV set/personal
computer. Furthermore, be sure not to place objects in
which magnets are attached or used near the TV set/
personal computer, such as audio racks, TV stands, toys
etc. These may cause magnetic distortion to the picture
due to their interaction with the system.

On placement

• Do not set the speakers in an inclined position.
• Do not leave the system in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, moisture, rain or mechanical shock.
• Do not install the satellite speaker anywhere other
than on a wall.
• Do not hang on the satellite speaker or hang anything
on it.

On cleaning

Do not use alcohol, benzene, or thinner to clean the
cabinet.
Operating voltage
120 V AC, 60 Hz
If you have any questions or problems concerning your
220 – 230 V AC, 50 Hz
speaker system, please consult your nearest Sony
dealer.
• 110 – 120 V AC, 50/60 Hz
• 220 – 230 V AC, 50 Hz

Installing the satellite speakers

(See fig. A)
Use the supplied screws to attach the base to the
satellite speaker. The satellite speaker can be used either
placed on a desk or attached to a wall.
When you use the satellite speaker on a desk
(See fig. A-A)
By attaching the base to the satellite speaker, it can be
placed on a desk.
1
Match the hole of the base and the
Rear speaker
bottom hole of the satellite speaker.
(Right)
Attach the base with the anchor holes facing
forward.
The base allows you to adjust the satellite speaker
to the desired angle.
2
Ensure the screws are tight.
Tighten the screw with your finger. If it is difficult,
use a screwdriver to secure the screw.
When you use the satellite speaker attached
to a wall (See fig. A-B)
By attaching the base to the satellite speaker, it can be
attached to a wall. Follow the Notes (below) to install
safely. Improper installation may result in the speaker
falling and causing bodily injury or damage to the
speaker or other object.
1
Align the hole in the base with the hole
at the rear of the satellite speaker.
Attach the base with the anchor holes uppermost.
The base allows you to adjust the satellite speaker
to the desired angle.
2
Ensure the screws are tight.
Tighten the screw with your finger. If it is difficult,
use a screwdriver to secure the screw.
3
Secure the hollow wall anchor in the wall
— refer to the illustration.
Notes
• Confirm wall thickness is sufficient. A
minimum thickness of 9.5 mm is recommended
for plasterboard.
• Use the specified clamp (hollow wall anchor,
not supplied) when attaching to plasterboard.
• Refer to the supplied operating instructions
using a hollow wall anchor.
• Use wall anchors of at least 20 kg hanging
capacity.
• Refer to the instruction supplied with hollow
wall anchor.
• Requires ø 4 mm hollow wall anchor.
• Set up the head of a hollow wall anchor 5 mm
from the wall.
• Apply a bond (anaerobic threadlocking
material) to the hollow wall anchor to prevent
the screw loosening.
4
Attach the satellite speaker to the wall.
Insert both wall anchors in the anchor holes of the
satellite speaker base.
Note
Ensure that the satellite speaker is securely
attached to the wall before use.

Hooking up the system

(See fig. B)
1
Connect the cord of the control box to
the 8-pin Din jack of the subwoofer with
their respective arrows aligned.
2
Connect the satellite speakers to the
subwoofer.
Confirm the location of the satellite speakers, and
then connect to their respective jacks.
3
Connect the control box to the source
equipment.
– Line out of sound card or sound box:
Connect the INPUT1 jacks (FRONT, REAR, and
CENTER/WOOFER) of the control box and the
jacks of the sound card with the supplied
connecting cord. For details, refer to the operating
instructions of the sound card.
– CD/MD Walkman, etc.:
Connect the INPUT2 jack of the control box and
LINE OUT or headphones jack of a CD/MD
Walkman, etc. The connecting cord is not supplied
with this system.
Note
To switch INPUT1 and INPUT2, use ON/OFF of
the device connected to the control box.
4
Connect the subwoofer to the wall
outlet.
5
Position the speakers. (See fig. C)

Listening to the sound

(See fig. D)
First, turn down the volume on the control box. The
volume should be set to minimum before you begin
playing the programme source.
1
Set the POWER switch to ON on the
control box.
The POWER indicator lights up.
2
Adjust the VOLUME control on the
control box.
You can adjust the volume of the subwoofer and
each satellite speaker.
When connecting to the headphone output, also
adjust the volume of the connected component.
After listening, set the POWER switch to OFF.
The POWER indicator goes off.
3
Using headphones/earphones.
Connect headphones/earphones to the PHONES
jack on the control box.
Notes
• Turn off the MEGA BASS or BASS BOOST
(Walkman, etc.) function as it may cause audible
distortion.
• Only the front L/R channel signals will be
useful. You cannot use the BASS, REAR or
CENTER volume dial.

Troubleshooting

Should you encounter a problem with your speaker
system, check the following list and take the indicated
measures. If the problem persists, consult your nearest
Sony dealer.
There is no sound from the speaker system.
• Make sure all the connections have been correctly
made.
• Make sure the VOLUME dial and the each speaker's
volume dial (BASS, REAR, CENTER) on the control
box.
• Make sure the connected component has been turned
up properly.
• Check if headphones are connected. If they are,
disconnect them.
The sound is distorted.
• Turn down the volume level on the connected
component. Or, if the connected component has a
BASS BOOST function, set it to off.
• Rotate BASS on this unit to reduce the bass volume.
• Turn VOLUME on this unit down to reduce the
volume.
There is hum or noise in the speaker output.
• Make sure all the connections have been correctly
made.
• Make sure none of the audio components are
positioned too close to the TV set.
The sound has suddenly stopped.
Make sure all the connections have been correctly made.
The brightness of the POWER indicator is
unstable.
The brightness of the POWER indicator may become
unstable when the volume is turned up. This is not a
malfunction.

Specifications

Speaker section
Satellite speaker
Speaker system
Full range, magnetically shielded
Speaker units
5.6 cm, cone type
Enclosure type
Closed type
Impedance
6
Cord length
3 m
Subwoofer
Speaker system
Woofer
Speaker units
16 cm, cone type
Enclosure type
Bass reflex
Impedance
6
Amplifier section
Rated output
12 W (10% T.H.D., 1 kHz, 6 )
(Satellite speaker)
80 W (10% T.H.D., 100 Hz, 6 )
(Subwoofer)
Input
Stereo mini jack 3 (INPUT 1 for 5.1
channel signal input)
Stereo mini jack 1 (INPUT 2 for 2
channel signal input)
Input impedance
4.7 k (at 1 kHz)
Output
Stereo mini jack 1 (PHONES)
General
Dimensions (w/h/d)
Approx. 166
40
83 mm
(6
5
/
1
5
/
3
3
/
in.) (Control box)
8
8
8
Approx. 95
135 150 mm
(3
3
/
5
3
/
6 in.) (Satellite speaker,
4
8
on a desk)
Approx. 95
100 180 mm
(3
3
/
4 7
1
/
in.) (Satellite speaker,
4
8
attached to a wall)
Approx. 285
285
462 mm
(11
1
/
11
1
/
18
1
/
in.)
4
4
4
(Subwoofer)
Mass
Approx. 240 g (8 oz.) (Control box)
Approx. 490 g (1 lb. 1 oz.)
(Satellite speaker)
Approx. 8.7 kg (19 lb. 3 oz.)
(Subwoofer)
Cord length
2 m (Control box to subwoofer)
2 m (Power cord)
Power consumptions
42 W
Supplied accessories
Connecting Cable (for 5.1 channel signal input)
Optional accessories
Connecting cord RK-G136, RK-G138
Plug adaptor PC-236MS
Design and specifications are subject to change without
notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRS-D5100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony SRS-D5100

  • Page 1 The model number and the serial number are located on the rear of the subwoofer. Record the model number and the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. SRS-D5100 Serial No.
  • Page 2 Si tiene alguna pregunta o problema relacionado con el No instale el aparato en un espacio cerrado, como sistema de altavoces, consulte con su distribuidor Sony una estantería para libros o un armario empotrado. habitual.

Table of Contents
