QUICKSTART

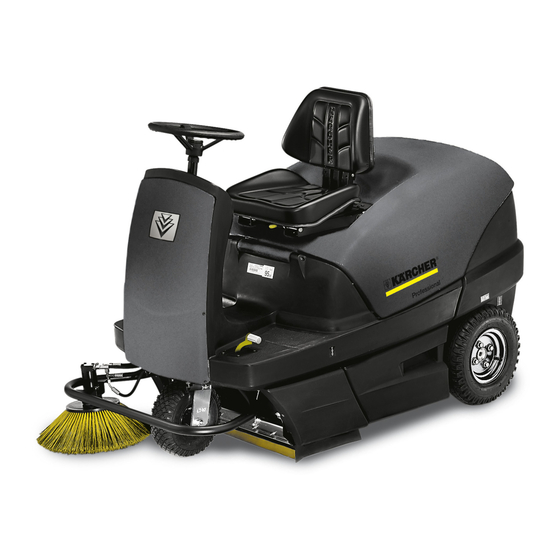

KM 100/100 R LPG
Start up
1
A
C
F
2
A
1
A
D
Warning
These are only brief instructions! Please read and comply with these instructions prior to using or servicing your
appliance.
The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers
for the operator and other persons.
B
D
B
B
E
E
C
A Opening and securing cover
B Check oil level
C Check the hydraulic oil level on the storage
container.
D Check oil level in the equalisation container.
E Close cover.
F Open the gas drawing valve by turning it in
anti-clockwise direction.
A Pull seat adjustment lever inwards.
B Slide seat, release lever and lock in place.
Check that the seat is properly locked in
position by attempting to move it backwards
and forwards.
Starting the machine
A Sit on the driver's seat.
B Do NOT press the accelerator pedal.
C Set programme switch to step 1 (driving).
D Press remote switch for 5 seconds, then
release it.
E Turn the ignition key to position "I".
If the machine starts, release the ignition key.
5.964-003.0 04/11
Advertisement
Table of Contents
Related Manuals for Kärcher KM 100
Summary of Contents for Kärcher KM 100
- Page 1 QUICKSTART KM 100/100 R LPG Warning These are only brief instructions! Please read and comply with these instructions prior to using or servicing your appliance. The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.
- Page 2 QUICKSTART Operation Drive the machine A Press slowly the accelerator pedal "forward". B Press slowly the accelerator pedal "reverse". C Release the accelerator pedal, the machine brakes automatically and stops. Sweeping with sweep roller A Set programme switch to step 2. Roller brush is lowered.
- Page 3 QUICKSTART Finish operation Turn off the appliance A Set programme switch to step 1 (driving). The side brush and roller brush are raised. B Turn ignition key to "0" and remove it. Close the gas inlet A Close gas drawing valve by turning it in clock-wise direction.
-
Page 4: Maintenance And Care
QUICKSTART Maintenance and care A Check engine oil level. A Check gas pipes and connecting screws. Check gas filter in the screw to the gas cylinder to see if it is dirty, clean it if required (every time you change the cylinder). A Check air filter. -
Page 5: Troubleshooting
QUICKSTART Troubleshooting Appliance cannot be started A Sit on the driver seat, the seat contact switch gets activated B Open the gas drawing valve by turning it in anti-clockwise direction. Replace gas bottle if required. Engine is running erratically A Clean or replace air filter Engine is running but machine is not moving A Check setting of freewheel lever Machine is not sweeping properly...
