Page 2: User Manual
PART NO.32223…2903000C REV 3 This manual and all content therein is owned exclusively by Accelerated Care Plus ("ACP") and is protected by copyright. This manual or any portion thereof may not be photocopied, reproduced or translated to another language without the express prior written consent of ACP. This manual may only be used by entities that have purchased the equipment or have implemented the ACP program and are covered by an executed lease agreement. - Page 4 ACP is internationally recognized for its contribution to research in the development of medical applications for therapeutic rehabilitation. The Company sponsors and conducts research at leading health care institutions and major universities throughout the world. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 5: Symbols On The Product
Alternating current device. household waste. Follow state and/or local regulations. Observe the user manual Consult instructions for use Protect the product from ON / OFF push button humidity COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 6: Table Of Contents
STANDARD LIMITED PRODUCT WARRANTY ....................32 Warranty Coverage ............................32 Warranty Exclusion ............................32 Warranty Period ............................... 32 Warranty Validation ............................32 Return of Defective Equipment ........................33 COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 7: Ultrasound Indications & Contraindications
Please notice that Accelerated Care Plus cannot provide medical advice. If you have specific medical questions, please contact your healthcare professional. -
Page 8: Ultrasound Warnings & Precautions
Please notice that Accelerated Care Plus cannot provide medical advice. If you have specific medical questions, please contact your healthcare professional. - Page 9 Do not immerse any part of the operator’s body into the water bath during underwater techniques since the long-term biophysical effects of ultrasonic energy exposure have not been evaluated. Over acute skin conditions such as eczema, dermatitis, etc. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-

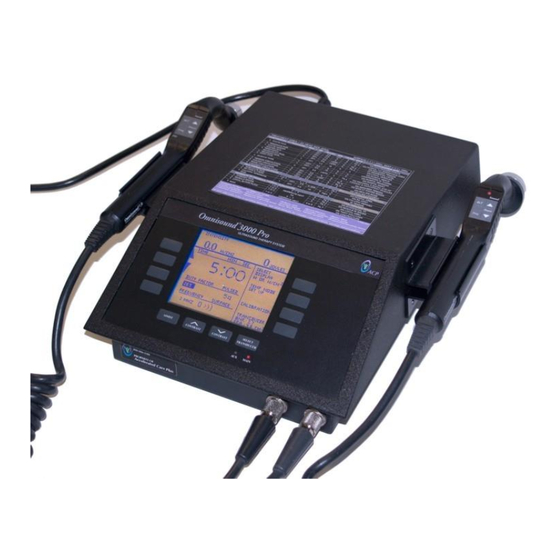

Page 10: The Omnisound 3000C Pro
Automatic Self-Test with Problem Identification - Allows accurate evaluation and documentation of unit functionality . . . before you begin treatment. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 11: Controls And Functions
The DIGITAL SCREEN displays information on treatment parameters G. The ASSIST KEY is used in conjunction with one of the following buttons to obtain additional information regarding: N.) Output Calibration COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... - Page 12 AA. The POWER intensity set button is used to increase and decrease the ultrasound output level. BB. This LED is on continuously to show which transducer is selected. The LED flashes on and off when overheated. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 13: Default Operating Screen
R.F. system will require replacement or repair. The system and transducer can only be repaired at the factory. When all systems pass the auto test, the microprocessor allows the user to access the main run screen which appears automatically. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 14: Power Supply Operation
After the transducers are connected the power may be applied by pressing the power switch to the ON position. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... - Page 15 A continuous tone will be heard while adjusting output power up or down. NOTE: Output power is automatically decreased to zero upon frequency change. ® OMNISOUND 3000C PRO TRANSDUCER COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 16: Application Techniques
Proper personnel training on use of ultrasound and the equipment is essential in order to ensure high standards of therapy. Avoid operator exposure to the ultrasonic field. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 17: Connection For Combination Therapy
However, all ultrasound treatment parameters will be controlled from the 3000C Pro. Apply a liberal amount of conductive gel to the patient’s body and begin combination ® Omnisound ® therapy through the Omnisound transducer head. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 18: Infection Control Equipment And Principles Of Use
M. tuberculosis as well as most bacteria and viruses. This will also facilitate removal of organic material contaminants from equipment. Clean ultrasound transducers with ACP germicidal wipes after each patient use. Intermediate Level Disinfection COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... - Page 19 Barriers should also be used on the equipment for treatment of non-intact skin or incontinence management. This technique will inactivate M. tuberculosis as well as most bacteria and viruses. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 20: Use Of Barriers - Intermediate Level Disinfection
Discard. ® 13. Intermediate level disinfect the Omnisound 3000C Pro unit prior to the next treatment application. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 21: Modes Of Operation
Output intensities of 0.1 - 3 watts/cm are typically applied for therapeutic purposes in pulsed or continuous wave modes. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 22: Temporal Variation Of Ultrasonic Output
Average power (temporal average) may be calculated by multiplying the Temporal Maximum by the duty factor. Duty factor is the ratio of on time to total time for pulsed waveforms. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... - Page 23 ® OMNISOUND 3000C PRO USER MANUAL COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 24: Beam Characteristics, Power, And Intensity Measurement
(although there is non-uniformity). This is followed by a region with a more uniform field. These areas are known as the near and far fields. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... - Page 25 Care should be taken when applying therapy to move the head continuously over the desired treatment area. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
- Page 26 Due to this reason the patient will generally experience much faster heating with 3MHz ultrasound and dosage or treatment time may have to be reduced to avoid overheating of the tissue. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 27: Temperature Mode Of Operation / Delta T Mode
To change the defaults select a new protocol from the front panel switches. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 28: Troubleshooting
3000C Pro Check for patient sensation in the Patient may have compromised treatment area. sensation tolerance. dentify the “HOSPITAL GRADE” marking on the power plug COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 29: Calibration
6:00am to 5:00pm Pacific Standard Time. After hours, please leave a message and a technician will return your call during the next scheduled workday. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 30: Technical Specifications
Caution: Federal law restricts this device to sale by or on the order of a physician (or other health practitioner licensed by their State). ACP reserves the right to change technical specifications and product availability without notice. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... - Page 31 Intensity to the Temporal-Average Continuous Wave Effective Intensity Watts Generator W/cm Watts per Square Centimeter Serial Number P.P.S. Pulses per Second Freq. Frequency Effective Radiating Area Beam Non-Uniformity Ratio Coll. Collimating COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
- Page 32 ACP ULTRASONIC THERAPY APPLICATOR INTENSITY IMAGE AT 5mm FROM TRANSDUCER SURFACE Model Number: 3000C Pro Serial Number: 2945 Frequency: 1 or 3 MHz Test Date: 2/1/04 ERA: 5.0 cm BNR: 2.75:1 COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
-
Page 33: Omnisound 3000C Pro Standard And Optional Accessories
AC Line Power Cord, Hospital Grade 86333 Shrouded Pin to Banana Adapter 48853 Medium 5cm Transducer with Crystal 54955 Small 2cm Transducer with Crystal ® 32223 Omnisound 3000C Pro User Manual COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 34: Infection Control Supplies
Sani- Cloth Wipes w/ Bleach, Tub 96849 (75 wipes/tub) Ultrasound Gel – 250 ml bottle 45539 Ultrasound Gel – 5L container 32060 30354 Ultrasound Probe Covers w bands (25/box) COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 35: Standard Limited Product Warranty
Buyer name or account number as it appears under the “Bill TO” on the ACP or recognized ACP Dealer invoice. Invoice Date and Number. Model number, description, and serial number of equipment. Detailed description of the problem. Detailed description of the problem. COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED... -
Page 36: Return Of Defective Equipment
AUTHORIZATION. EQUIPMENT SENT IN WITHOUT AUTHORIZATION FROM ACP CUSTOMER SUPPORT WILL NOT BE ACCEPTED. Returned Materials Shipping Address: Accelerated Care Plus Attn: ACP Service Center 4999 Aircenter Circle, Suite 103 Reno, NV 89502 COPYRIGHT © 2001 - 2017, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
