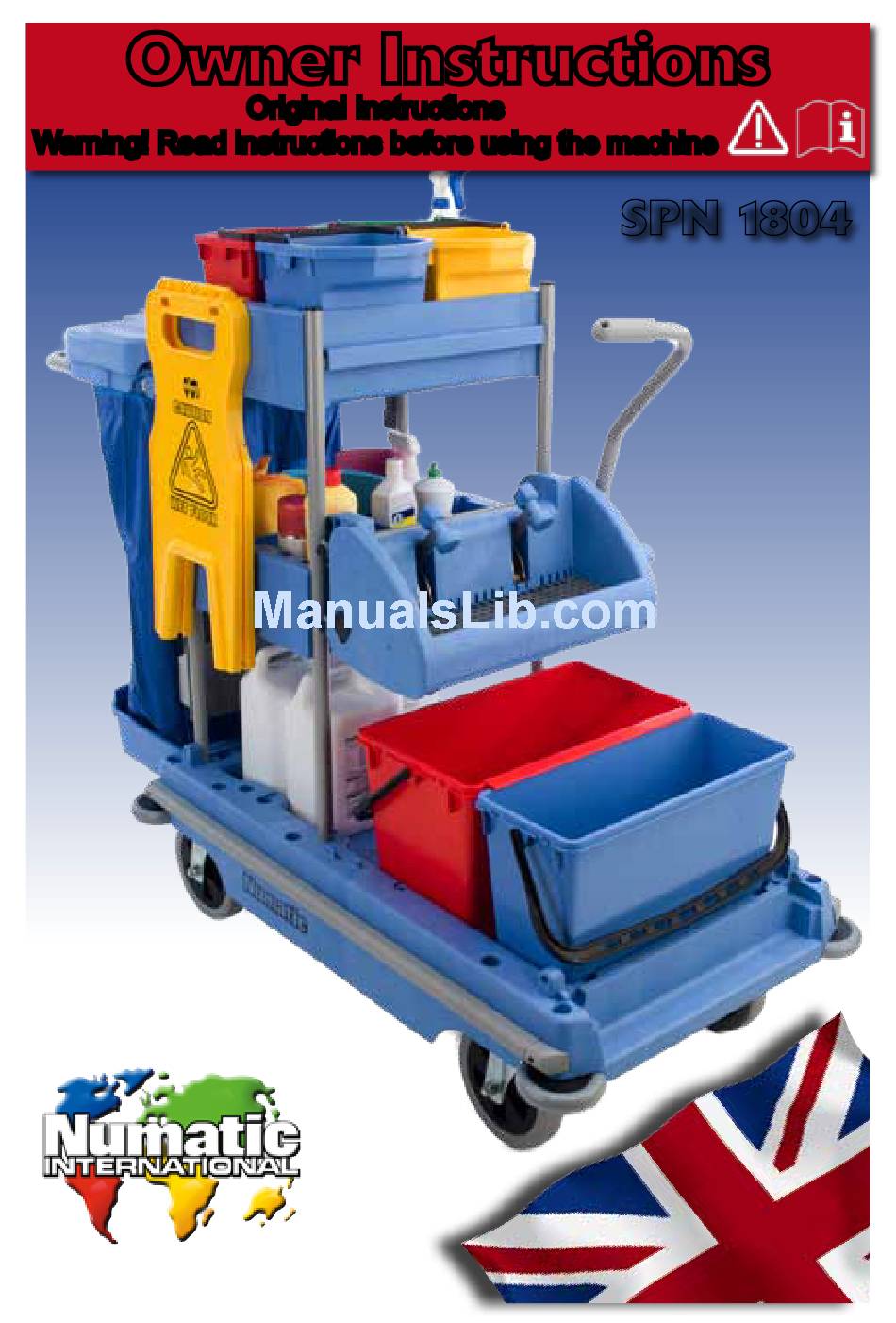

- Page 1 Owner Instructions Original Instructions Warning! Read instructions before using the machine SPN 1804 Accessories are NOT supplied with this trolley. www.numatic.com...
-
Page 2: Unpacking The Machine
Unpacking the machine. Ensure the battery has been charged before use. -
Page 3: Fit The Battery
Fit the Battery Fit the battery to the machine and plug in the motorised trolley. Always ensure the machine is switched off prior to any maintenance. -
Page 4: Using The Machine
Using the Machine Main Control On / Off Key Machine Off Isolator Button Forward Switch Reverse Switch Insert key (Fig 1) and turn 90 clockwise to the ‘ON’ position. -
Page 5: Emergency Stop
Emergency Stop Machine Charging To ensure your machine remains at its maximum efficiency and prolong your battery life, please follow the simple steps below: Under normal daily usage: Recharge battery after each use regardless of machine operation time. Connect the charger unit to the battery and plug the charger into a suitable power supply. - Page 6 Signal (LED) Meaning Red LED on First phase of charge in progress Yellow LED on Second phase of charge in progress End of charge or maintenance phase Disconnect from power supply Green LED on Switch power supply, Off then On, to restart the charging cycle Unsuitable battery or charging malfunction...
- Page 7 The SPN 1804 trolley comes with its own stand-alone charger. Insert the charging lead required for your country into the charger. Connect the charger to a suitable power supply. Once mains power is connected the red charging indicator will illuminate.
-
Page 8: About The Machine
About the Machine Rating Label Company Name & Address Machine Description Voltage Frequency Safety Critical Component Power rating Max Gradient Charging Lead: Weight (ready to use) H05VV-F x 1.0 mm x 3 core CE Mark WEEE Logo Battery Charger: 100 - 240 Volt (50-60 Hz) Machine yr/wk Serial number WEEE (Waste, Electrical and Electronic Equipment) - Page 9 DO regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. DO only replace the power cord with the correct Numatic approved replacement parts. DO ensure that the work area is clear of obstructions and / or people.
- Page 10 8. The batteries are to be disposed of safely and in accordance with the battery directive. 9. Only use genuine NUMATIC replacement batteries. 10. Do not allow the batteries to become fully discharged; it may not be possible to recharge them.
-
Page 11: Recommended Spare Parts
Recommended Spare Parts 629803 BATTERY PACK (BOXED) 629804 BATTERY & CHARGER PACK.UK 606272 CHARGER PACK.UK 629444 70L 1 roll of 10 Bags 629445 120L 1 roll of 10 Bags 208526 REPLACEMENT 40 AMP FUSE... - Page 12 SPN 1804 1580mm SPN 1804 Specification Model Motor Power Speed Bags Castors Weight Dimensions L x W x H SPN1804 110W 6 Km/h 2 x 70L 59Kg 1580x665x1215 Forward 200mm 4 Km/h 1 x 120L Reverse...
- Page 14 Machinery Directive 2006/42/EC EMC Directive 2004/108/EC RoHS Directive 2011/65/EU Machine Description:Battery Powered Traction Trolley Type:SPL, SPN series Manufactured by: Numatic International Limited Relevant standards upon which conformity is declared include: IEC 60335-1:2010 IEC 60335-2-72:2012 (Relevant Clauses) EN 55014-1:2006 EN 55014-2:1997 + A1:2001...
- Page 16 SPN 1804 Distributed by Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www.numatic.co.uk Subject to change without prior notice. 244245 01/14 (A03)
