Functional Specifications

Category
CPU, Memory
Firmware
Reset Circuit
Serial Interface
Serial Line Formats
Modem Control
Flow Control
Programmable I/O
Network Interface
Compatibility
Protocols Supported
LEDs
Management
Security
Internal Web Server
Weight
Material
Temperature
Shock/Vibration
Warranty
Included Software
Compliance
XPort Pro Integration Guide

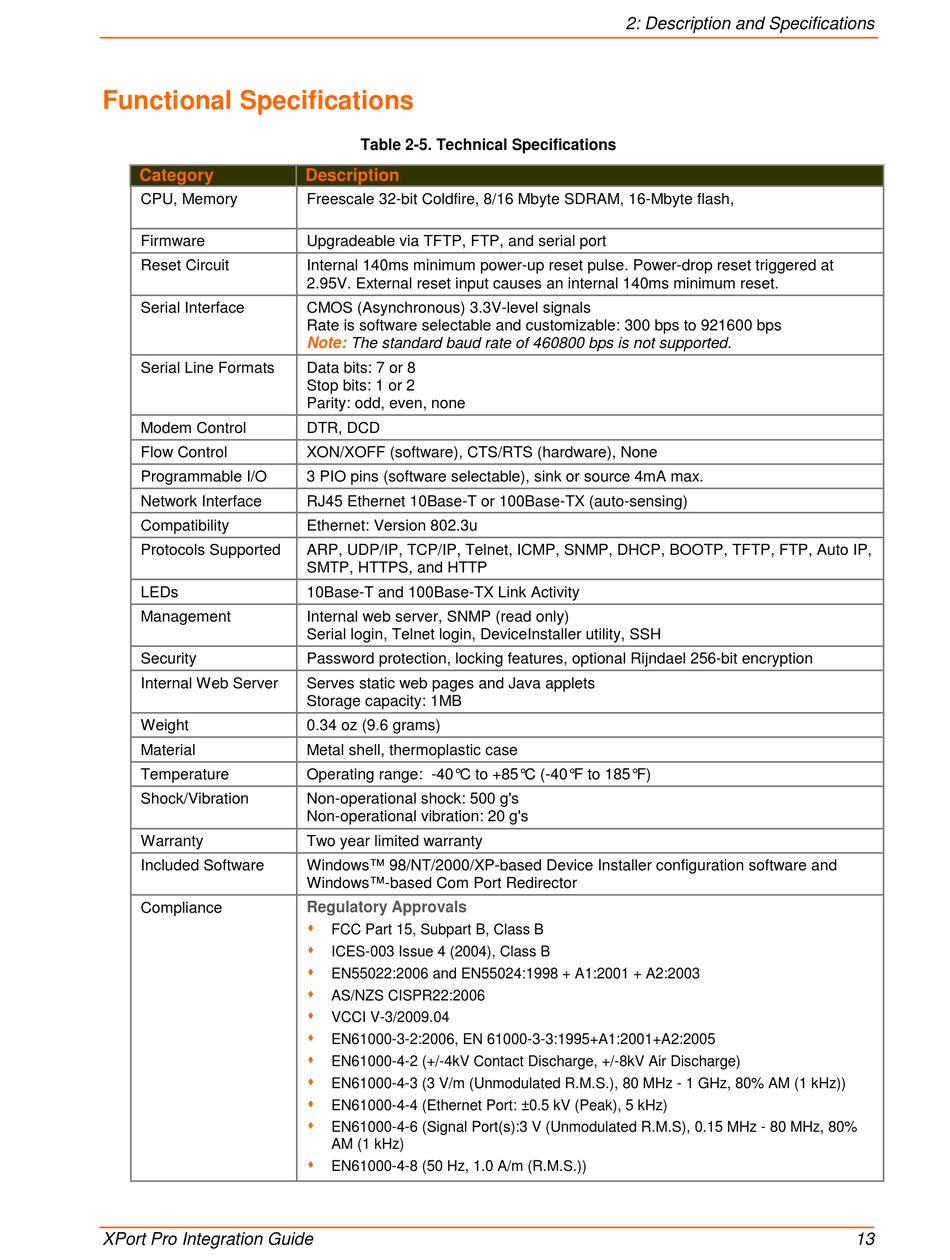

Table 2-5. Technical Specifications

Description
Freescale 32-bit Coldfire, 8/16 Mbyte SDRAM, 16-Mbyte flash,
Upgradeable via TFTP, FTP, and serial port
Internal 140ms minimum power-up reset pulse. Power-drop reset triggered at
2.95V. External reset input causes an internal 140ms minimum reset.
CMOS (Asynchronous) 3.3V-level signals
Rate is software selectable and customizable: 300 bps to 921600 bps
Note: The standard baud rate of 460800 bps is not supported.
Data bits: 7 or 8
Stop bits: 1 or 2
Parity: odd, even, none
DTR, DCD
XON/XOFF (software), CTS/RTS (hardware), None
3 PIO pins (software selectable), sink or source 4mA max.
RJ45 Ethernet 10Base-T or 100Base-TX (auto-sensing)
Ethernet: Version 802.3u
ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, FTP, Auto IP,
SMTP, HTTPS, and HTTP
10Base-T and 100Base-TX Link Activity
Internal web server, SNMP (read only)
Serial login, Telnet login, DeviceInstaller utility, SSH
Password protection, locking features, optional Rijndael 256-bit encryption
Serves static web pages and Java applets
Storage capacity: 1MB
0.34 oz (9.6 grams)
Metal shell, thermoplastic case
Operating range: -40°C to +85°C (-40°F to 185°F)
Non-operational shock: 500 g's
Non-operational vibration: 20 g's
Two year limited warranty
Windows™ 98/NT/2000/XP-based Device Installer configuration software and
Windows™-based Com Port Redirector
Regulatory Approvals

FCC Part 15, Subpart B, Class B

ICES-003 Issue 4 (2004), Class B

EN55022:2006 and EN55024:1998 + A1:2001 + A2:2003

AS/NZS CISPR22:2006

VCCI V-3/2009.04

EN61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005

EN61000-4-2 (+/-4kV Contact Discharge, +/-8kV Air Discharge)

EN61000-4-3 (3 V/m (Unmodulated R.M.S.), 80 MHz - 1 GHz, 80% AM (1 kHz))

EN61000-4-4 (Ethernet Port: ±0.5 kV (Peak), 5 kHz)

EN61000-4-6 (Signal Port(s):3 V (Unmodulated R.M.S), 0.15 MHz - 80 MHz, 80%
AM (1 kHz)

EN61000-4-8 (50 Hz, 1.0 A/m (R.M.S.))
