Schaudt SLRM 1218 Installation Instructions Manual

Solar charge
Hide thumbs

Advertisement

Quick Links

Download this manual
Table of Contents

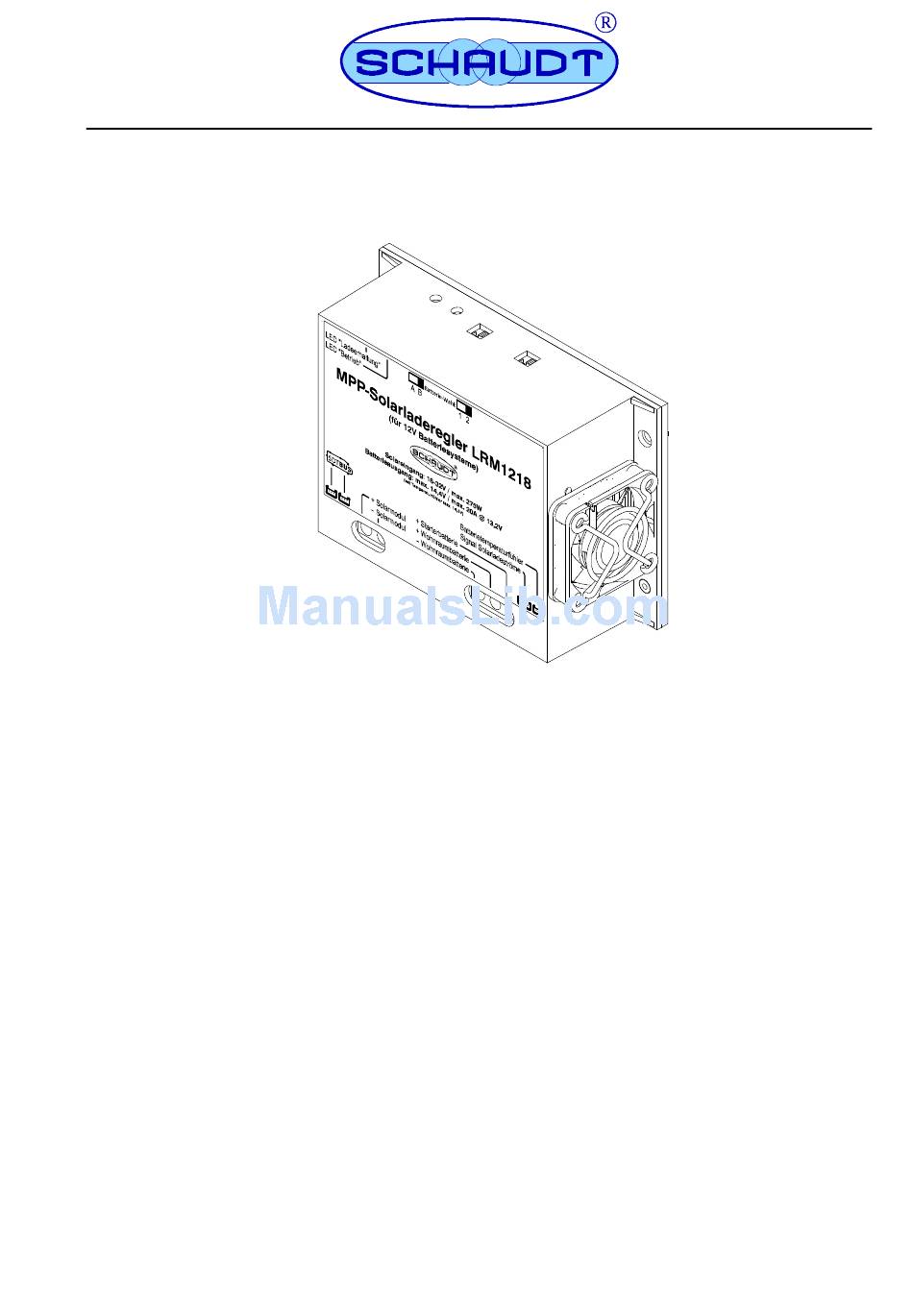

E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
822.0213 BA / EN
Installation Instructions

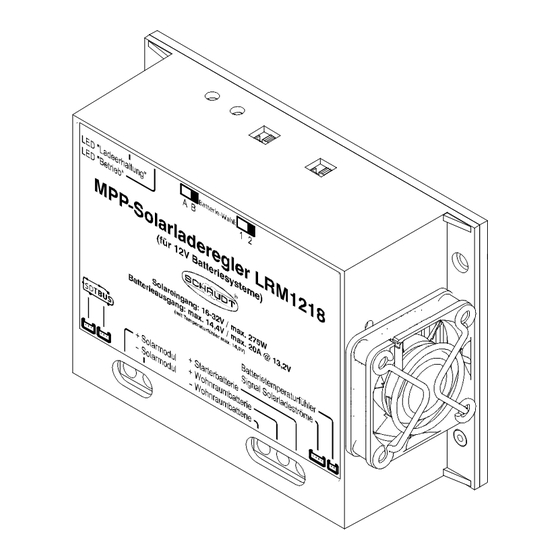

LRM 1218 Solar Charge Regulator

Table of contents

1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
5
5.1
5.2
Connection to an EBL ... electroblock with connected
5.3
Connection to an EBL ... electroblock with 3-pin
5.4
Connection to an EBL ... electroblock with SDTBUS
5.5
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1
7
7.1
7.2
7.3
8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
2
2
2
3
3
4
5
. . . . . . .
6
8
. . . . . . . . . . . . . .
10
. . . . . . . . .
13
14
14
14
15
15
15
15
15
Date: 22.07.2015

Advertisement

loading

  Related Manuals for Schaudt SLRM 1218

  Summary of Contents for Schaudt SLRM 1218

  • Page 1: Table Of Contents

    ..... E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 822.0213 BA / EN...

  • Page 2: Safety Information

    Installation instructions for solar charge regulator LRM 1218 Safety information Meaning of the safety symbols DANGER! Failure to comply with this sign may result in danger to life or physical con- dition. WARNING! Failure to comply with this sign may result in injury. ATTENTION! Failure to comply with the sign may result in damage to equipment or other connected loads.

  • Page 3: Introduction

    Installation instructions for solar charge regulator LRM 1218 Introduction These installation instructions are aimed at trained personnel. They contain important information on the connection and safe operation of the device. The safety information provided must be observed. Always follow the relevant instruction manual in addition to the installation instructions.

  • Page 4: Mechanical Installation

    For applications in which the cables provided are used to connect to an " EBL ... electroblock from Schaudt (as in Sections 5.2 and 5.3), the solar charge regulator must be installed in the direct vicinity of the electroblock (max. distance to front plate 30 cm).

  • Page 5: Electrical Connection

    Installation instructions for solar charge regulator LRM 1218 Minimum clearance Ensure a minimum clearance to the surrounding fixtures and fittings: " Maintain a gap of at least 5 cm on all sides (except mounted side). Whilst in operation, the ambient temperature must not exceed +45 C, measured 2.5 cm away from the sides of the device.

  • Page 6: Connections To Leisure Area Battery And Starter Battery

    Installation instructions for solar charge regulator LRM 1218 Connections to leisure area battery and starter battery ATTENTION! Short circuits! Damage to the solar charge regulator or fire damage to cable: To protect the supply lines in the event of a short circuit, connect the fuses directly to the positive pole of battery.
  • Page 7 Installation instructions for solar charge regulator LRM 1218 Pos. Name Fuse for starter battery charge current (20A) Fuse for leisure area battery charge current (20A) Starter battery Leisure battery Solar module(s) LRM 1218 Solar charge regulator LT320* Control panel solar charge currents (optional special configura- tion;...

  • Page 8: Connection To An Ebl

    Installation instructions for solar charge regulator LRM 1218 Connection to an EBL ... electroblock with connected DT ... / LT ... control and display panel For this application, the follow parts are required from those delivered: Fig./Pos. Name LRM 1218 solar charge regulator 1/1 or 2 20A or 15A flat vehicle fuse (depending on EBL ...) EBL ...
  • Page 9 Installation instructions for solar charge regulator LRM 1218 Pos. Name Cable with electroblock connector: -- X1 Brown Negative battery -- X2 Red + Starter battery -- X3 Black + Leisure area battery Cable with DT .../LT ... control and display panel connector -- Y1 Brown Leisure area battery signal -- Y2 White...

  • Page 10: Connection To And Ebl

    Installation instructions for solar charge regulator LRM 1218 Connection to an EBL ... electroblock with 3- -pin MNL con- nection and adapter for starter battery When using an electroblock which only has a 3--pin connection for a solar charge regulator, an adapter for charging the starter battery can be retrofit- ted.
  • Page 11 Installation instructions for solar charge regulator LRM 1218 Black Brown EBL ... Yellow on block Brown TF 50 A* Cable loom LRM 1218 LT 320* 2 x Red Black Brown EBL ... on block ”Solar charge regulator” Fig. 6 Circuit diagram for LRM 1218 connection to EBL ... Pos.
  • Page 12 Installation instructions for solar charge regulator LRM 1218 Connection sequence Establish the connection on the front of the solar charge regulator in the fol- lowing order: 1. On the electroblock, disconnect the vehicle--side 5-pin cable carrying " the starter battery supply. 2.

  • Page 13: Connection To An Ebl

    Installation instructions for solar charge regulator LRM 1218 Connection to an EBL ... electroblock with SDTBUS For this application, the follow parts are required from those delivered: Fig./Pos. Name LRM 1218 solar charge regulator 1/1 or 2 20A or 15A flat vehicle fuse (depending on EBL ...) EBL ...

  • Page 14: Block Diagram/Wiring Diagram

    Installation instructions for solar charge regulator LRM 1218 Connection sequence Establish the connection on the front of the solar charge regulator in the following order: 1. Connect the electroblock with cable X (connection cable EBL ... " (charge currents for batteries), Fig. 2, Pos. 2). 2.

  • Page 15: Initial Use

    Installation instructions for solar charge regulator LRM 1218 Initial use Checks prior to initial use Before starting up Ensure that all the connections are correct (only for initial use). " Ensure that the batteries or the electroblock are connected (depending "...
  • Page 16 Installation instructions for solar charge regulator LRM 1218 No part of this manual may be reproduced, translated or copied without ex- press written permission. Date: 22.07.2015 822.0213 MA / EN...
