Instruction Manual
Control and Display Panel DT 203
Table of contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1
1.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4
3.4.1
3.4.2
3.5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.1
3.5.2
3.5.2.1 Setting the installed (nominal) battery capacity of the living area battery
3.5.3
3.6
3.6.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6.3
3.7
3.7.1
3.7.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
5
5
5
6
7
. . . . . . . . . . . . . .
7
7
7
8
8
9
10
11
12
.
13
15
15
16
17
17
18
19
19
21
22
22
22
23
23
24
25
Date: 09.05.2011
Advertisement
Table of Contents
Related Manuals for Schaudt DT 203
Summary of Contents for Schaudt DT 203
-
Page 1: Table Of Contents
........... . E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 830.567 BA / EN... -
Page 2: Safety Information
Instruction Manual for DT 203 Control and Display Panel Safety Information Meaning of safety symbols WARNING! Failure to heed this warning may result in personal injuries. ATTENTION! Failure to heed this warning may result in damage to the device or connec- ted consumers. - Page 3 Instruction Manual for DT 203 Control and Display Panel Date: 09.05.2011 830.567 BA / EN DT 203 description in short...
- Page 4 Instruction Manual for DT 203 Control and Display Panel Date: 09.05.2011 830.567 BA / EN DT 203 description in short...
-
Page 5: Introduction
Introduction This instruction manual contains important information on the safe operation of equipment supplied by Schaudt. Make sure you read and follow the safety instructions provided. The instruction manual should be kept in the vehicle at all times. Ensure that other users are made aware of the safety regulations. -
Page 6: Indicators

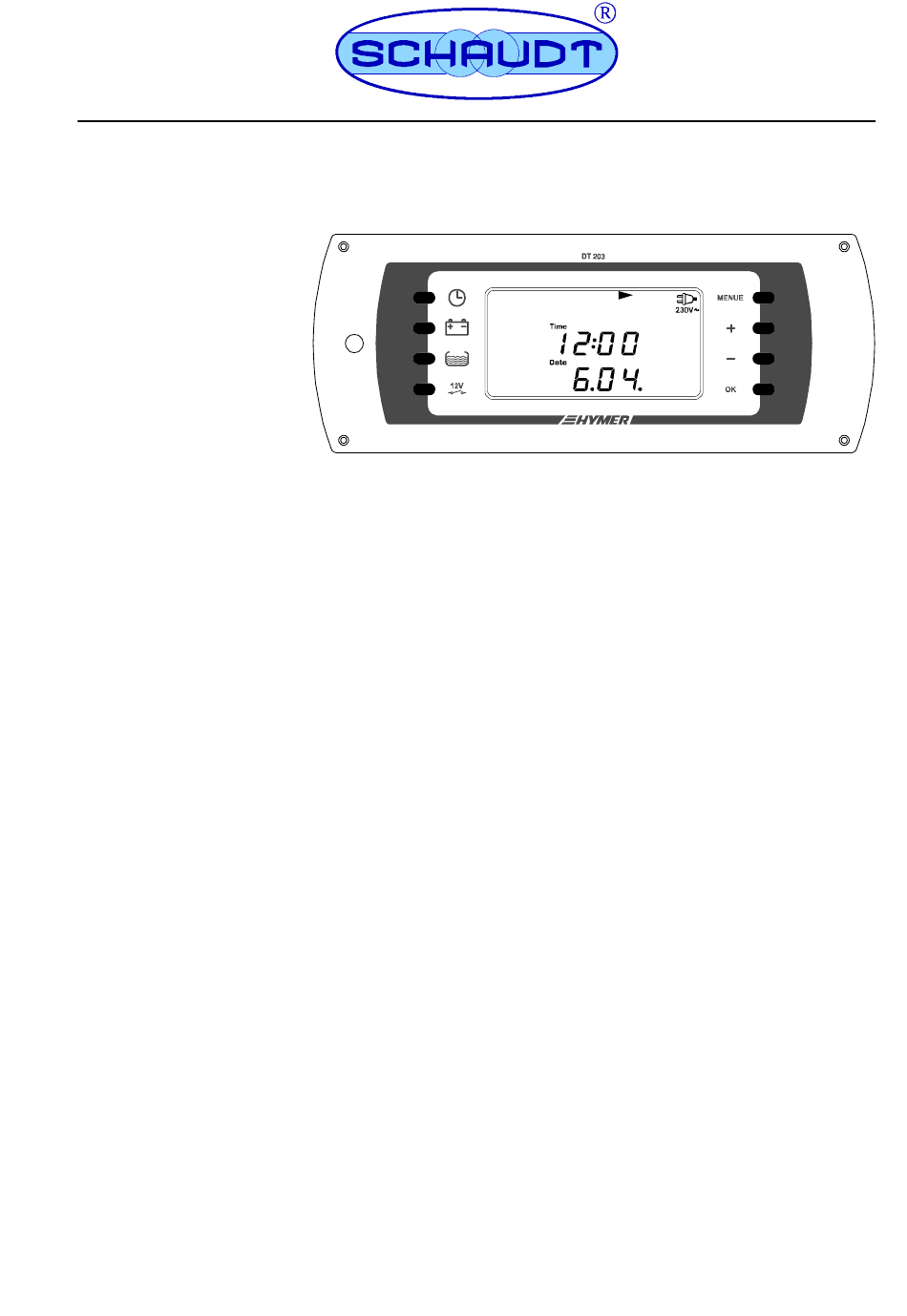

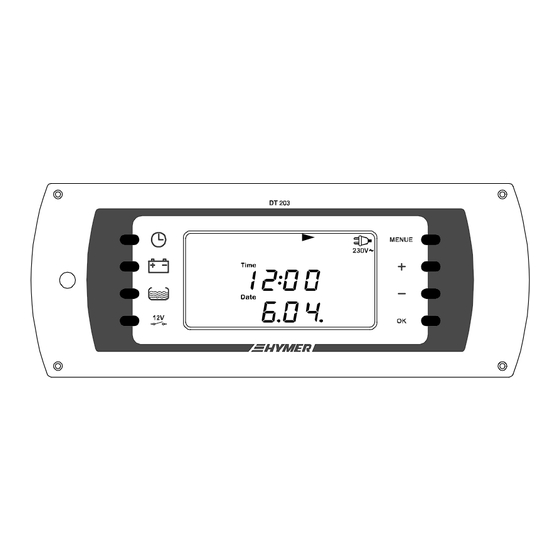

Instruction Manual for DT 203 Control and Display Panel Display indicators The different areas of the display are subdivided as follows: Fig. 2 Layout of display (using main display as an example) Info line Symbol line Tank field (for tank display) -
Page 7: Starting Up
Instruction Manual for DT 203 Control and Display Panel Starting up 230V mains operation Connect the plug for mains operation to the 230V power supply. 12V supply to the living area - - switching on and off 3.4.1 Switching on The control and display panel can only be switched on when the battery voltage of the living area battery is greater than 11.0V. -
Page 8: Displays
Instruction Manual for DT 203 Control and Display Panel Displays 3.5.1 Main display Main display press longer settings on the than 3 main display seconds Only for step alarm: Section 3.4.1 Section 3.5.2 Section 3.5.3 This window is only displayed when the ”Truma Duomatic L... -
Page 9: Setting Date And Time
Instruction Manual for DT 203 Control and Display Panel The main display showing the time is always displayed automatically 10 seconds after the last button is pressed. Press the ”Main display” button. The display lights up. The time, date and any other symbols are displayed. -
Page 10: Switching On And Off Eisex System
Instruction Manual for DT 203 Control and Display Panel 3.5.1.2 Switching on/off EisEx system This function is only available when a Truma Duomatic L Plus or Truma Triomatic is fitted in the vehicle. Press the ”Main display” button. The display lights up. -
Page 11: Switching Off Step Alarm
Instruction Manual for DT 203 Control and Display Panel 3.5.1.3 Switching off step alarm This function is only available when the step alarm is active (the warning buzzer is sounding). A defect step limit switch may cause a false alarm -- the step alarm is triggered although the step is retracted. -
Page 12: Battery Display
Instruction Manual for DT 203 Control and Display Panel 3.5.2 Battery display Battery display settings on the battery display press longer than 3 seconds **** Service Section 3.4.1 Section 3.5.3 Fig. 4 Layout of battery display If function ”Read battery capacity” has been enabled by the manufacturer, the battery capacity and the charge current are displayed in the first and second line respectively. - Page 13 Instruction Manual for DT 203 Control and Display Panel **** The solar system functions are only available if the relevant equipment (solar controller and solar cell) is connected up to the EBL ... electroblock and option ”Read solar current” is enabled. Only the vehicle manufacturer can enable it at a later point in time.
- Page 14 Instruction Manual for DT 203 Control and Display Panel If the installed battery capacity is to be displayed but not adjusted, the “ OK” button must not be pressed. The setting menu must be exited by pressing a button (the menu is also exited automatically after 20 se- conds) or by switching off the 12V supply.
-
Page 15: Battery Current
Instruction Manual for DT 203 Control and Display Panel Other functions: The capacity display is automatically set to ”full” when the full charge state is reached. A warning is generated if the battery capacity drops to approx. 15%. Automatic determination of the maximum attainable battery capacity (in %) for defined maximum discharging of the battery. -
Page 16: Solar Power
12V), switch off some of the consumers. 3.5.2.4 Solar current The solar current display is only available if a Schaudt LR(S)... solar charger is fitted and the ”Read solar current” option is enabled. symbol is only displayed when the solar charge current is greater than ca. -
Page 17: Battery Monitor
Instruction Manual for DT 203 Control and Display Panel 3.5.2.5 Battery monitor Static battery monitor The battery monitor alarm is always displayed below 10.8V. The cut-off threshold is fixed at 10.5V. Dynamic battery monitor (only if function ”Read battery capacity” has... -
Page 18: Switching On And Off Tank Alarm
Instruction Manual for DT 203 Control and Display Panel 3.5.3.1 Switching the tank alarm on and off The tank alarm can, for instance, be switched off when the water tank is constantly empty (e.g. city water connection). The tank alarm can only be switched on/off for all tanks simultaneously. -
Page 19: Troubleshooting And Remedies
Instruction Manual for DT 203 Control and Display Panel Troubleshooting and remedies 3.6.1 Alarms A flashing warning triangle indicates an alarm in the main display. A flashing symbol is displayed in the relevant function area in the main display and the screen is illuminated for 20 seconds whenever an alarm is set. - Page 20 Instruction Manual for DT 203 Control and Display Panel Alarm Possible cause Remedy Main display: Battery voltage too high/ Determine from the battery display whether the vol- tage is too high or too low: High voltage: Check electroblock. Low voltage: Charge battery.
-
Page 21: Faults
If this is not possible (such as when you are abroad), you can have the con- trol and display panel repaired at a specialist workshop. Please note that the warranty becomes void if incorrect repair work is carried out. Schaudt GmbH cannot accept liability for any damages resulting from such repairs. -
Page 22: Checking The Software Version
Instruction Manual for DT 203 Control and Display Panel 3.6.3 Check the software version (SW vers.) The software version must be known for servicing purposes and for answe- ring the manufacturer’s questions. It can be determined as follows: Press the ”Main display” button. -
Page 23: Starting Up After A Shutdown
Never use spirit, thinners or similar substances. Do not allow fluid to ingress the control and display panel. Tank sensors/ Clean the sensors/probes (the sensor/probe surfaces must always be tank probes clean). Inform the customer service department at Schaudt GmbH if there is still a problem. Date: 09.05.2011 830.567 BA / EN... -
Page 24: Application And Function
Instruction Manual for DT 203 Control and Display Panel Application and function The DT 203 control and display panel is the central operating unit for the EBL ... electroblock which supplies power to all of the 12V consumers in the electrical system on board the motorhome or caravan. -
Page 25: Appendix
Instruction Manual for DT 203 Control and Display Panel Appendix EC Declaration of Conformity Schaudt GmbH hereby confirms that the design of the DT 203 control and display panel complies with the following relevant regulations: DIRECTIVE OF THE COMMISSION 2004/104/EC from October 14th... -
Page 26: Customer Service Address
The PCB of the control and switch panel contains components that can be destroyed by electrostatic discharge (ESD). Do not touch the compo- nents on the PCB. A suitable bag can be ordered from Schaudt GmbH if you do not have one available. Always use well padded packaging. -
Page 27: Fault Report
Instruction Manual for DT 203 Control and Display Panel Fault report In the event of damage, please return the defective device together with the completed fault report to the manufacturer. Device type: _______________________ Item no.: _______________________ Vehicle: Manufacturer: _______________________ Model:... -
Page 28: Block Diagram/Wiring Diagram
Instruction Manual for DT 203 Control and Display Panel Block diagram/wiring diagram Fig. 7 Connection diagram of DT 203 control and switch panel X1 Lumberg MSFQ 7-way X2 Lumberg MSFQ 12-way Main switch relay 1 Off n.c. Main switch relay 1 On n.c.
