E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
8220319 MA / EN

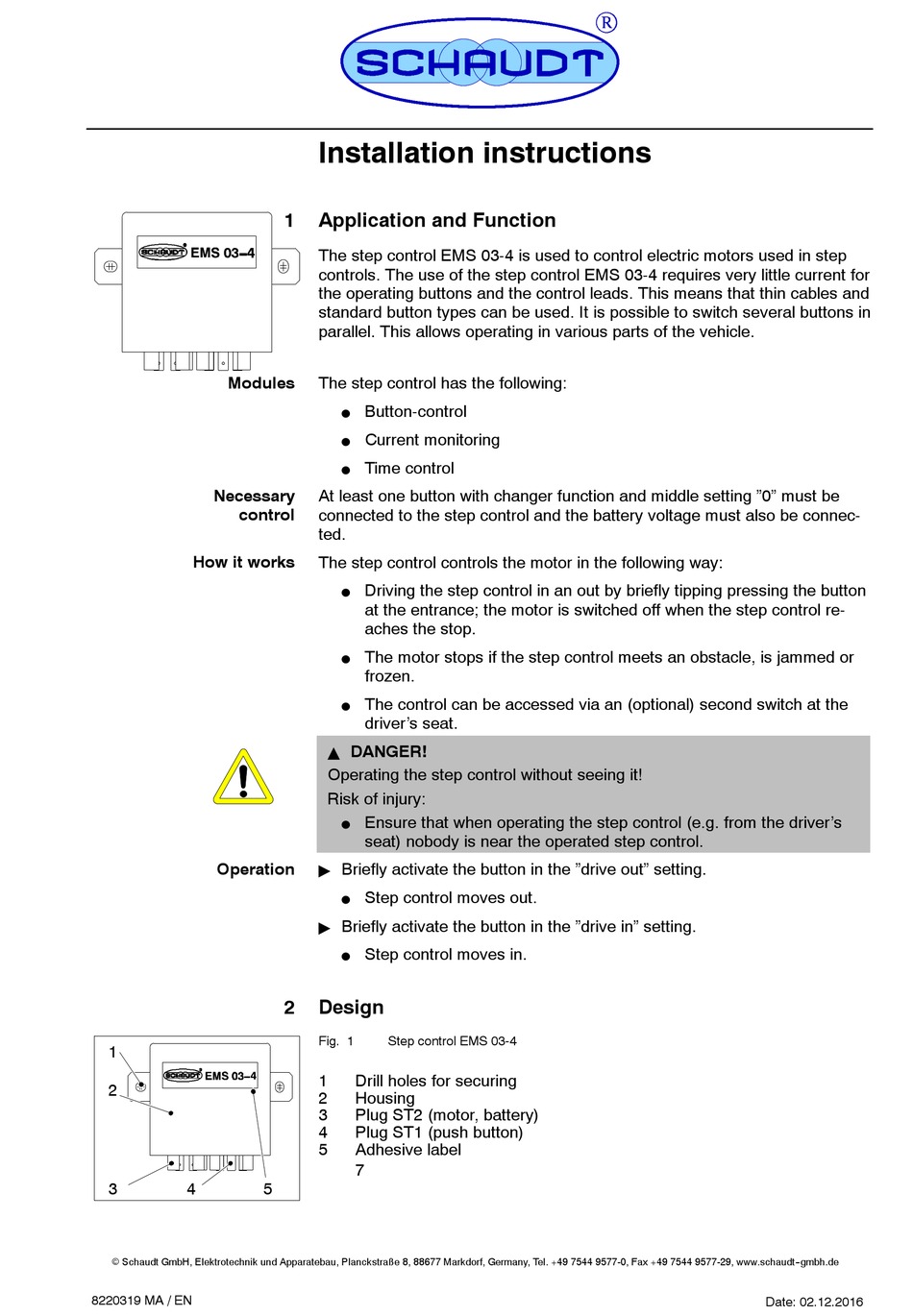

Installation instructions
1
Application and Function
The step control EMS 03-4 is used to control electric motors used in step
controls. The use of the step control EMS 03-4 requires very little current for
the operating buttons and the control leads. This means that thin cables and
standard button types can be used. It is possible to switch several buttons in
parallel. This allows operating in various parts of the vehicle.
The step control has the following:
Button-control
F
Current monitoring
F
Time control
F
At least one button with changer function and middle setting "0" must be
connected to the step control and the battery voltage must also be connec-
ted.
The step control controls the motor in the following way:
Driving the step control in an out by briefly tipping pressing the button
F
at the entrance; the motor is switched off when the step control re-
aches the stop.
The motor stops if the step control meets an obstacle, is jammed or
F
frozen.
The control can be accessed via an (optional) second switch at the
F
driver's seat.
DANGER!
Y
Operating the step control without seeing it!
Risk of injury:
Ensure that when operating the step control (e.g. from the driver's
F
seat) nobody is near the operated step control.
Briefly activate the button in the "drive out" setting.
"
Step control moves out.
F
Briefly activate the button in the "drive in" setting.
"
Step control moves in.
F
2
Design
Fig. 1
Step control EMS 03-4
1
Drill holes for securing
2
Housing
3
Plug ST2 (motor, battery)
4
Plug ST1 (push button)
5
Adhesive label
7
Date: 02.12.2016

Advertisement

loading

  Summary of Contents for Schaudt EMS 03-4

  • Page 1 Drill holes for securing Housing Plug ST2 (motor, battery) Plug ST1 (push button) Adhesive label E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 8220319 MA / EN Date: 02.12.2016...
  • Page 2 Installation instructions electronic step control EMS 03-4 Mechanical installation Das Gerät ist für die Wandmontage mit den An- schlüssen nach unten oder Bodenmontage vorge- sehen.The device is designed for wall mounting with the connections facing down or for floor mounting.
  • Page 3 12 V DC systems (10 to 14.5 V) Current consumption Stand-by current lower than 2,5 mA Motor current EMS 03-4 can be used for step with following currents: Operating current step: approx. 3 A Motor lock current step: approx. 11 A Switch off current EMS 03-4 : 7.5 A ±10 %...
  • Page 4 Appendix EC Declaration of Conformity Schaudt GmbH hereby confirms that the design of the step control EMS 03-4 meets the relevant conditions. The original EC Declaration of Conformity is available for reference at any time.
