QuickSpecs
Overview

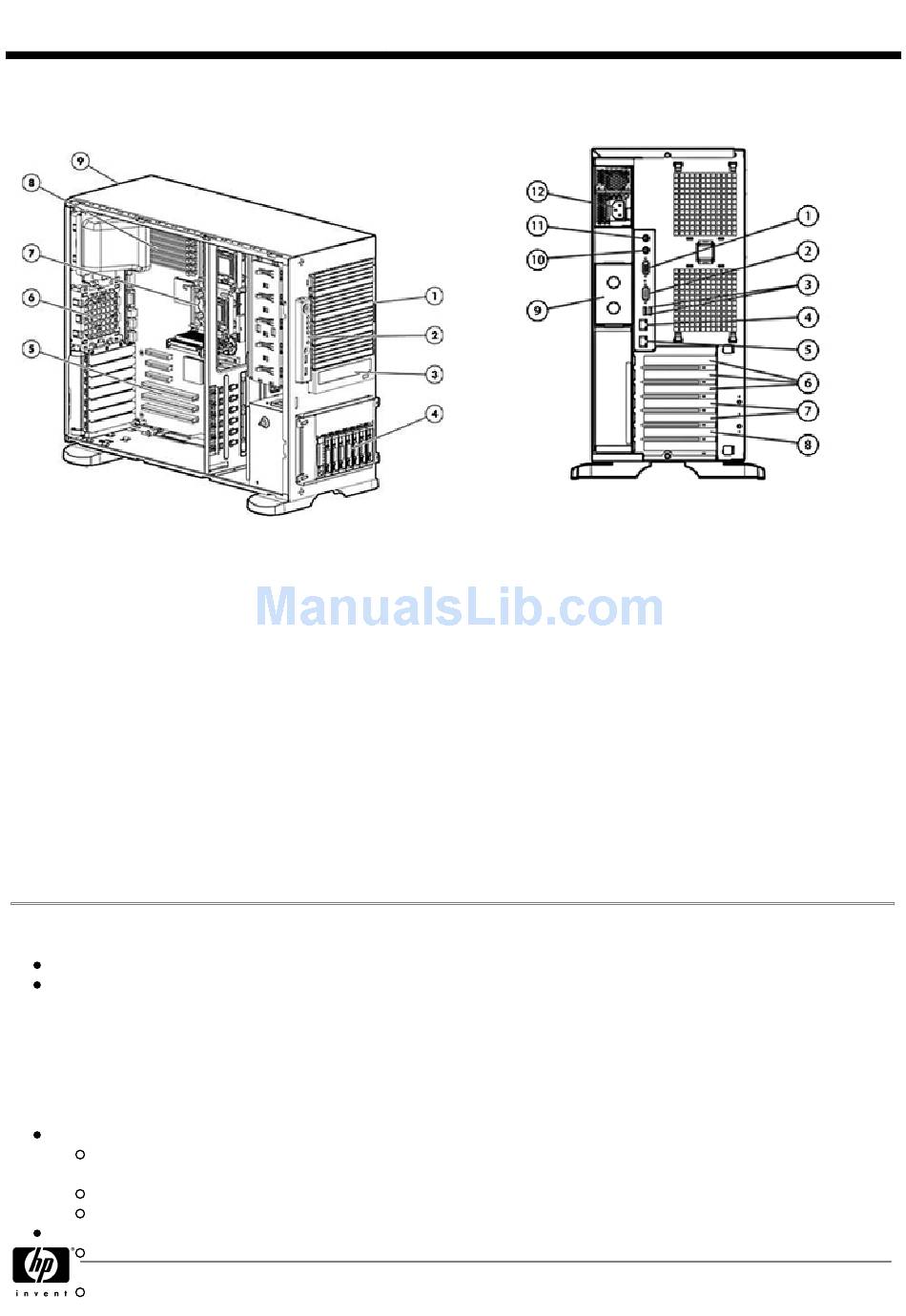

Front View:
1. Five removable media bays
2. Front display panel; includes power button, UID, two USB
2.0 ports, and system status LED's
3. CD-ROM Drive (Dual-Core models), DVD-ROM Drive
(Quad-Core models)
4. Eight SFF (2.5") (shown) or six LFF (3.5") SAS or SATA
Hot Plug drive bays
5. Six expansion slots (three PCI Express, three PCI-X)
6. Two system fans standard with support for optional
redundant system fans
7. Support for two Intel Dual-Core or Quad-Core Xeon 5000
sequence processors
8. Eight PC2-5300 FB-DIMM (DDR2 667) memory sockets
9. Single Hot-Plug power supply standard, optional second
redundant supply for availability
What's New
New Intel's latest Quad-Core Xeon 5400 series processors with 12MB (2x6MB) L2 cache
Base models with Quad-Core Xeon 5400 series processors come standard with 2GB system memory
At A Glance
Building on a tradition of excellence, the HP ProLiant family introduces the fifth generation HP ProLiant ML350 server. The
HP ProLiant ML350 G5 server provides Multi-Core performance, enterprise level management, and highly available
redundant options in a modular server form factor. New for this generation is a smaller and quieter chassis, embedded
Smart Array E200i Controller and 5 media bays.
Processors:
Quad-Core and Dual-Core Intel® Xeon™ processors for blazing performance; systems support up to 2
processors
1333/1066/667 MHz front side bus (FSB)
Intel® 5000Z chipset
Memory:
DA - 12475 Worldwide QuickSpecs — Version 20 — 11/27/2007
HP ProLiant ML350 Generation 5
Rear View:
1. Monitor port
2. Serial port
3. USB ports
4. Integrated Lights-Out 2 (iLO2) port
5. Network port
6. PCI Express x4
7. PCI-X 64/100
8. PCI-X 64/133
9. Access to add 2nd redundant power supply
10. Mouse port
11. Keyboard port
12. Power
Page 1
