WBS
-2450
AC
Q
I
G
UICK
NSTALLATION
UIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBSAC-2450 and is the answer not in the manual?

Questions and answers

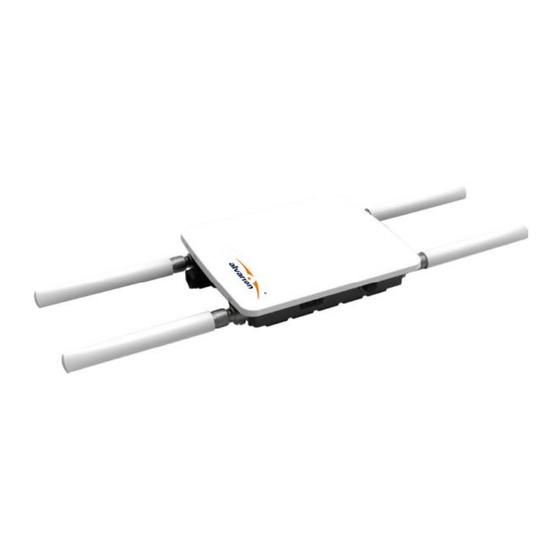

Summary of Contents for Alvarion WBSAC-2450

  • Page 1 -2450 UICK NSTALLATION UIDE...
  • Page 2: Package Content

    Important Information Warnings  The WBSac access point must be used only with Alvarion-approved components and the antennas provided as part of the original package.  Only experienced installation professionals who are familiar with local building and safety codes and are licensed, wherever applicable, by the appropriate government regulatory authorities, should install outdoor units and antennas.
  • Page 3: Pole Installation

    Mounting WBSac-2450 units support both pole and wall mounting, as shown in the following illustrations. As the first step of each installation, attach the wall mount base to the back of the unit using 4 of provided mounting screws Pole Installation Attach the pole mount bracket to the wall mount base using additional 4 provided mounting screws.
  • Page 4: Wall Installation

    Note: For best performance of WBSac-2450 unit with integrated sector antennas, the recommendation is to install using a horizontal pole mount, as it offers a wider range of directional adjustment. When installing such unit on a vertical pole - tilting kit may be required.
  • Page 5: Connecting The Antennas

    Assemble 2.4GHz antennas on the top of the device. Assemble 5GHz antennas on the bottom of the device (near the waterproof POE connector). All the antennas should be tightened by hand. For further information, please contact Alvarion Technical Support at: support@alvarion.com Page | 5 DOC00182-00...
  • Page 6 Slide the rubber bushing into sealing gland base Close the sealing gland nut and tighten it until the rubber bushing is compressed, making Ethernet cable sealed. For further information, please contact Alvarion Technical Support at: support@alvarion.com Page | 6 DOC00182-00...
  • Page 7 Overvoltage Category II values. The limits are based on IEC60664 and are also located in Table 2H of UL60950 (for mains 110V, the transient rating is 1500V). For further information, please contact Alvarion Technical Support at: support@alvarion.com Page | 7...
  • Page 8 RJ45 plugs will not provide any grounding points or protect from static discharge or lightning strike Note: Lightning damage is not covered under the Alvarion Warranty. When correctly installed, the recommendations on this page offer you the best protection from the harmful effects of lightning.
  • Page 9 Set DHCP server IP address Set Arena controller IP address ( in case using Arena controller) Refer to WBSac-2450 User Manual for a full setup configuration For further information, please contact Alvarion Technical Support at: support@alvarion.com Page | 9...
  • Page 10: Federal Communication Commission Interference Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 27cm between the radiator & your body. For further information, please contact Alvarion Technical Support at: support@alvarion.com Page | 10 DOC00182-00 rev-B...
  • Page 11 2.4G: Dipole antenna with 4.6dBi, N-Type for outdoor use. Manufacturer / Model: Senao Networks Inc. / 5718A0136300 5G: Dipole antenna with 6.03dBi, N-Type for outdoor use. Manufacturer / Model: Senao Networks Inc. / 5718A0137300 For further information, please contact Alvarion Technical Support at: support@alvarion.com Page | 11 DOC00182-00...
