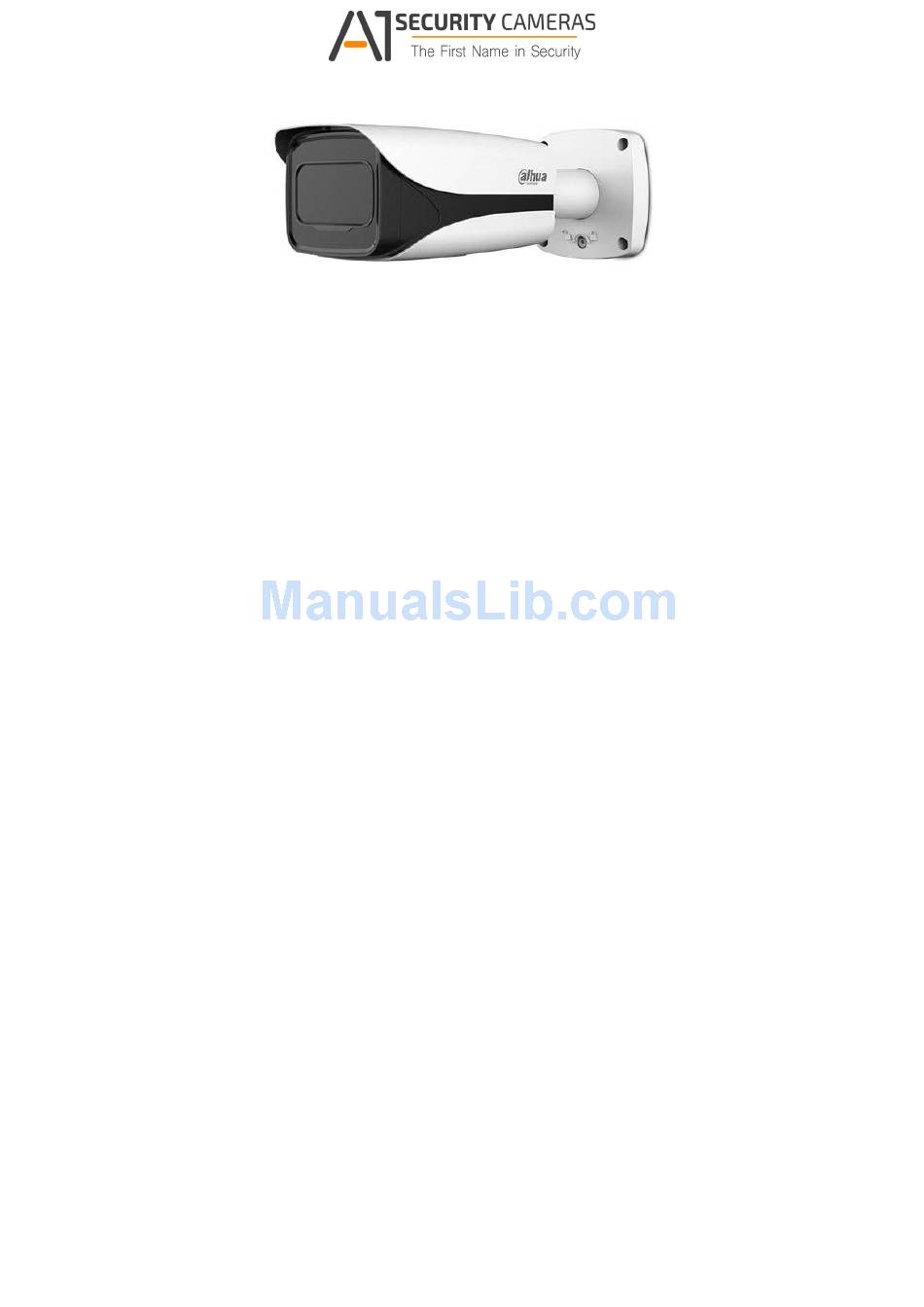

- Page 1 4K HDCVI Vari-focal Bullet Camera A83ABBZ Quick Start Guide Version 001.001 Dahua Technology USA Inc. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings ..............1 Electrical Safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............3 Warnings ......................3 FCC Information ....................4 FCC compliance： .................... 4 Legal Notices ....................4 Copyright ...................... -
Page 3: Welcome
This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Multi-Sensor Panoramic Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. -
Page 4: Environmental Precautions
Ensure a service technician uses replacement parts specified by the manufacturer, or that have the same characteristics as the original parts. Unauthorized parts may cause fire, electrical shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized modifications or repairs. -
Page 5: Operation And Daily Maintenance
• Dahua recommends the use of a thunder-proof device in concert with the unit. • Do not touch the CCD or the CMOS optic sensor. Use a blower to clean dust or dirt on the lens surface. -
Page 6: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 7: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative. -
Page 8: Installation And Configuration
3 Installation and Configuration 3.1 Framework and Dimensions The following figures show the dimensions of the device in mm [in.]. These images are intended as a reference only. Figure 3-1 3.2 Camera and Cables The following figure depicts the type and location of each cable coming from the device. This image is intended as a reference only. -
Page 9: Device Installation
Warning: DO NOT remove the protective film from the dome until the installation is complete to protect the dome from distortions from fingerprints, oil, grease or other contaminants. Note: Dahua recommends attaching a “drip loop” (flex or hard conduit) during installation to ensure condensation does not form in the mount or the conduit. - Page 10 1. Remove the camera, the mounting template, and the hardware package from the box. 2. Apply the mounting template to the mounting medium. Ensure the TOP of the template is directed to the desired direction. 3. Pre-drill the four (4) perimeter holes for the expansion bolts, using a drill bit that is no wider than the expansion bolt, according to the position on the mounting template.
- Page 11 13. Loosen the screw on the underside of the camera body to access the zoom and focus controls. 14. Use the camera positioning button, located on the camera body, to adjust the lens angle and the focal length to produce a clear image. Figure 4-3 Description Function...
-
Page 12: Setting Camera Parameters
HDCVI technology allows you to set parameters for the camera and to control the camera from a Dahua HDCVI DVR. 1. Connect the camera to a Dahua HDCVI DVR. 2. From the DVR, select the Main Menu and choose Setting. Then, select the System tab and select the PTZ link, on the left-side menu. - Page 13 8. Set AUDIO FORMAT as G711a and set AUDIO SOURCE as HDCVI. Figure 5-2 9. Click Save to store the changes. 10. Click the right-mouse button and select PTZ Control. The HDCVI DVR opens the PTZ Setup menu. Figure 5-3 11.
- Page 14 12. Use the following table to access the camera’s menu: Button Function Access the camera’s settings menu. Select a menu item. Select a setting value. Adjust lens zoom and auto trigger function. Adjust lens focus. Trigger autofocus at the current zoom factor. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 15: Camera Maintenance
6 Camera Maintenance Proper maintenance will ensure consistent image quality over the life-span of the camera. 6.1 Optical Components Take care not to touch or stain the dome cover, lens, or the mirror surface. If the one of these surfaces is stained, use the following methods to clean: •... - Page 16 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
