RG-AP630(CD) Wireless Access Point

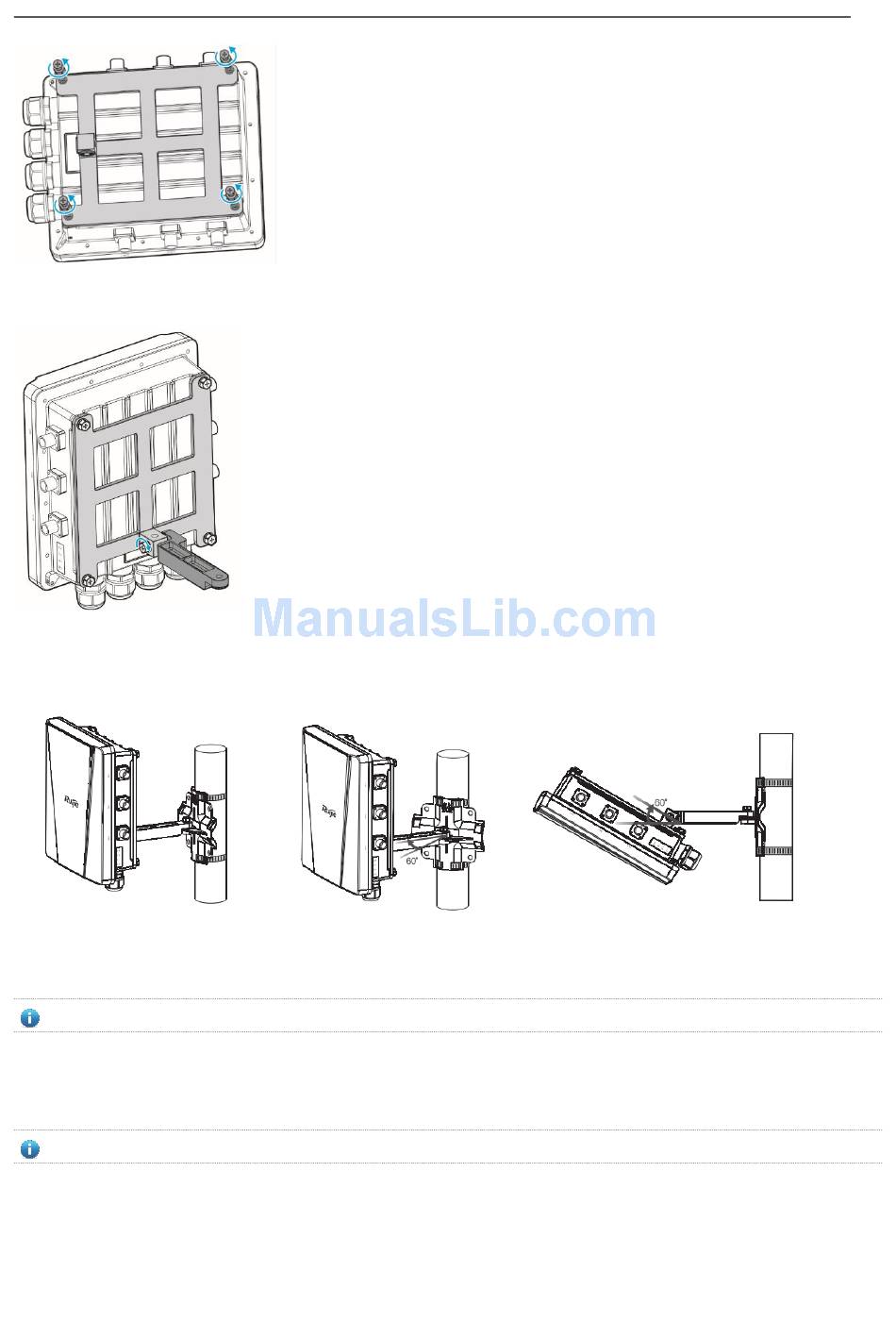

Attach the mounting plate to the bottom of the AP and fasten the plate with the four M8x20 screws.
Attach the tie rod to the mounting plate and fasten the rod with the M8x40 screws after AP is well-positioned, shown in the
following figure.
Attach the mounting plate to the mounting bracket through the rod with the M8x40 screws, adjust AP orientation, and
tighten the screws on the rod with the Phillips screwdriver (or the wrench).
Horizontal pole mount is also supported. The procedure of horizontal pole mount is similar as that of vertical mount.
7 Mounting the AP on the Wall
Attach the mounting bracket to the wall with user-supplied expansion screws. M8 x 60 screws are recommended.
