1 Install the WS-MBI-WALL04 bracket on a wall/ceiling with the two screws and screw-in anchors.
Ensure that the locking tab on the WS-MBI-WALL04 bracket is on the bottom side during
installation.

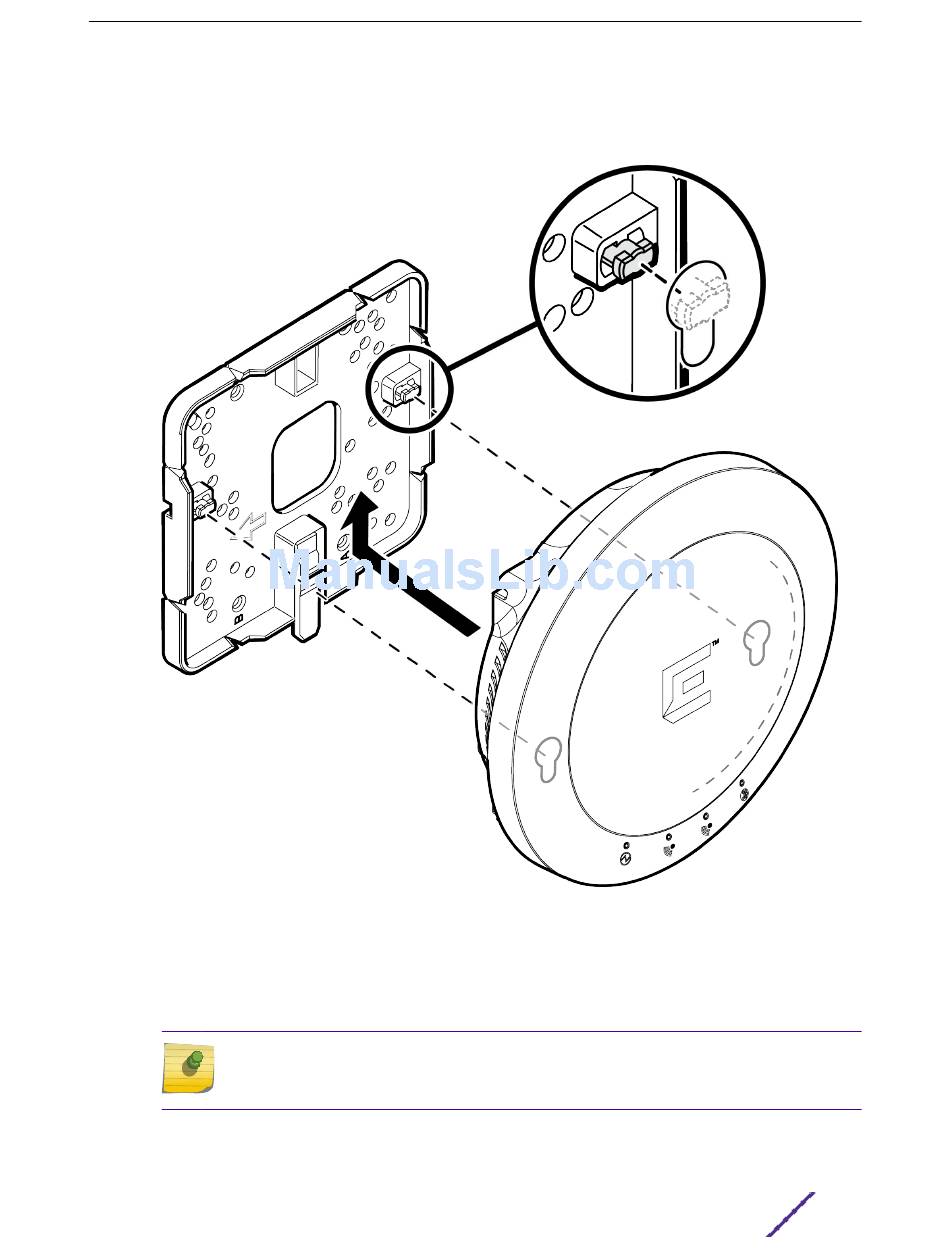

Figure 3: Mounting the AP using the WS-MBI-WALL04 Bracket
•
Use the WS-MBI-WALL04 as a template and mark the holes to be used to mount the AP. It is
recommended to use the holes marked "A" or "B".
•
Drill the holes and attach the bracket using the screws and screw-in anchors.
Note
When using the "A" or "B" holes, if the holes are not near the corners of the bracket, you
can break off the corner to decrease the bracket's visibility once the AP is installed.
2 Connect the LAN/Ethernet cable to the AP.
