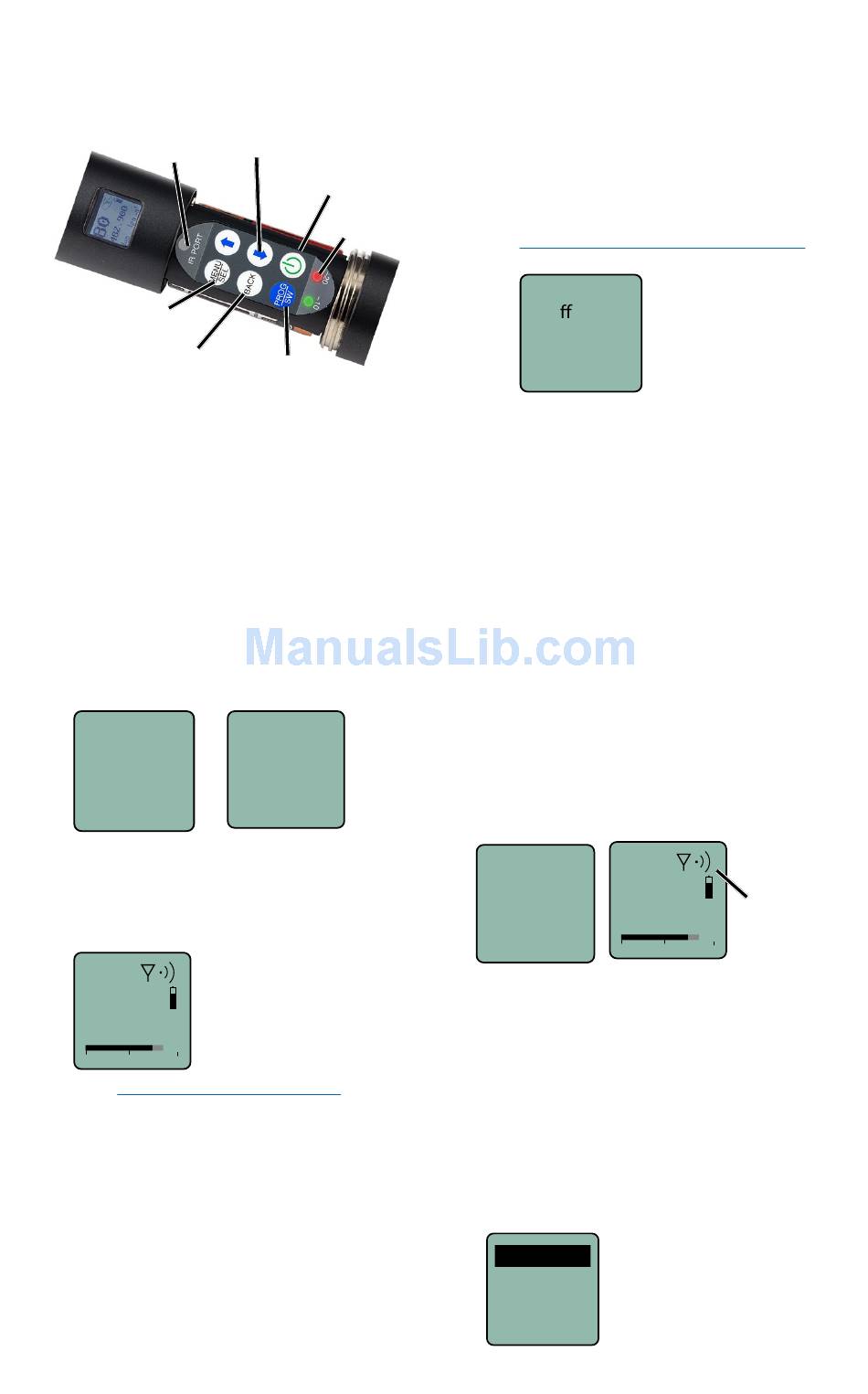

Controls and Functions

IR Sync Port
Enter Menu and
Select Item
Previous
Screen
Powering On
Press and hold the Power Button for
several seconds until a countdown on
the LCD is completed. The countdown
from 1 through 3 will appear on the
LCD, followed by a display of the model,
firmware version, frequency block and
compatibility mode.
Hold
for
Rf On
...3
When you release the button, the unit will be
operational with the RF output turned on and
the Main Window displayed.
5
A
623.400
-40 -20 0
NOTE: If the Power Button is
released before the countdown is
completed, the unit will boot up in the
"standby" mode with the RF output
turned off.
www.lectrosonics.com
UP/DOWN Buttons for
Menu Item Selection
Power Button
Modulation
LEDs
Side Button
Setup Switch
HHa
V1.01
Blk 24
Hybrid
The Main Window

Powering Off

Press and hold the Power Button for
several seconds and observe the count-
down on the LCD. The countdown on the
LCD will progress from 3 to 1 and the
power will then be turned off. This can be
done from any menu or screen.
Powering
O . . .
1
return to the same screen or menu
that was displayed previously.

Standby Mode

A brief push of the Power Button turns
the unit on and places it into a "standby"
mode (not transmitting). This allows the
transmitter to be set up without the risk
of creating interference for other wireless
systems that are operating in the vicinity.
A notice will appear briefly confirming
that the RF output of the transmitter is
turned off, followed by the Main Window.
A symbol will blink as a reminder that the
RF output is turned off.
Rf
Off
Power Menu
With the unit turned on, a brief push of
the Power Button will reveal a menu al-
lowing you to choose between Resume,
Pwr Off, Rf On?, and Backlit. Use the
UP/DOWN buttons to select one of these
menu items, then press the MENU/SEL
button to confirm this action.
Resume
Pwr Off
Rf On?
Backlit
NOTE: If the Power
Button is released
before the
countdown is
completed, the unit
will remain turned
on and the LCD will
5
A
Symbol
623.400
blinks when
RF output is
-40 -20 0
turned OFF
Continued on pg 4.
