Npn Proxy Switch +5V Only; Opto Sensor Input; Input Signal Or Drive Error Input - MachMotion IO6 V4.0 Manual

NPN Proxy Switch +5V only.

3.
Jameco part number 167020

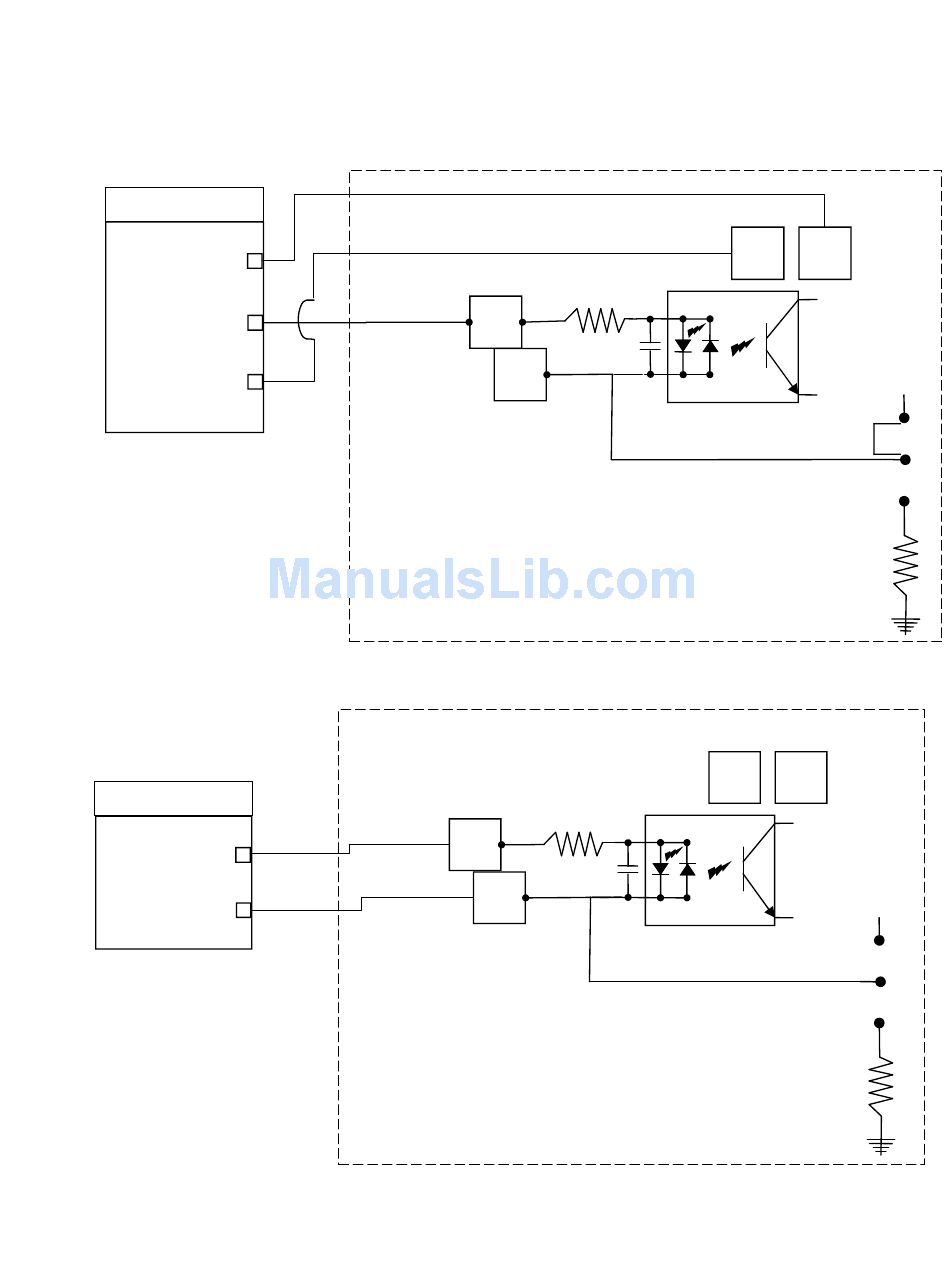

Opto sensor input

(Omron EE-SX872 NPN Sensor) 5V sensing only.
Sensor
+V Brown
Load Black
0v Blue
4. +5V input signal or drive error input
User Input
+5V Signal Input
GND
IO6 Board
330ohm
XX-X
4.7nf
X-XXL
IO6 Board
330ohm
XX-X
4.7nf
X-XXL
14
+5V
GND
+5
V
Jumper
3.9K
GND
GND +24V
+5
V
No Jumper
No Jumper
3.9K
GND
