MachMotion IO6 V4.0 Manual page 14

LED indicator below the corresponding input below the Primary terminal block. See
page 17 figure 13 and 14.
These seven inputs can be connected to a number of different types of devices and
configured as described in the next section (10) entitled, OPTO-Input Connection
Guide.

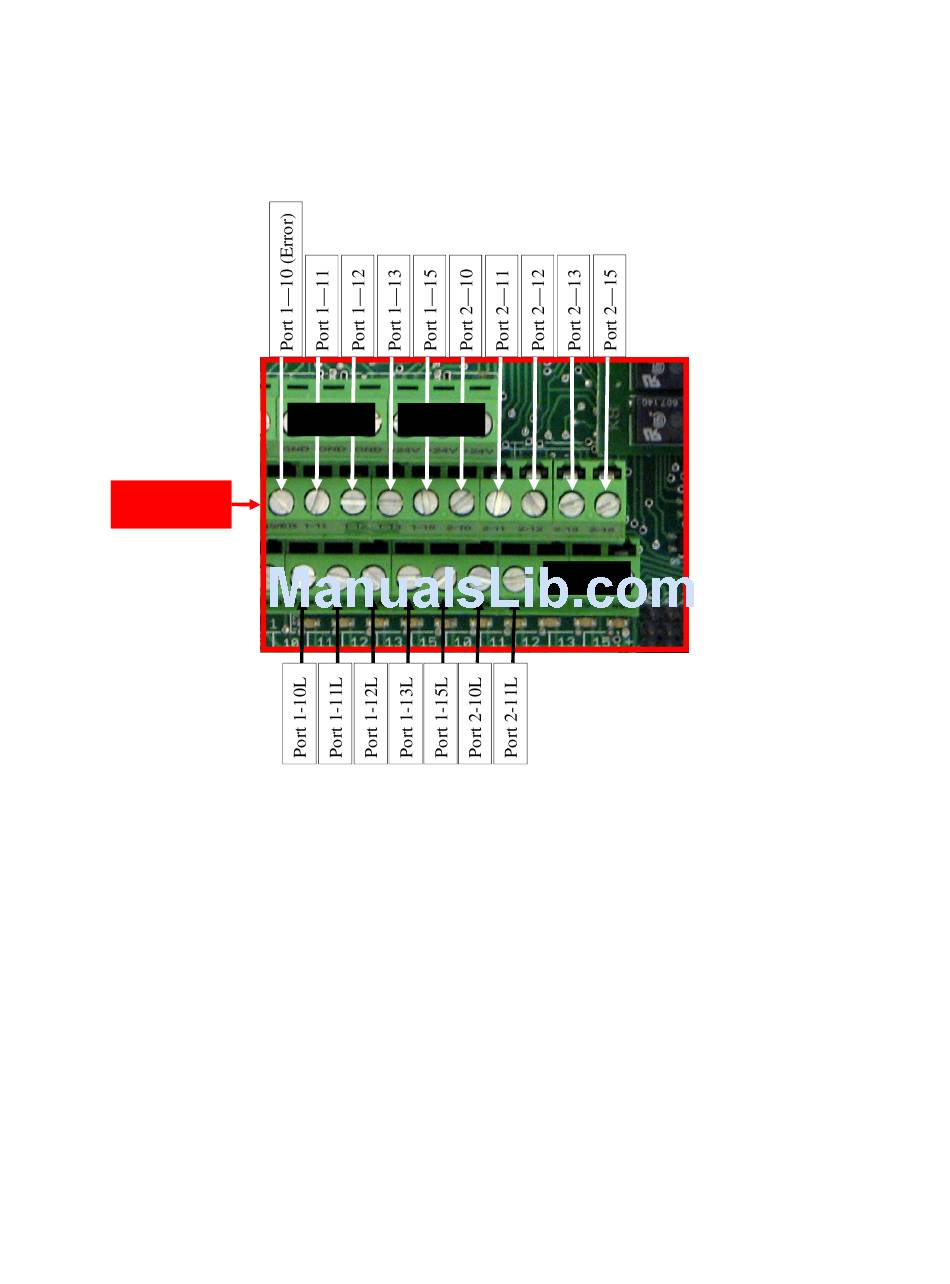

GND +24v
Primary
Terminal
Block
+5v
Figure 9
10. Opto-input connection guide
This guide will assist the systems integrator in the installation of the seven general
purpose opto-isolated inputs. The options for the inputs are given as examples in this
guide.
The various options are selected by installing a Jumper on one of two pairs of pins for
each of the seven inputs. The Jumper will connect between a center pin and either a
pin in the row labeled GND or to a pin in the row labeled +5V. The Jumpers correspond
to the appropriate input port/pins and are labeled A10, A11, A12, A13, A15, B10, and
B11 on the printed circuit board.
11
