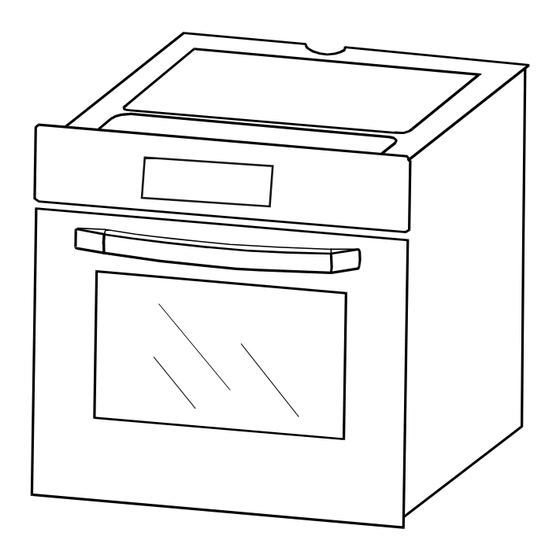

Belling IB608FPYL Operating And Installation

Hide thumbs
Table of Contents

Advertisement

Quick Links

IB608FPYL
OPERATING AND INSTALLATION
INSTRUCTIONS OF
TOUCH CONTROL
BUILT-IN OVEN

Advertisement

Table of Contents
loading

Related Manuals for Belling IB608FPYL

Summary of Contents for Belling IB608FPYL

  • Page 1 IB608FPYL OPERATING AND INSTALLATION INSTRUCTIONS OF TOUCH CONTROL BUILT-IN OVEN...
  • Page 2 Dear Customer, We take offering quality products more than your expactation as goal, offers you the products produced in modern facilities carefully and particularly tested for quality. Your manual is prepared in order to help you to use your appliance that is manufactured by the most recent technology, with confidence and maximum efficiency.
  • Page 3 Contents 1- Presentation and size of product 2- Safety Warnings 3- Preparation for installation and use 4- Using the oven 5- Cleaning and maintenance of your product 6- Service and Transport...

  • Page 4: Part 1: Presentation And Size Of Product

    PART 1: PRESENTATION AND SIZE OF PRODUCT LIST OF COMPONENTS : 1- Control panel 8- Wire Grill 2- Handle 9- Racks 3- Oven Door 10- Oven Light 4- Child Lock 11- Turbo Heating Element(behind the plate) 5- Tray 12- Fan (behind the plate) 6- Lower Heating Element (behind the plate) 13- Air Outlet Shutters 7- Upper Heating Element (behind the plate)

  • Page 5: Part 2: Safety Warnings

    PART 2: SAFETY WARNINGS READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY. THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.
  • Page 6 - During use, handles held for short periods in normal use can get hot. - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or damage to the surface.
  • Page 7 Installation Warnings - Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.

  • Page 8: Part 3: Preparation For Installation And Use

    PART 3: PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. Make sure to read the manual to obtain successful results and not to experience any problems in the future. The information given below contain rules that are necessary for correct positioning and service operations.
  • Page 9 3.2. INSTALLATION OF BUILT_IN OVEN Cabinet cut-out sizes...
  • Page 10 The dimensions and material of the cabinet in which the oven will be installed must be correct and resistant to increases in temperature. In a correct installation, contact with electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to ensure that they cannot be removed by using any kind of tool.
  • Page 11 3.3. WIRING AND SAFETY OF BUILT_IN OVEN The instructions given below must be followed without fail during wiring : The earthing cable must be connected via the screw with the earthing mark. Supply cable connection must be as shown in Figure 1. If there is no earthed outlet conforming to regulations in the installation environment, call the Authorized Service immediately.
  • Page 12 3.4. GENERAL WARNING AND PRECAUTIONS Your appliance is produced in conformity with the relevant safety instructions relating to electrical appliances. Maintanance and repair works must be performed only by Authorized Service technicians trained by the manufacturer firm. Installation and repair works, performed without observing the rules may be dangerous.

  • Page 13: Part 4: Using The Oven

    PART 4: USING THE OVEN 4.1. USING THE OVEN FUNCTION Table 1 The oven light will be turned on. The oven light, the red warning light and the fan will be turned on. Performs the function of defrosting the frozen foods. The oven’s thermostat and warning lights, the fan and the turbo heater will be switched on.
  • Page 14 Defrost Function : You can start the defrost operation by putting the frozen food into oven and bringing the button to the indicated mark. This function does not cook/bake the food; it only helps defrost it within a short time. Put the food to be defrosted on the wire rack that you will place on the third rack support from the bottom (Figure 2).
  • Page 15 Fan and the Lower - Upper Heating Element Function: This is the position where the air is coming from the lower and upper heating elements is circulated into the oven by the fan motor and blade. Adjust the thermostat button of your oven to temperature recommended on the cooking table for the cooking operation yo will perform.

  • Page 16: Energy Saving

    As the oven will be hot, stay away from the oven and keep your children away as well. Grill, Roast Chicken and Fan Function : At this function; ensuring complete frying by working together, the fan, the grill and the upper heating element perform the operation.
  • Page 17 4.2. HOW TO USE THE TOUCH CONTROL UNIT FUNCTION DISPLAY demo TIME DISPLAY auto boost TEMPERATURE DISPLAY boost yogurt KEY LOCK ON-OFF MODE boost PLUS FUNCTION SELECTION BOOST PLAY/PAUSE PYROLYTIC MINUS THERMOSTAT The control unit switches off after 5 minutes, if no function is selected and is changed. The appliances is operated using Touch control sensor fields.
  • Page 18 4.2. HOW TO USE THE TOUCH CONTROL UNIT During the WAIT mode, the desired cooking function can be selected by touching P sensor. Every touching of P sensor change the oven functions as below. Some of these cooking functions may not be exist according to your model. Lamp →...
  • Page 19 Adjusting the Day Time: When the built in oven installed firstly the time of day must be adjusted according to below instructions. Touch the ON/OFF to pass the Wait mode. During this mode, touch the MODE for 5 seconds. The Day Time symbol will be flashed continuously and you can adjust it with ˄ and ˅. To complete the Day time adjustment, touch the MODE one more time or wait at least for 5 seconds.
  • Page 20 First; keep touching on the MODE for twice (until you see Cooking Duration Time symbol on the timer screen). Adjust the cooking period for the food you wish to cook, by using the ˄ and ˅ while timer is in this position. Some time after the adjustment operation is completed;...
  • Page 22 4.3. ACCESSORIES USED IN THE OVEN It is recommended that you use the containers indicated on the table depending on the food you will cook in your oven, you can also use glass containers, cake cutters, special oven trays suiatble for use in your oven, available in the market. Pay attention to the information given by the mufacturer firm concerning this issue.
  • Page 23 Rotisserie skewer insertion hole lid skewer insertion hole skewer handle skewer tip Use of rotisserie accessories Pass the skewer through the chicken and lock the clamps, insert the tip of the skewer into the hole found at the rear panel of cavity and make sure that it completely leans on the frame and fits in motor shaft.
  • Page 24 Pan anti-tilting wire To locate grid correctly in the cavity, put it to any rack and push the grid up to the end. The pan anti-tilting wire must be placed inside of the cavitiy. WARNING- Fit the grid correctly into any correspondingrack in the oven cavity and push it to the end.

  • Page 25: Maintenance

    PART 5: CLEANING AND MAINTENANCE OF YOUR OVEN 5.1. CLEANING Before starting to clean your oven, be sure that all control buttons are off and your appliance is cooled off. Unplug the appliance. Do not use cleaning materials containing particles that might scratch the enamelled and painted parts of your oven.

  • Page 26: Part 6: Service And Transport

    PART 6: SERVICE AND TRANSPORT 6.1. REQUIREMENTS BEFORE CONTAINING TO SERVICE If the oven does not operate : The oven may be plugged off, there has been a black out. On models fitted with a timer, time may not be regulated. If the oven does not heat : The heat may be not adjusted with oven’s heater control switch.
  • Page 27 52204835...
