USER GUIDE

Universal Rear
Speaker Kit
NS-HURSK18
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-HURSK18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Insignia NS-HURSK18

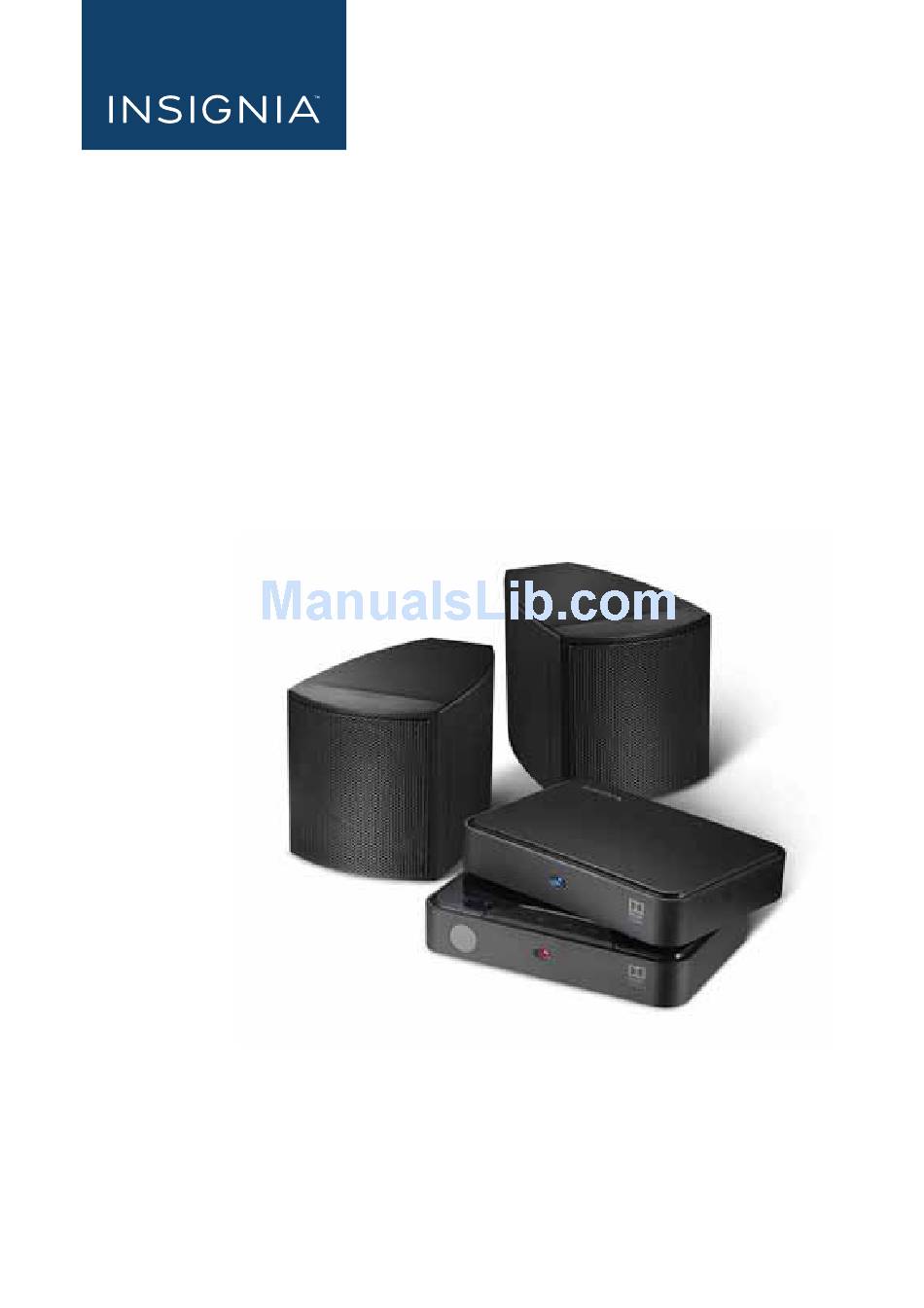

  • Page 1: User Guide

    USER GUIDE Universal Rear Speaker Kit NS-HURSK18 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY ........23 Introduction Congratulations on your purchase of an Insignia Universal Rear Speaker Kit. It features a variety of connections and a remote control for easy operation.
  • Page 3 Universal Rear Speaker Kit 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 NS-HURSK18 21 The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two hours and can lead to death. 22 Batteries should not be exposed to excessive heat such as sunshine, fire, or the like.
  • Page 5: Package Contents

    Universal Rear Speaker Kit Package contents Transmitter Speakers (2) Rear Receiver REAR Remote control with CR2025 battery AC adapter AC adapter 12V 1.5A 5V 1A Quick Setup Guide 10 ft. speaker wires (2) Optical cable (2) 3.5 mm audio cable 3.5 mm male to RCA female adapter 3.5 mm female to...
  • Page 6: Features

    NS-HURSK18 Features Speakers Back view ITEM DESCRIPTION Speaker Produces sound. Hanging hole Used to hang your speaker on a wall. Speaker jacks Connect speaker wires from the receiver (black/red for right channel and grey/red for left channel) to the speakers here.
  • Page 7: Transmitter

    Universal Rear Speaker Kit Transmitter Back view ITEM DESCRIPTION Optical indicator LED Lights when using an optical (TV or DVD) sound source (default). AUX indicator LED Lights when using an AUX (tablet or mobile device) sound source. (power) button Press to turn on the transmitter. Press again to put the transmitter into standby mode.
  • Page 8: Receiver

    NS-HURSK18 ITEM DESCRIPTION Sound/pairing button - Press once to switch the sound mode (surround on & surround off). - Press and hold to pair the transmitter to the receiver. Factory only DO NOT USE. This jack is for factory use only.
  • Page 9: Remote Control

    Universal Rear Speaker Kit Remote control Rear REAR BUTTON DESCRIPTION (Power) Press to turn on the speakers. Press again to put the speakers into standby mode. SOURCE Press to select the OPTICAL or AUX sound source. REAR Press + to increase the surround effect or - to decrease the surround effect. DELAY Press + to increase the sound delay or - to decrease the sound delay.
  • Page 10: Using The Remote Control

    Programming a universal remote Rear REAR If you want to use your Insignia TV remote to control the rear speaker kit, you can program the rear speaker kit to take commands from your TV remote. www.insigniaproducts.com...
  • Page 11: Setting Up Your Speakers

    Universal Rear Speaker Kit 1 Press and hold the + volume and - volume buttons on the transmitter for three seconds to enter IR learning mode. 2 The optical and aux indicator LEDs blink slowly at the same time for 10 seconds.
  • Page 12: Step 2 - Connecting The Transmitter

    NS-HURSK18 Step 2 - Connecting the transmitter Digital Optical connection (best) Back of the transmitter Sound bar Audio source (TV, Digital optical cable Blu-ray, or cable box) (included) Input port: 1 Connect one end of the digital optical cable (included) to the optical in jack of the transmitter.
  • Page 13 Universal Rear Speaker Kit 1 Connect one end of the 3.5 mm audio cable (included) to the aux in jack of the transmitter. 2 Connect the other end of the 3.5 mm audio cable into the audio output ports on your audio source device, such as a tablet or mobile device. OPTION 2: Back of the transmitter RCA to 3.5 mm...
  • Page 14: Step 3 - Connecting The Speakers To The Receiver

    NS-HURSK18 OPTION 2 Back of the transmitter 3.5 mm cable (included) Sound bar 3.5 mm to RCA adapter (included) 1 Connect one end of the 3.5 mm audio cable (included) to the aux out jack of the transmitter. 2 Connect the other end of the 3.5 mm audio cable to the RCA to 3.5mm adapter (included), then connect the other end to the soundbar.
  • Page 15: Step 4 - Connecting The Ac Adapter

    Universal Rear Speaker Kit Step 4 - Connecting the AC adapter Cautions • Make sure that the electrical outlet matches the AC adapter’s input requirements of 100-240 V, 50/60 Hz before connecting. • Use only the AC adapter provided for the device specified.
  • Page 16: Step 5 - Connecting The Receiver To The Transmitter

    NS-HURSK18 Step 5 - Connecting the receiver to the transmitter Before you can use your speakers, you need to pair the transmitter to the receiver. Note Place the transmitter and receiver within 30 ft. (10 m) of each other. Pairing your devices 1 Turn on the transmitter and receiver.
  • Page 17: Positioning The Speakers

    Universal Rear Speaker Kit Positioning the speakers Warning Improper installation can result in serious injury or damage to your speakers. If necessary, seek the assistance of a professional. Cautions If you are installing screws into drywall or concrete, use wall anchors designed for that type of surface. You can set the speakers on a flat surface or mount them on a wall.
  • Page 18: Using Your Speakers

    NS-HURSK18 Using your speakers This system lets you access two different sound sources: Optical or AUX. Listening to your speakers 1 Press the (Power) button on the transmitter or the remote control to turn on your speaker system. The power indicator on the transmitter turns off.
  • Page 19: Maintaining Your Speakers

    Universal Rear Speaker Kit Maintaining your speakers Replacing the remote control battery 1 Squeeze the battery tray’s sides together and slide it out of the remote control. 2 Remove the old battery and insert the new 3V lithium battery (CR2025) into the battery tray.
  • Page 20: Troubleshooting

    NS-HURSK18 Troubleshooting Check this list for a possible troubleshooting solution before calling for service. PROBLEM POSSIBLE SOLUTIONS The power does not come on. • Make sure that the AC adapter is securely plugged into the power outlet and the affected transmitter or receiver.
  • Page 21: Specifications

    Universal Rear Speaker Kit PROBLEM POSSIBLE SOLUTIONS My TV remote does not control my • If you are using a universal remote control, make sure that it is programmed to your speakers. See Programming a universal speakers. remote on page 10. •...
  • Page 22: Fcc Warning

    NS-HURSK18 FCC warning Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment. Canada IC statement This device complies with Industry license-exempt RSS standard(s). Operation is subject to...
  • Page 23: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 24 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
  • Page 25 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V2 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 17-0639 ©2017 Best Buy. All rights reserved.
