Insignia NS-HURSK18 Quick Setup Manual

QUICK SETUP GUIDE
Universal Rear
indicator LED
Speaker Kit
NS-HURSK18
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, enter NS-HURSK18 in the search box,
then press ENTER. Next to Features, click Support & Downloads, then
next to User Guide, click the language you want.

PACKAGE CONTENTS

• Transmitter • 3.5 mm male to RCA female adapter
• Receiver • 3.5 mm female to RCA male adapter
• Remote control • AC adapter 5V 1A
• Speakers (2) • AC adapter 12V 1.5A
• 10-foot speaker wires (2) • Optical cable (2)
• 3.5 mm audio cable • Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.

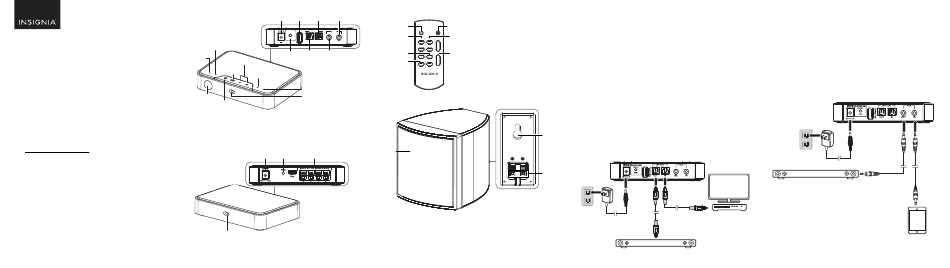

FEATURES

DC IN Factory Optical AUX in
jack only in jack jack
Transmitter
OPTICAL AUX
SURROUND
ON/OFF
PAIR
5V 1A
AUX indicator LED
Sound & Optical AUX out
Volume out jack jack
Optical pairing
down & up
button
Source
button
Dolby
indicator LED
PCM indicator LED
IR
Power indicator
sensor
Power • Lights red when the transmitter is in
button
standby mode.
• Blinks red when the transmitter is muted.
• Turns off when the transmitter is turned on.
Receiver
Speaker
DC IN Pairing
jacks
jack button
Power indicator
• Lights red when the receiver is in standby mode.
• Blinks blue when the receiver is in pairing mode.
• Lights blue when the receiver is on and paired with the transmitter.
Remote
Power button Mute button
SOURCE SOUND MODE
SOURCE SOUND MODE VOLUME
OPTICAL REAR
+
STEREO
AUX
SURROUND MASTER VOL +/– buttons
+ +
DELAY _
_ _
DELAY REAR MASTER
NS-HURSK18
Speakers
Hanging hole
Speaker
Speaker jacks

SETTING UP YOUR SPEAKER KIT

Choosing your connection
Look at your sound source device and choose the connection option that
fits your audio source (Digital Optical or AUX).
Note: You can connect several devices and switch the sound source as required.
Connecting the transmitter

Digital Optical connection (best)

1 Connect one end of the digital optical cable (included) to the Optical In
port on the transmitter.
2 Connect the other end into the Digital Optical Output port on your
audio source device.
3 Connect one end of another digital optical cable (included) to the
Optical Out port on the transmitter.
4 Connect the other end to your soundbar.
5 Change the device's audio output to RAW format (typically found in
audio settings). Refer to the documentation that came with your audio
source device for more information.
Back of the transmitter
5V 1A
Audio source (TV,
AC adapter
Digital optical cable
Blu-ray, or cable box)
(included)
Soundbar

OPTION 1 - AUX connection (good)

1 Connect one end of a 3.5 mm audio cable (included) to the AUX In jack
on the transmitter.
2 Connect the other end of the 3.5 mm audio cable into the Audio
Output port on your audio source device, such as a tablet or mobile
device.
3 Connect one end of another 3.5 mm audio cable (not included) to the
Aux Out jack on the transmitter.
4 Connect the other end of the 3.5 mm audio cable to the soundbar.
Back of the transmitter
5V/1A
AC adapter
3.5 mm
Soundbar
Audio Cable
Audio source
(tablet or smartphone)
