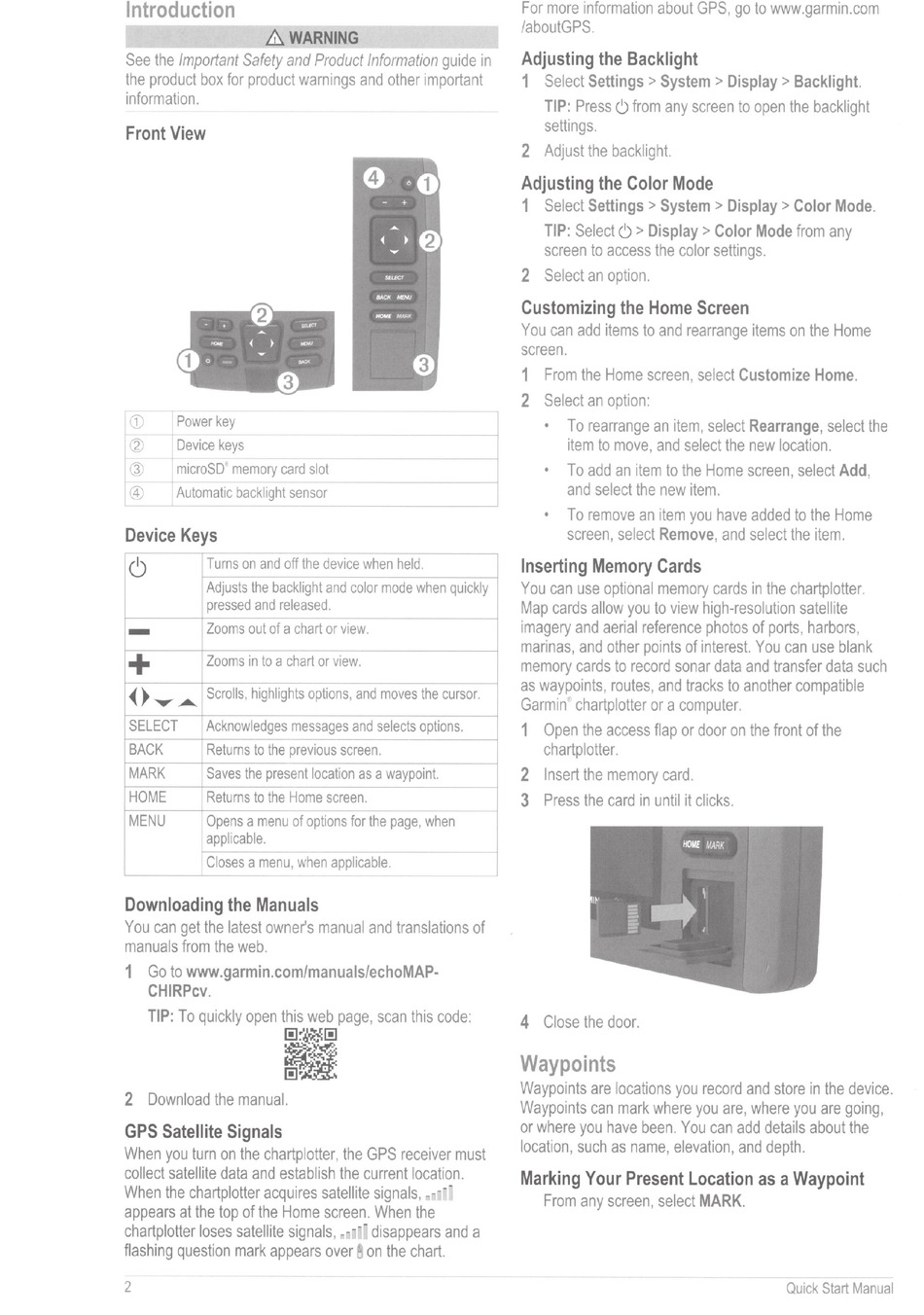

Introduction
&.
WARNING
See the Important Safety and Product Information guide in
the product box for product warnings and other important
information.
Front View
' 1)
-power key
. 2)
Device keys
']:l
microSD memory card slot
'- 4 )
Automatic backlight sensor
Device Keys
6
Turns on and off the device when held.
-
+
Adjusts the backlight and color mode when quickly
pressed and released.
-+--
Zooms out of a chart or view.
Zooms in to a chart or view.
f - - - - - + -
~) '¥'
.A..
Scrolls, highlights options, and moves the cursor.
J
SELECT Acknowledges messages and selects options.
J
BACK
---r
Returns to the previous screen.
'MARK
I
Saves the present location as a-w-a-yp-oi-nt.
HOME Returns to the Home screen.
' - - - - - +-
MENU Opens a menu of options for the page, when
applicable.
L __
~ C_ I os _ es
a menu, when applicable.
Downloading the Manuals
You can get the latest owner's manual and translations of
manuals from the web.
1 Go to www.garmin.comlmanualslechoMAP-
CHIRPcv.
TIP: To quickly open this web page, scan this code:
~~t~~
~i*l
1!1·~
2
Download the manual.
GPS Satellite Signals
When you turn on the chartplotter, the GPS receiver must
collect satellite data and establish the current location.
When the chartplotter acquires satellite signals, " - "
appears at the top of the Home screen. When the
chartplotter loses satellite signals, _
1i
disappears and a
ftashing question mark appears
over~
on the chart.
2
For more information about GPS, go to www.garmin.com
/aboutGPS.
Adjusting the Backlight
1 Select Settings
>
System
>
Display
>
Backlight.
TIP: Press
6
from any screen to open the backlight
settings.
2
Adjust the backlight.
Adjusting the Color Mode
1 Select Settings
>
System
>
Display
>
Color Mode.
TIP: Select
6
>
Display
>
Color Mode from any
screen to access the color settings.
2
Select an option.
Customizing the Home Screen
You can add items to and rearrange items on the Home
screen.
From the Home screen, select Customize Home.
2
Select an option:
• To rearrange an item, select Rearrange, select the
item to move, and select the new location .
• To add an item to the Home screen, select Add,
and select the new item.
• To remove an item you have added to the Home
screen, select Remove, and select the item.
Inserting Memory Cards
You can use optional memory cards in the chartplotter.
Map cards allow you to view high-resolution satellite
imagery and aerial reference photos of ports, harbors,
marinas, and other points of interest. You can use blank
memory cards to record sonar data and transfer data such
as waypoints, routes, and tracks to another compatible
Garmin chartplotter or a computer.
1
Open the access flap or door on the front of the
chartplotter.
2
Insert the memory card.
3
Press the card in until it clicks.
4
Close the door.
Waypoints
Waypoints are locations you record and store in the device.
Waypoints can mark where you are, where you are going,
or where you have been. You can add details about the
location, such as name, elevation, and depth.
Marking Your Present Location as a Waypoint
From any screen, select MARK.
Quick Start Manual
