- Page 1 ZXR10 2600 Product Description...
- Page 3 Updating format © 2009 ZTE Corporation. All rights reserved. ZTE CONFIDENTIAL: This document contains proprietary information of ZTE and is not to be disclosed or used without the prior written permission of ZTE. Due to update and improvement of ZTE products and technologies, information in this document is subjected to change without notice.
-
Page 4: Table Of Contents
4.3.2 Data Processing Procedure ..................10 Technical Specifications ..................13 Networking ........................ 14 Workgroup Networking Mode ..................14 MAN Broadband Access Networking Mode .............. 14 Acronyms and Abbreviations ................. 16 © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary... - Page 5 Front Panel of the ZXR10 2609-FU ................8 Figure 7 Back Panel of the ZXR10 2609-FU ................8 Figure 8 ZXR10 2600 Hardware Architecture with Fixed Ports ........... 9 Figure 9 Software Architecture....................10 Figure 10 Typical Workgroup Networking Structure ..............14 Figure 11 TYPICAL NETWORKING OF MAN BROADBAND ACCESS ........
-
Page 7: Overview
Overview ZXR10 2600 are access switches with excellent performance and diversified functions promoted by ZTE. It provides small and medium density of LAN ports to satisfy the requirements of branches of small to medium enterprises, department network building and carriers. - Page 8 SSH, Telnet, RMON and ZGMP cluster management. Being able to implement graphic management during the whole course in the whole network working with NetNumen N31 network management system © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary...
-
Page 9: Highlight Features
Highlight Features Full wire-speed forwarding The switching system of ZXR10 2600 series adopts the bus architecture. The switching capacity of the 2609, 2609-LE/2609-FU backplane is 6.4 Gbps. The full wire speed layer 2 forwarding capability provides 100% throughput, zero packet loss ratio and low delay to provide high performance user accesses. -
Page 10: Compact Structure
MAN, and community access point. With a compact small structure, adopting external AC power supply, ZXR10 2600 series L2 Ethernet switches can be deployed in community racks or as desktop application. -
Page 11: Functionality
Port mirroring: supporting ingression mirroring and egression mirroring. Cross- device can be implemented for mirroring source and destination in case of Flow control: half-duplex supports counter pressure. Full duplex supports 802.3x. ZTE Confidential Proprietary © 2009 ZTE Corporation. All rights reserved. -
Page 12: Device Management
IE. • ZGMP cluster management, command line mode or graphic mode can be selected. • Supporting SSHv2. • Supporting user network management local and remote authentication. © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary... -
Page 13: System Architecture

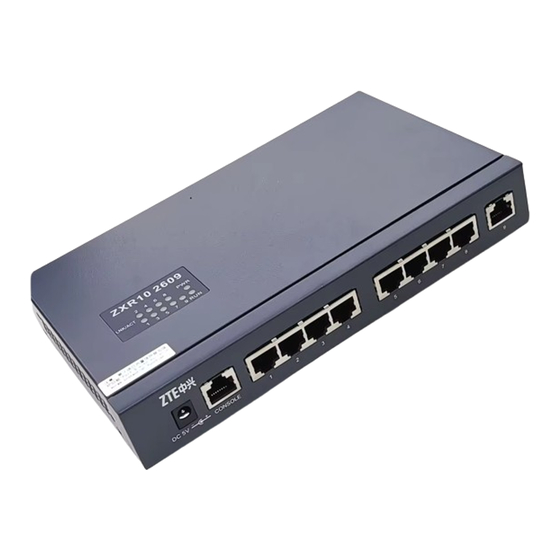

Console port, nine 10/100M electrical ports, and one power socket. Figure 3 Front Panel of the ZXR10 2609 • Back panel The back panel only provides ports for system grounding, as shown in Ошибка! Источник ссылки не найден.. ZTE Confidential Proprietary © 2009 ZTE Corporation. All rights reserved. -
Page 14: Console Port
Front Panel of the ZXR10 2609-FU • Back panel The back panel only provides ports for system grounding, as shown in Ошибка! Источник ссылки не найден.. Figure 7 Back Panel of the ZXR10 2609-FU © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary... -
Page 15: Fe Port
Each port of the 2609, 2609-FU has a LNK/ACT indicator. If the indicator is on, the link is activated. If the indicator blinks, data transfer is going on. 4.1.4 Cabling The ZXR10 2600 series switches all adopts the front cabling for the convenience of engineering implementation and clear cable routing. Hardware Architecture 4.2.1 Overall Architecture Ошибка! Источник... -
Page 16: System Software
ZXR10 2600 Product Description Figure 8 ZXR10 2600 Hardware Architecture with Fixed Ports SDRAM Switching network controller Integrated PHY FLASH CONSOLE The system hardware consists of the following parts: • 10/100M PHY: used for data coding. 1-port chip is used on the 10/100M PHY. -
Page 17: Data Processing Procedure
This process is called flooding. • Data forwarding: After making the forwarding decision, the switch will forward the data frame by means of the hardware. ZTE Confidential Proprietary © 2009 ZTE Corporation. All rights reserved. - Page 18 Learning: The switch checks the source address of the data frame and VLAN classification information and records them in the forwarding database. The port mode of ZXR10 2600 series is divided into access mode and trunk mode. The port mode determines the data output form, namely, whether the VLAN data packet is output directly or output with the Tag removed after the switch makes a forwarding decision.
-
Page 19: Technical Specifications
ZXR10 2600 Product Description Technical Specifications Table 2 The ZXR10 2600 series switches technical specifications Description Item 2609 2609-FU One console One Console port, eight port, eight 10/100M 10/100M Fixed Port downlink ports, downlink ports, Port and one and one 10/100M... -
Page 20: Networking
NMS of the entire MAN. It can also be managed with the network management and service management system established in the residential complex. Networking structure can be seen in Ошибка! Источник ссылки не найден.. © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary... -
Page 21: Figure 11 Typical Networking Of Man Broadband Access
AAA server IP backbone network BRAS Email/DNS/ DHCP server 100M/1000M ZXR10 3906 N× 10/100M 100M ZXR10 2609 ZXR10 2818S ZXR10 2826S 10/100M 10/100M 100M 1000M ZXR10 2852S/2826S Network/Property management server ZTE Confidential Proprietary © 2009 ZTE Corporation. All rights reserved. -
Page 22: Acronyms And Abbreviations
Media Access Control, a medium-independent function of sending and receiving frames with the CSMA/CD access method as specified by IEEE Media Access Control address, known as hardware or physical address, Address comprising six bytes © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary... - Page 23 Internet protocols. TCP/IP request protocol provided to virtual terminal equipment, which Telnet allows users to log in other computers and access another device. ZTE Confidential Proprietary © 2009 ZTE Corporation. All rights reserved.
