Benefits You Can Depend On
• Economical choice for controlling your Cadet
SoftHEAT baseboard heater
• Offers a 3° to 5° comfort range
• Available in white or white sand color to match
your SoftHEAT baseboard heater
• Use with Cadet SoftHEAT EBHN or EBHA
208, 240, or 120 volt baseboard models
• Double pole (4 wires) with positive off position
• 25 Amp
• Your EBKN SoftHEAT built-in thermostat is
guaranteed with a 1 year limited warranty
TOOLS REQUIRED:
• Phillips Screwdriver
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
1. Read all instructions before installing or using
this heater.
2. High temperatures may be generated under
certain abnormal conditions. Do not partially or
fully cover or obstruct the front of this heater.
3. Do not operate any heater after it malfunctions.
Disconnect power at service panel and have
heater inspected by a qualified electrician before
reusing.
4. To disconnect heater, turn controls to off, and
turn off power to heater circuit at main disconnect
panel.
All wiring connections inside wiring compartment
Black
Black

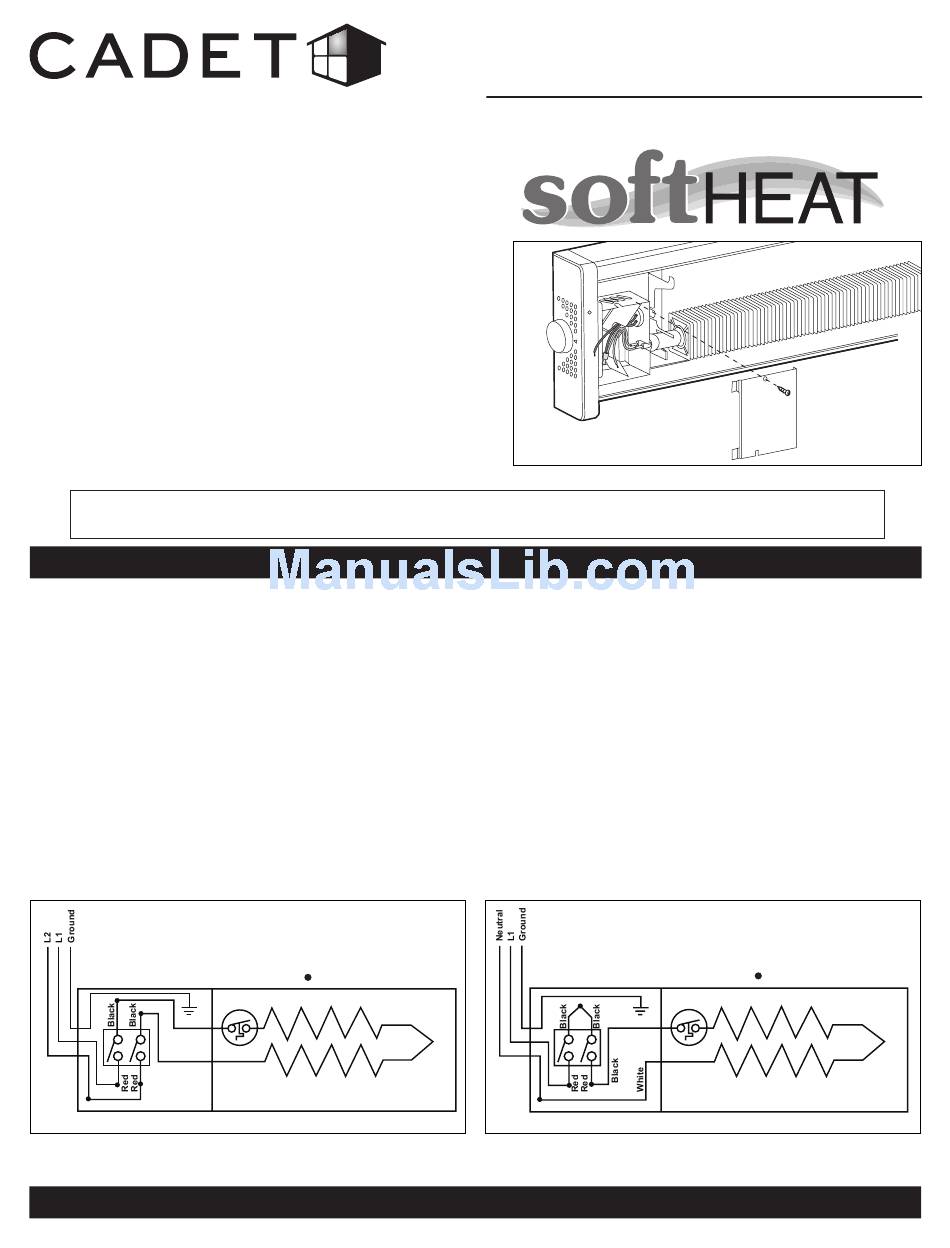

Figure 2
Wiring Diagram for use with 240 and 208 volt heater
www.cadetheat.com
• (4) Insulated Wire Connectors
IMPORTANT
High Temperature Limit
Heating Element
SAVE THESE INSTRUCTIONS
Tel: 360-693-2505
EBKN Built-In Thermostat Kit
Owner's Guide
EBKN
• (1) Strain Relief Connector if new
installation
5. Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the
heater.
6. To prevent a possible fire, do not block air
intakes or exhaust in any manner.
7. A heater has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline,
paint, or flammable vapors or liquids are used or
stored.
8. Do not use outdoors.
All wiring connections inside wiring compartment
Figure 3
Wiring Diagram for use with 120 volt heater
PO Box 1675 Vancouver, WA
Wiring
Compartment
Cover
High Temperature Limit
Heating Element
98668-1675
Figure 1
Page 1
