TPA-MHL2-8R – Quick Start Guide

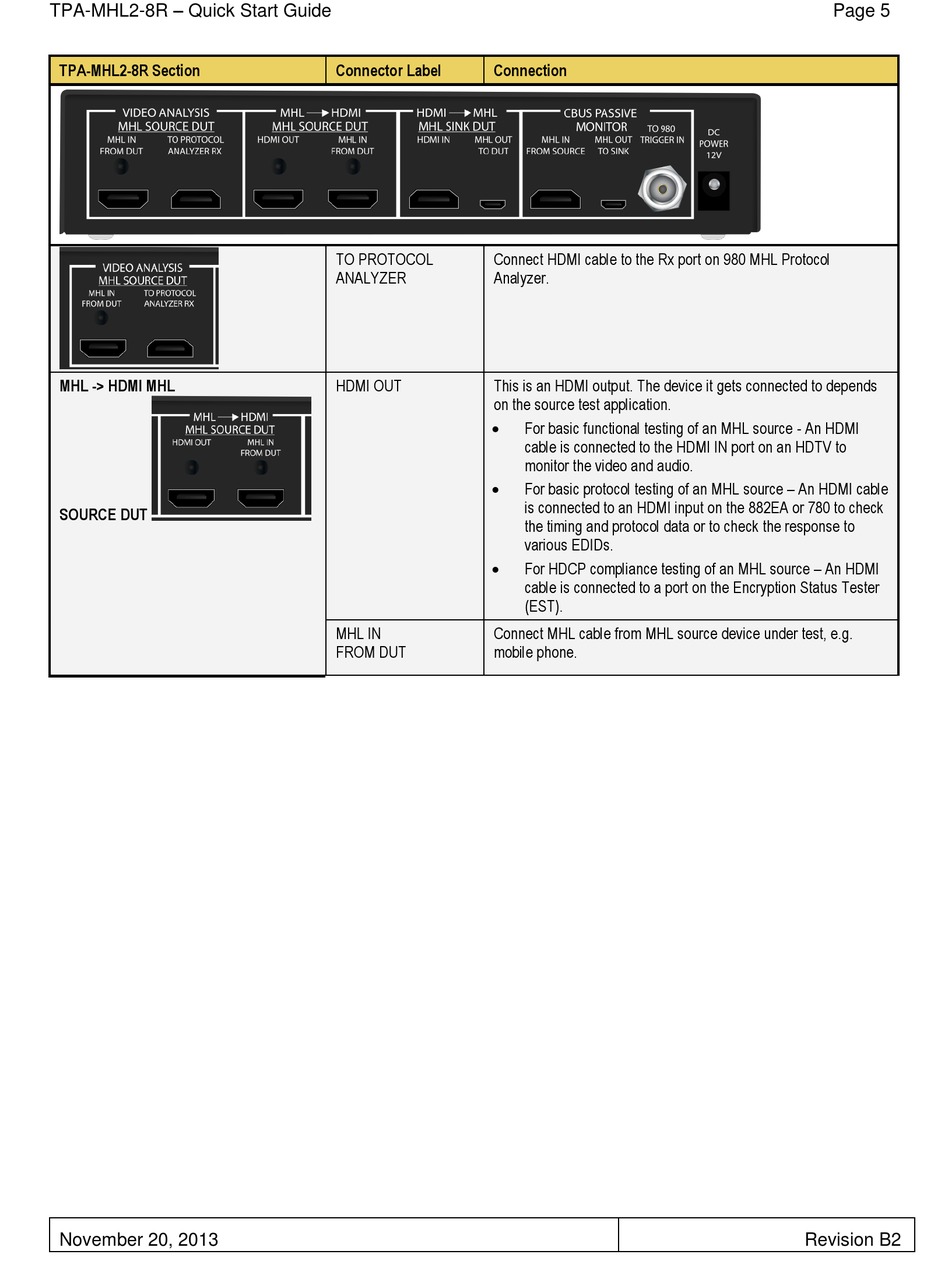

TPA-MHL2-8R Section
MHL -> HDMI MHL
SOURCE DUT
November 20, 2013
Connector Label Connection
TO PROTOCOL Connect HDMI cable to the Rx port on 980 MHL Protocol
ANALYZER Analyzer.
HDMI OUT This is an HDMI output. The device it gets connected to depends
on the source test application.



MHL IN Connect MHL cable from MHL source device under test, e.g.
FROM DUT mobile phone.
For basic functional testing of an MHL source - An HDMI
cable is connected to the HDMI IN port on an HDTV to
monitor the video and audio.
For basic protocol testing of an MHL source – An HDMI cable
is connected to an HDMI input on the 882EA or 780 to check
the timing and protocol data or to check the response to
various EDIDs.
For HDCP compliance testing of an MHL source – An HDMI
cable is connected to a port on the Encryption Status Tester
(EST).
