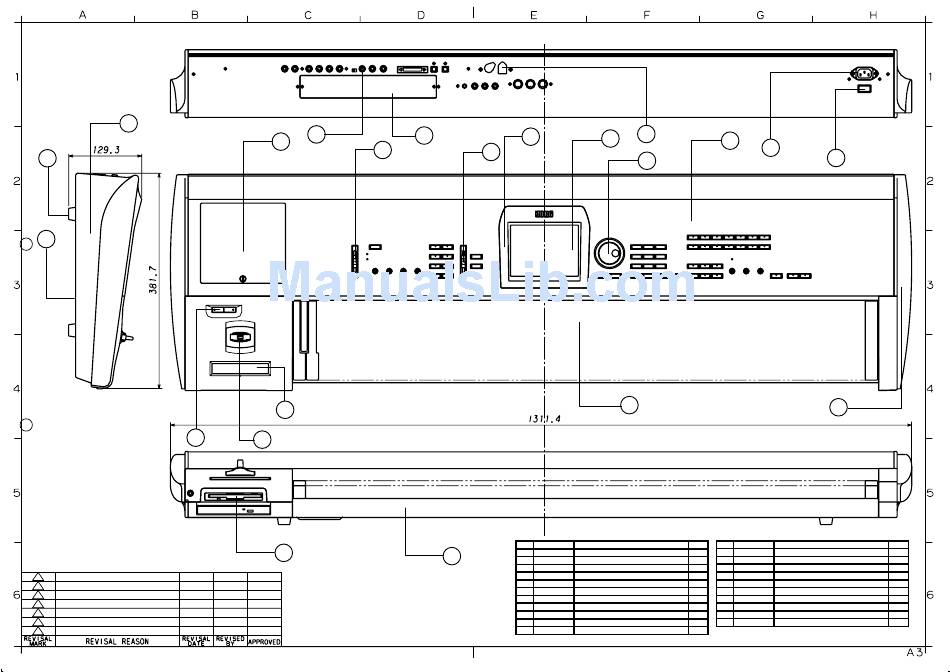

Korg Triton Studio Service Manual page 4

14
16
17
8
21
4
3
20
10
9
18
W=1311.4mm
D=381.7mm
H=129.3mm
Weight=19.61kg
5
1
20
NO PART CODE PART NAME
1 313005900 TOUCH PANEL LCD KGJ-01S-7
19
2 420004500 KEYBOARD FS-E76
3 641041716 X-0100 SIMM COVER KOC-C30581
4 641041695 X-0100 OP PANEL 1 KOC-C41237
5 646082300 X-0100/10/20 LCD HOOD E10195-1
6 641041593 X-9200 OP PLATE 2 KOC-C41187
7 620044100 X-610 ENCODER KNOB(W GREY)
8 620044600 X-610 CONTROL KNOB ASSY(WG)
9 646083300 X0180 JOYSTICKASSY(WG)H30214-2
10 415003700 KX-7100 SENSOR 1
11 641041676 X-0110 PANEL KOC-C10222
6
11
12
7
2
Q'TY NO PART CODE PART NAME
1 12 540020200 INLET SOCKET SS-7B
1 13 620024600 X-952 POWER SW KNOB E40304-2
1 14 646081000 X-0100 SIDE PANEL L KOC-E10193
1 15 646081100 X-0100 SIDE PANEL R KOC-E10194
1 16 500022500 CASE LEG FF-004
1 17 641041720 X-0110 BOTTOM COVER KOC-C10230
1 18 435003200 HALF INCH FDD(2MODE) D353F3
19 641041697 X-0110 FRONT BAR KOC-C30569-2
1
1 20 620044000 X-631 SVR KNOB(W GREY)
1 21 620044800 ROTARY VR KNOB KOC-E48026-1
1
13
15
Q'TY
1
1
1
1
4
1
1
1
2
1
