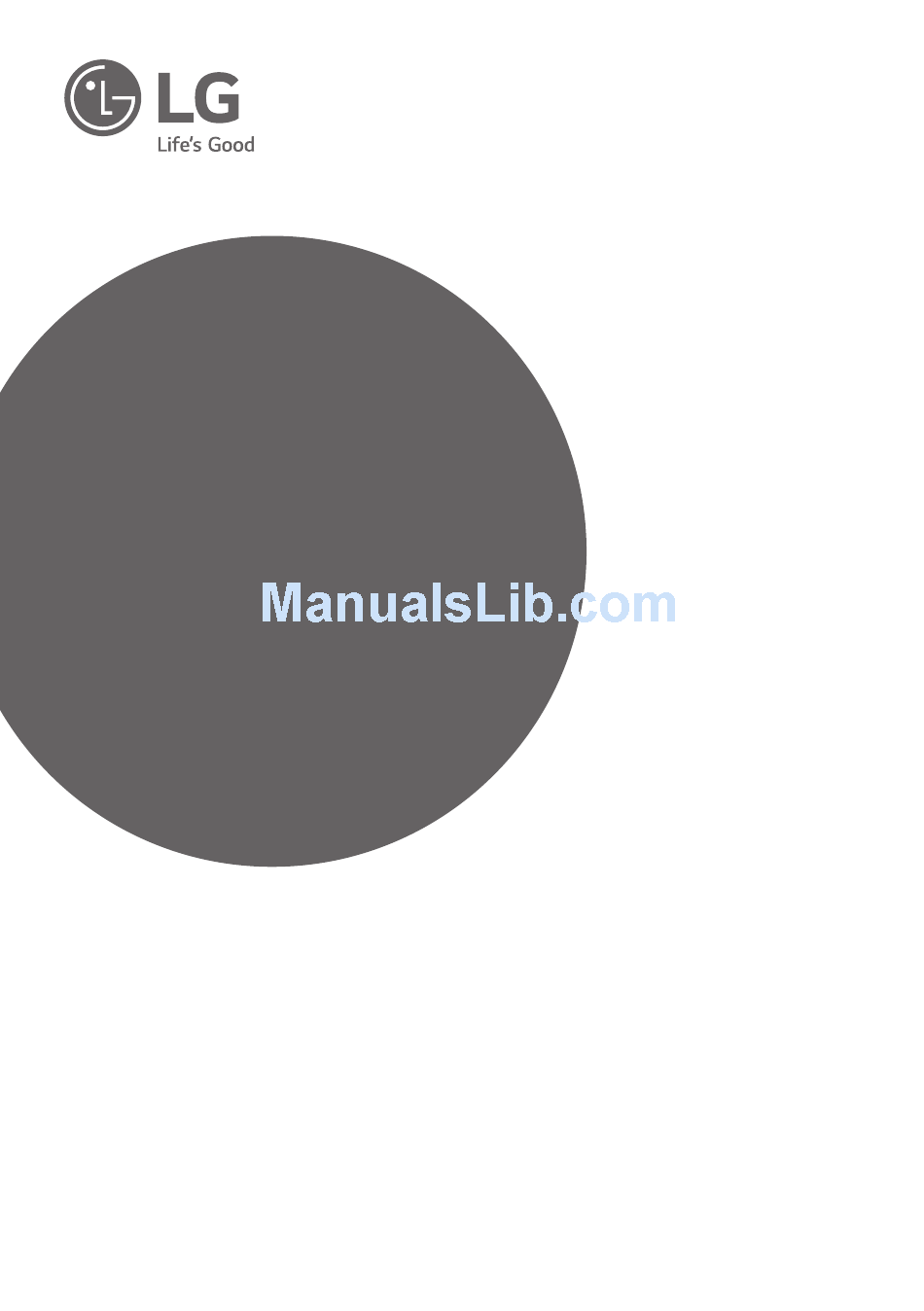

- Page 1 INSTALLATION MANUAL LED TV* Please read this manual carefully before operating your set and retain it for future reference. LV640S www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS LOCATION AND FUNCTION OF KEY CODES CONTROLS Parts and Button EXTERNAL CONTROL DEVICE SETUP EZMANAGER USB to Serial converter with USB Cable LANGUAGE & COUNTRY SELECTION RS-232C with RS-232C Cable - DE9 (D-Sub 9 pin) Type - Phone jack Type INSTALLATION MENU Set ID... -
Page 3: Location And Function Of Controls
LOCATION AND FUNCTION OF CONTROLS LOCATION AND FUNCTION OF CONTROLS Parts and Button Screen Remote control and Intelligent sensors Power Indicator Button 1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 Button - This button is located below the TV screen. NOTE •... -
Page 4: Ezmanager
EZMANAGER EZMANAGER • Image shown may differ from your TV. LANGUAGE & COUNTRY SELECTION - Please select the Language and Country. Some countries need to select the Time Zone. -
Page 5: Installation Menu
The abundant functions for Hotel TV linked with software installation can be projected on OSD as ‘Installation Menu’ . The wide range of hotel features can be performed simply on additional window to enhance the LG hotel TV’s easy installation and convenient operation for Hotelier and System Integrators. -
Page 6: Public Display Settings
INSTALLATION MENU PUBLIC DISPLAY SETTINGS 1 Use the button to select the PUBLIC DISPLAY SETTINGS. 2 Use the ‘OK’ button and then button to select Public Display Mode. - When ‘Public Display Mode’ is set to On (Work), all functions of Public Display Mode apply. Public Display Settings Operation - Decide to work all functions of ‘Public Display Mode’... -
Page 7: Volume
Operation’ and ‘Local Key Operation’ will be worked by below. IR Operation • Decide whether work the LG remote control or not. - When ‘IR Operation’ is set to 'Normal' , all remote keys are available. - 'Use PWR Only' makes block all remote keys except power key. -
Page 8: Limited Mode
INSTALLATION MENU Limited Mode - Configure TV function’s limitation. When selected to ‘On’ , following sub-menus will be worked by below. Setup Menu - Permit to tune and manage Channels as 'On'(permitted) or 'Off'(not permitted). Channel Change • Decide to change channel or not by setting ‘Channel Change' as ‘On’(Change Possible) or ‘Off’(Change Impossible) when present source is TV. -
Page 9: Dtv Channel Update
INSTALLATION MENU DTV Channel Update - It is a mode to set whether to update dtv Channel automatically or not. - When DTV Channel Update is set to ‘Auto’ , the function to update TV’s Channel map according to dtv Channel’s stream information. - DTV Channel Update is set to ‘Manual’... -
Page 10: Network
INSTALLATION MENU NETWORK 1 Use the button to select the NETWORK. MAC Address - Displays the MAC address (not customizable). Network Setting One-click network connection - Connects easily to a wired/wireless network. - Network Connection to connect to an available network automatically. Follow the prompts on the TV. -
Page 11: Wake On Lan
INSTALLATION MENU Wake On LAN • Sets the Wake On LAN function to Enable or Disable. - The Wake On LAN feature enables the TV to receive software updates and/or be powered ON upon receipt of Wake Up Frame packets and/or Magic Packet data via the wired LAN. To facilitate use of this feature, note that the appropriate wired connection must be made. -
Page 12: General
INSTALLATION MENU GENERAL Configuration Setup Select RCU - It is a mode to set whether to use Select RCU or not. When ‘Select RCU’ is set to ‘Enable’ , You can adjust ‘Number of RCU’ menu. Number of RCU - It is a mode to set Number of RCU. Number of RCU value range 1~9. - Page 13 INSTALLATION MENU 15Min Auto Off - When ‘15Min Auto Off’ is set to ‘Enable’ , TV will turn off if there is no signal in 15Min. Auto Sensing - If ‘Auto Sensing’ is set to ‘On’ , the input is automatically switched when the input signal that you set to “ON’...
-
Page 14: External Speaker
INSTALLATION MENU External Speaker Volume Control - Selects the volume control method of an external speaker. You can select ‘Off’ , ‘Int Variable’ , ’ Fixed. ’ , ’ Ext Variable’ by ^ pressing button. Ext Variable uses the External Vol Up/Down Control Line to change the volume up to 1 Watts. Int variable is linked to the main volume OSD and change the volume 0 - 1 Watts. -
Page 15: Password Change
INSTALLATION MENU Password Change - To ensure more security, Password can be changed by installers’ own design. 1 Change password by using virtual keyboard. 2 Input the password again for confirmation. PreLoaded App 1 If you want to use a particular app, you can choose from the menu. you can setting each apps activation. -
Page 16: Media Share
INSTALLATION MENU MEDIA SHARE 1 You can setting Whether to use for “SmartShare” Screen Share - Screen Share enables WiFi p2p functions such as Miracast and WiDi. If this value is enabled, Screen Share app is displayed at launcher bar and User can connect to TV by user’s Miracast enabled mobile phone or WiDi enabled laptop DIAL - With this DIAL service, you can launch the target app at Smart Home Launcher bar without... - Page 17 INSTALLATION MENU Use Default - If you want to use default password(this password was generated randomly), you must select ‘Enable’ in this item. Security Key - When guests want to use TV’s SoftAP function, they need this password. If you want to change this default password, you need to Change ‘Use Default’...
-
Page 18: Tv Manager
INSTALLATION MENU TV MANAGER USB Download Menu * USB Cloning : An Installer can quickly set up and clone multiple TV sets at a property. These cloned TVs will all have the same Master TV Setup: Public Display Mode Installation Menu settings, User A/V settings and the Channel Map. - Page 19 INSTALLATION MENU Ez Download - Ez Download is a function that enables users to download the desired items all at once, such as EPK (software update file), TLL, Logo Image, Background Images, Micom. * Images and EPK files should be copied into the folder named LG_DTV on the USB. - TLL files should be copied to the root folder of the USB.
- Page 20 INSTALLATION MENU Logo Image Download - If there are more than two USB Memory Device, It is possible to select the USB. - The download sequence is Logo Image Download -> Select Image -> UPDATE. NOTE • Splash Image update function supports only JEPG,BMP format file of less than 8 MB filesize. •...
- Page 21 INSTALLATION MENU Insert Background Image(s) - This feature downloads Insert Background Image(s) from USB. - Images should be copied to LG_DTV of the USB. - The download sequence is Insert Background Image(s) -> Select Images -> UPDATE. NOTE • Maximum number of images that you can update at once are 12. •...
- Page 22 INSTALLATION MENU Update TV Software - This feature update EPK of TV through the hex file in USB. The target file is located in \LG_DTV folder. - If there are more than two USB memory Device, It is possible to select the USB. - The download sequence is Update TV Software ->...
- Page 23 INSTALLATION MENU Update Micom Software - This feature update MICOM of TV through the txt file in USB. The target file is located in \LG_DTV folder - If there are more than two USB memory Device, It is possible to select the USB. - The download sequence is Update Micom Software ->...
- Page 24 INSTALLATION MENU Import Clone File - Once the internal TV data and its channel map information is written to the USB memory card, the user can start “Import Clone File” process with the data file generated and stored in USB memory card.
- Page 25 INSTALLATION MENU Export Clone File - "Export Clone File” must be done first before “Import Clone File” process, as it generate the file to be used in “Export Clone File”. While writing is in process, the user must not turn TV off nor unplug the USB memory card.
-
Page 26: Key Codes
KEY CODES Key Codes • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) (Power) R/C Button R/C Button R/C Button R/C Button (Home) R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button (Input) R/C Button... -
Page 27: External Control Device Setup
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial RS-232C IN converter which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 28: Set Id
EXTERNAL CONTROL DEVICE SETUP Set ID For Set ID number, see “Real Data Mapping”. (Q.Settings) • (All Settings) to access the main menus. 1 Press 2 Press the Navigation buttons to scroll to General • Set ID and press 3 Press the Navigation buttons to scroll to Set ID and press 4 Scroll left or right to select a set ID number and select . -
Page 29: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters Baud rate : 9600 bps (UART) Stop bit : 1 bit Data length : 8 bits Communication code : ASCII code Parity : None Use a crossed (reverse) cable. Command reference list (Depending upon model) COMMAND COMMAND DATA... -
Page 30: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. - Page 31 EXTERNAL CONTROL DEVICE SETUP • Commands may work differently depending upon model and signal. [c][ ][Set ID][ ][OK/NG][Data][x] • Using the PC input, you select either 16:9 or 01. Power (Command: k a) 4:3 screen aspect ratio. • To control Power *On or Off of the set. •...
- Page 32 EXTERNAL CONTROL DEVICE SETUP 06. Contrast (Command: k g) • To adjust screen contrast. You can also [k][ ][Set ID][ ][OK/NG][Data][x] adjust contrast in the Picture menu. Transmission 11. OSD Select (Command: k l) [k][g][ ][Set ID][ ][Data][Cr] • To select OSD (On Screen Display) on/off when controlling remotely.
- Page 33 EXTERNAL CONTROL DEVICE SETUP 14. Bass (Command: k s) Frequency Step • To adjust Bass. You can also adjust in the Sound menu. 1st Band 0(decimal) Transmission 2nd Band 1(decimal) [k][s][ ][Set ID][ ][Data][Cr] 3rd Band 4th Band 19(decimal) Data Min: 00 to Max: 64 5th Band 20(decimal) [s][ ][Set ID][ ][OK/NG][Data][x]...
- Page 34 EXTERNAL CONTROL DEVICE SETUP * Digital Antenna/Cable/Satellite * Digital channels have a Physical, Major, and Minor channel number. The Physical [Data 00][Data 01]: Channel Data number is the actual digital channel Data 00 : High Channel data number, the Major is the number that the channel should be mapped to, and the Data 01 : Low Channel data Minor is the sub-channel.
- Page 35 EXTERNAL CONTROL DEVICE SETUP * Two bytes are available for each major 21. Key (Command: m c) and minor channel data, but usually the • To send IR remote key code. low byte is used alone (high byte is 0). Transmission [m][c][ ][Set ID][ ][Data][Cr] * Tune Command Examples:...
- Page 36 EXTERNAL CONTROL DEVICE SETUP 24. Auto Configure (Command: j u) • To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01: To set [u][ ][Set ID][ ][OK/NG][Data][x]...
