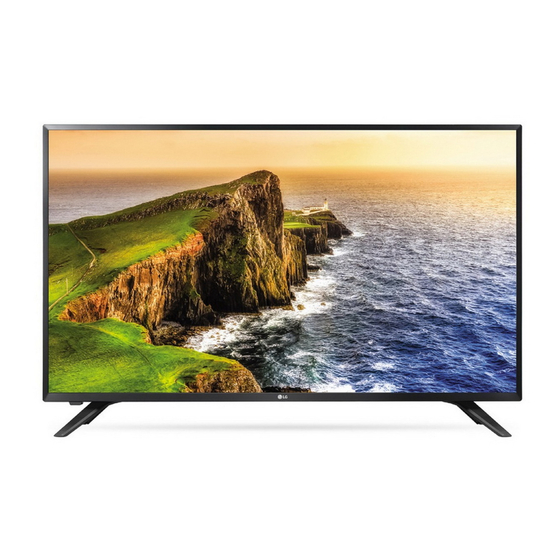

LG LV30 Series Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. LED TV
  5. LV30 Series
  6. Manual

LG LV30 Series Manual

Hide thumbs Also See for LV30 Series:

Advertisement

Quick Links

Download this manual
www.lg.com
AAA
X 2
X 4
(M4 x L16)
(M4 x L16)
32LV30**
43LV30**
LED TV
LV30**

Advertisement

loading
Need help?

Need help?

Do you have a question about the LV30 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG LV30 Series

Summary of Contents for LG LV30 Series

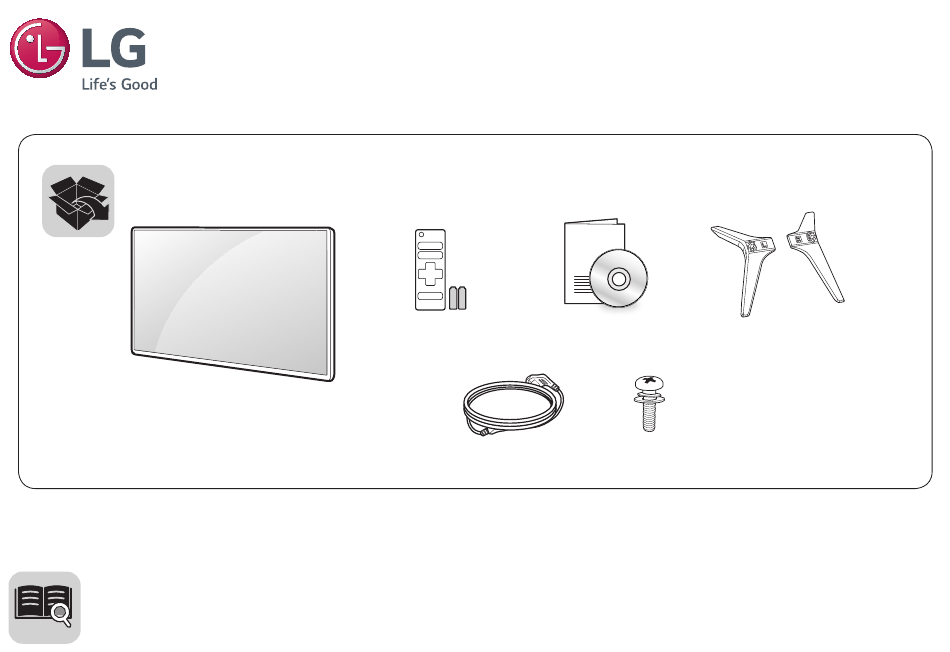

  • Page 1 LED TV LV30** (M4 x L16) (M4 x L16) 32LV30** 43LV30** www.lg.com...
  • Page 3 43LV30** 32LV30**...
  • Page 4 CABLE IN ANTENNA/ HDMI IN CABLE IN HDMI IN USB IN H/P OUT USB IN H/P OUT Satellite IN Satellite IN...
  • Page 5 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 6 HDMI-DVI IN RGB IN RGB IN HDMI IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R AUDIO OUT DVI OUT AUDIO OUT RGB OUT...
  • Page 8 181.1 77.8 32LV300C-TA 181.1 77.8 32LV300C-TB 220.4 77.8 43LV300C-TA...
  • Page 9 Pastikan untuk menggunakan sekrup dan braket penyangga dinding ® • Pada mode PC, pengaturan beberapa resolusi mungkin tidak Gunakan adapter AC dan kabel listrik resmi disetujui oleh LG Electronics. Ikuti petunjuk pemasangan dibawah ini untuk mencegah produk dari Percayakan segala bentuk perbaikan, kepada petugas layanan resmi.
  • Page 10 Suara “Retakan” : Suara retakan yang muncul saat menonton atau • Periksa apakah baterai masih berfungsi dan benar posisinya mematikan TV diakibatkan oleh kontraksi panas plastik karena PT. LG ELECTRONICS INDONESIA temperatur dan kelembaban. Suara ini biasa terjadi pada produk Tidak ada gambar dan tidak ada suara Spesi kasi yang memerlukan perubahan bentuk panas.
  • Page 11 IR CODES •  This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER)  Remote control Button (Power On/Off)   Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button 8F  Remote control Button  (INPUT) Remote control Button (HOME) Remote control Button 10-19  Number Key 0-9 Remote control Button Remote control Button Remote control Button Remote control Button    Remote control Button   ...

  • Page 12: External Control Device Setup

    EXTERNAL CONTROL Type of Connector : D-Sub 9-Pin Male DEVICE SETUP RS-232C Setup •  Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control  device (such as a computer or an A/V control system) to control the  product’s functions externally. Connect the serial port of the control device to the RS-232C jack on the  Pin name product back panel.  3.5 V •  RS-232C connection cables are not supplied with the product. RXD (Receive data) TXD (Transmit data) IR OUT from TV GND  No Connection No Connection (5 V available in some models) No Connection RS-232C IN No Connection (12 V available in some models) (CONTROL & SERVICE) (*Not Provided)

  • Page 13: Communication Parameters

    RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal)     PC  TV   01. Power 00 to 01      2  3  02. Aspect Ratio (See p. 4)     3  2  03. Screen Mute (See p. 5)     5  5  04. Volume      4 ...

  • Page 14: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 01.  Power (Command: k a) ► To control Power On/Off of the set.   (Depending on Model) Transmission  [k][a][  ][Set ID][  ][Data][Cr] Transmission Data 00 : Power Off  01 : Power On [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [a][ ][Set ID][ ][OK/NG][Data][x] [Command 2] : Second command to control the TV. ► To Show TV is Power On/Off.   [Set ID] : You can adjust the set ID to choose desired monitor ID number  Transmission  in option menu. Adjustment range is 1 to 99. When selecting Set ID  [k][a][ ][Set ID][ ][FF][Cr] ‘0’ ,  every connected set is controlled. Set ID is indicated as decimal (1  to 99) on menu and as Hexa decimal (0 x 0 to 0 x 63) on transmission/ receiving protocol. [a][ ][Set ID][ ][OK/NG][Data][x] [Data] : To transmit command data. Transmit  ‘ FF’ data to read status of  *  Similarly, if other functions transmit  ‘ 0 x FF’ data based on this  command.
  • Page 15 03.  Screen Mute (Command: k d) 05.  Volume Control (Command: k f) ► To select screen mute on/off. ► To adjust volume.      You can also adjust volume with the volume buttons on remote  Transmission  control. [k][d][ ][Set ID][ ][Data][Cr] Transmission Data  00 :   S creen mute off (Picture on)  [k][f][ ][Set ID][ ][Data][Cr] Video mute off   01 :   S creen mute on (Picture off) Data Min :   0 0 to Max : 64   10 : Video mute on *  Refer to Real data mapping. Ack  [d][ ][Set ID][ ][OK/NG][Data][x] [f][ ][Set ID][ ][OK/NG][Data][x] *  In case of video mute on only, TV will display On Screen  Display(OSD). But, in case of Screen mute on, TV will not display OSD. 06.  Contrast (Command: k g) ►...
  • Page 16 08.  Colour (Command: k i) 12.  Remote control lock mode (Command: k m) ► To adjust the screen Colour.  ► To lock the front panel controls on the monitor and remote control.     You can also adjust colour in the PICTURE menu. Transmission Transmission [k][m][ ][Set ID][ ][Data][Cr] [k][i][ ][Set ID][ ][Data][Cr] Data 00 : Lock off 01 : Lock on Data Min :   0 0 to Max : 64 *  Refer to Real data mapping. [m][ ][Set ID][ ][OK/NG][Data][x] [i][ ][Set ID][ ][OK/NG][Data][x] *  If you are not using the remote control, use this mode. When main  power is on/off, external control lock is released. *  In the standby mode, if key lock is on, TV will not turn on by power  09.  Tint (Command: k j) on key of IR & Local Key. ► To adjust the screen tint.    You can also adjust tint in the PICTURE menu. Transmission 13.  Balance (Command: k t) [k][j][ ][Set ID][ ][Data][Cr] ►...

  • Page 17: Power Saving Function

    15.  Energy Saving (Command: j q) 17.  Equalize (Command : j v) ► To reduce the power consumption of the TV. You can also adjust  ► To adjust equalize.     Energy Saving in PICTURE menu. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving MSB                                                                                                                    LSB Level Function Description Data Frequency Low  Power 7 6 5 Frequency 4 3 2 1 0 Step Low  Minimum 0 0 0 1st Band 0 0 0 0 0 0(decimal)
  • Page 18 22.  Input select (Command: x b)  Channel data range (Main Picture Input) Min : 00  Max : 270F (0 to 9999) ► To select input source for main picture.   [a][ ][Set ID][ ][OK/NG][Data][x] Transmission [x][b][ ][Set ID][ ][Data][Cr] Data   Structure 19.  Programme Add/Skip (Command: m b) ► To set skip status for the current Programme.   MSB                                                                                                                     LSB Transmission [m][b][ ][Set ID][ ][Data][Cr] External Input Input Number Data 00 : Skip 01 : Add External Input Data [b][ ][Set ID][ ][OK/NG][Data][x] Analogue 20.  Key (Command: m c) Component ► To send IR remote key code.   Transmission [m][c][ ][Set ID][ ][Data][Cr] Data  IR CODES HDMI [c][ ][Set ID][ ][OK/NG][Data][x] Input Number...
  • Page 19 * Real data mapping 00 : Step 0 A : Step 10 (Set ID 10) F : Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100   6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE : Step 254 FF : Step 255...
