12
14
: Depending on model / Závisí na modelu / En función del modelo / selon le modèle / Abhängig vom Modell / Ανάλογα με το μοντέλο / In base al
modello / Zależnie od modelu / Dependendo do modelo / В зависимости от модели /
/ Залежно від моделі
www.lg.com
16
20
X 2
c
X 6
X 8
(M4 X L20)
(M4 X L20)
32LV761*
43/49/55LV761*
43LV641*
32LV641*
AAA
X 2
X 2
a
b
/ Modele bağlı olarak değişkenlik gösterebilir
LED TV
LV761*
LV641*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV641 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LG LV641 Series

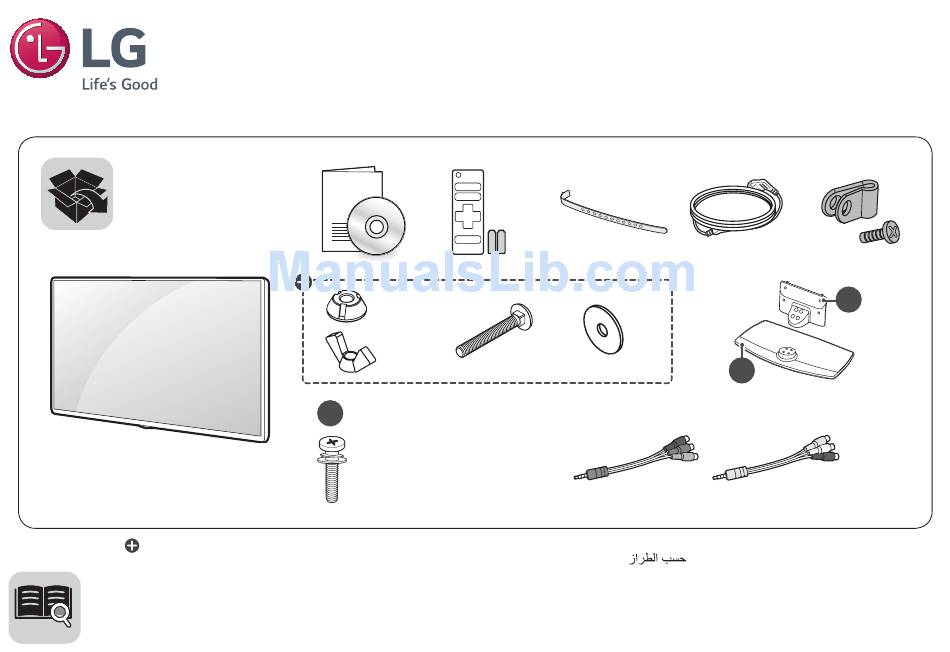

  • Page 1 : Depending on model / Závisí na modelu / En función del modelo / selon le modèle / Abhängig vom Modell / Ανάλογα με το μοντέλο / In base al modello / Zależnie od modelu / Dependendo do modelo / В зависимости от модели / / Modele bağlı olarak değişkenlik gösterebilir / Залежно від моделі www.lg.com...
  • Page 3 32LV761*, 32LV641* 43/49/55LV761*, 43LV641* 32LV761*, 32LV641* 43/49/55LV761*, 43LV641*...
  • Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN H/P OUT CLOCK...
  • Page 5 CLOCK Satellite IN OPTICAL DIGITAL AUDIO OUT...
  • Page 6 AV IN COMPONENT IN VIDEO L/MONO AUDIO R AUDIO VIDEO...
  • Page 7 HDMI-DVI IN AV IN HDMI IN DVI OUT AUDIO OUT...
  • Page 9 32LV641H-ZA 6.05 4.85 32LV761H-ZA 43LV641H-ZA 79.4 12.45 43LV761H-ZA 49LV761H-ZA 1107 79.4 14.55 11.3 55LV761H-ZA 1241 63.0 19.5 16.3...
  • Page 10 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
  • Page 11 Warning! Safety instructions • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. • Insert power cable plug completely into wall socket otherwise if CAUTION not secured completely into socket, fire ignition may break out.
  • Page 12 • Only use an authorized AC adapter and power cord approved by product. LG Electronics. Otherwise, this may result in fire, electric shock, • Do not turn the product On/Off by plugging-in or unplugging malfunction or product deformation.
  • Page 13 Preparing • Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. • If the TV is turned on for the first time after it was shipped from •...
  • Page 14: Lifting And Moving The Tv

    Lifting and moving the TV • Do not use any unapproved items to ensure the safety and product life span. • Any damage or injuries caused by using unapproved Please note the following advice to prevent the TV from being scratched items are not covered by the warranty.
  • Page 15: Using The Button

    Using the button Basic functions <A/B type> (Depending on model) Power On (Press) You can simply operate the TV functions, using the button. Power Off (Press and hold) <A type> Volume Control Programmes Control <C type> Power On (Press) Power Off (Press and Hold) Menu Control (Press Menu Selection (Press and Hold...
  • Page 16: Mounting On A Table

    Mounting on a table Attaching the TV to a desk (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper The TV should be attached to a desk so it cannot be pulled in a forward/ ventilation.
  • Page 17: Using The Kensington Security System

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 18: Separate Purchase (Wall Mounting Bracket)

    Separate purchase (Wall mounting bracket) • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model) 43UV761* 49/55UV761* 32/43LV761* 49/55LV761* Model 32/43LV762* 49/55LV762* 32/43LV641*...
  • Page 19: Connections (Notifications)

    Connections (notifications) Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). Connect various external devices to the TV and switch input modes to • Use a signal splitter to use more than 2 TVs. select an external device.
  • Page 20: Speaker Output Setup

    Speaker output setup Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL GND / UP / DOWN SPEAKER OUT CPU detects transition from 3.3 V to GND level STEREO for volume control.
  • Page 21: Network Setup

    Network setup Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Wired network connection Some separate cable is not provided. (Depending on model) •...
  • Page 22: Remote Control

    Remote control (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce energy consumption. (Some buttons and services may not be provided depending on models By zooming in on the selected area, you can view it or regions.) in full screen.
  • Page 23 (Depending on model) (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. Recalls your preferred subtitle in digital mode. Selects an AV mode. Resizes an image. (INPUT) Changes the input source. Number buttons Enters numbers. Alphabet buttons Enters letters. Accesses the saved programmes list.
  • Page 24: Troubleshooting

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 25: Specifications

    • Use this information for LV640S series. You may see tiny black dots and/or brightly coloured dots (red, blue You can download the SuperSign Software and manual from LG or green) at a size of 1 ppm on the panel. This does not indicate a Electronics website.
  • Page 26 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country) Digital TV Analogue TV...
  • Page 27 HDMI/DVI-DTV supported mode HDMI/DVI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode (Depending on model) Frequency (Hz) Frequency (kHz) 31.46 59.94 Horizontal Vertical Resolution 640 x 480 Frequency (kHz) Frequency (Hz) 31.50 60.00...
  • Page 28: Audio Format

    Component port connecting Audio format information File Item Info Component ports on the TV Format Bit rate 32 Kbps - 320 Kbps Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Video output ports on DVD player channels mono, stereo Bit rate Sample freq.
  • Page 29: Video Codec

    Video codec Extension Codec VC-1 Advanced Profile (except for Video WMVA), VC-1 Simple and Main Profiles .asf .wmv WMA Standard (except for WMA v1/ Audio WMA Speech) Xvid (except 3 warp-point GMC), H.264/ Video AVC, Motion Jpeg, MPEG-4 .avi MPEG-1 Layer I, II, MPEG-1 Layer III Audio (MP3), Dolby Digital, LPCM, ADPCM, DTS Video...
  • Page 30 IR CODES This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button (Power Remote control Button (POWER) On/Off) Remote control Button (BACK) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...
  • Page 31: External Control Device Setup

    EXTERNAL CONTROL Phone jack Type DEVICE SETUP (TV) (PC) (Depending on Model) •  You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the TV, which is specified RS-232C IN (CONTROL & SERVICE) (PC) (TV) in the manual.
  • Page 32: Communication Parameters

    Command Reference List RS-232C Configurations (Depending on Model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal) 01. Power 00 to 01 02. Aspect Ratio (See p. 4) 03. Screen Mute (See p. 5) 04. Volume Mute 00 to 01 05.
  • Page 33: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 01. Power (Command: k a) ► To control Power On/Off of the set. (Depending on Model) Transmission [k][a][ ][Set ID][ ][Data][Cr] Transmission Data 00 : Power Off 01 : Power On [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV.(j, k, m or x) [a][ ][Set ID][ ][OK/NG][Data][x] [Command 2] : Second command to control the TV.
  • Page 34 03. Screen Mute (Command: k d) 06. Contrast (Command: k g) ► To select screen mute on/off. ► To adjust screen contrast. You can also adjust contrast in the PICTURE menu. Transmission [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][g][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Video mute off...
  • Page 35 09. Tint (Command: k j) 12. Remote control lock mode (Command: k m) ► To adjust the screen tint. ► To lock the front panel controls on the monitor and remote control. You can also adjust tint in the PICTURE menu. Transmission Transmission [k][m][ ][Set ID][ ][Data][Cr]...
  • Page 36 14. Colour Temperature (Command: x u) 16. Auto Configuration (Command: j u) (Only RGB support model) ► To adjust colour temperature. You can also adjust Colour ► To adjust picture position and minimize image shaking Temperature in the PICTURE menu. automatically.
  • Page 37 20. Key (Command: m c) 18. Tune Command (Command: m a) ► To send IR remote key code. ► Select channel to following physical number. Transmission Transmission [m][c][ ][Set ID][ ][Data][Cr] [m][a][ ][Set ID][ ][Data 00][ ][Data 01][ ][Data 02][Cr] Data 00 : High channel data Data IR CODES...
  • Page 38 Input Number Data Input1 Input2 Input3 Input4 [b][ ][Set ID][ ][OK/NG][Data][x] * Real data mapping 00 : Step 0 Step 10 (Set ID 10) Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100 6E : Step 110 73 :...
