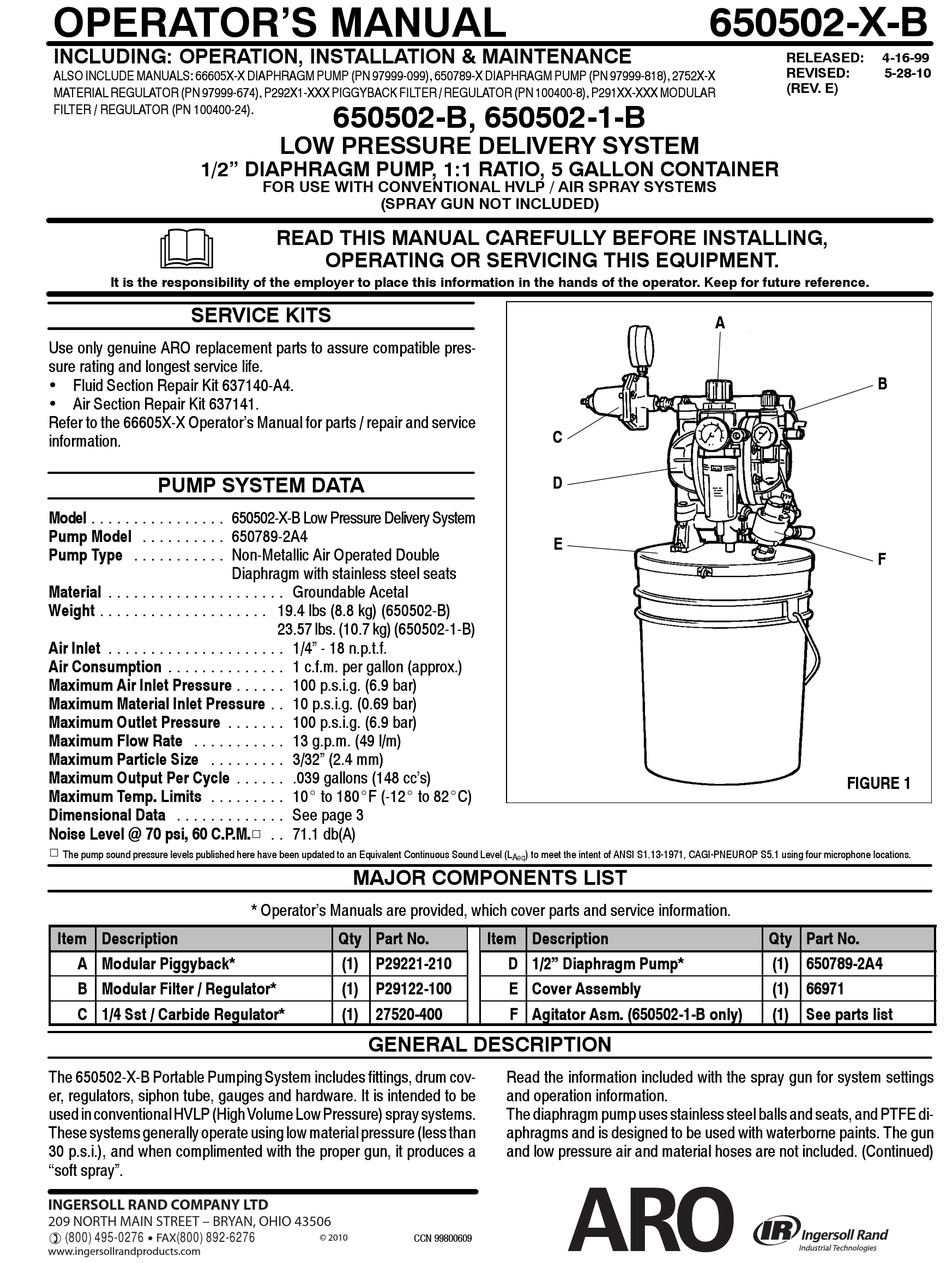

Ingersoll-Rand 650502-B Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
ALSO INCLUDE MANUALS: 66605X-X DIAPHRAGM PUMP (PN 97999-099), 650789-X DIAPHRAGM PUMP (PN 97999-818), 2752X-X
MATERIAL REGULATOR (PN 97999-674), P292X1-XXX PIGGYBACK FILTER / REGULATOR (PN 100400-8), P291XX-XXX MODULAR
FILTER / REGULATOR (PN 100400-24).
1/2" DIAPHRAGM PUMP, 1:1 RATIO, 5 GALLON CONTAINER
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO replacement parts to assure compatible pres-
sure rating and longest service life.
• Fluid Section Repair Kit 637140-A4.
• Air Section Repair Kit 637141.
Refer to the 66605X-X Operator's Manual for parts / repair and service
information.
PUMP SYSTEM DATA
Model . . . . . . . . . . . . . . . .
Pump Model . . . . . . . . . .
Pump Type . . . . . . . . . . .
Material . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . .
Air Inlet . . . . . . . . . . . . . . . . . . . . .
Air Consumption . . . . . . . . . . . . . .
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . .
Maximum Flow Rate . . . . . . . . . . .
Maximum Particle Size . . . . . . . . .
Maximum Output Per Cycle
Maximum Temp. Limits . . . . . . . . .
Dimensional Data . . . . . . . . . . . . .
Noise Level @ 70 psi, 60 C.P.M.h
h
The pump sound pressure levels published here have been updated to an Equivalent Continuous Sound Level (L
Item Description
A Modular Piggyback*
B Modular Filter / Regulator*
C 1/4 Sst / Carbide Regulator*
The 650502-X-B Portable Pumping System includes fittings, drum cov-
er, regulators, siphon tube, gauges and hardware. It is intended to be
used in conventional HVLP (High Volume Low Pressure) spray systems.
These systems generally operate using low material pressure (less than
30 p.s.i.), and when complimented with the proper gun, it produces a
''soft spray".
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
650502-B, 650502-1-B
LOW PRESSURE DELIVERY SYSTEM
FOR USE WITH CONVENTIONAL HVLP / AIR SPRAY SYSTEMS
(SPRAY GUN NOT INCLUDED)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
650502-X-B Low Pressure Delivery System
650789-2A4
Non-Metallic Air Operated Double
Diaphragm with stainless steel seats
Groundable Acetal
19.4 lbs (8.8 kg) (650502-B)
23.57 lbs. (10.7 kg) (650502-1-B)
1/4" - 18 n.p.t.f.
1 c.f.m. per gallon (approx.)
. . . . . . 100 p.s.i.g. (6.9 bar)
. . 10 p.s.i.g. (0.69 bar)
100 p.s.i.g. (6.9 bar)
13 g.p.m. (49 l/m)
3/32" (2.4 mm)
. . . . . . .039 gallons (148 cc's)
10_ to 180_F (-12_ to 82_C)
See page 3
. . 71.1 db(A)
MAJOR COMPONENTS LIST
* Operator's Manuals are provided, which cover parts and service information.
Qty Part No.
(1) P29221-210
(1) P29122-100
(1) 27520-400
GENERAL DESCRIPTION
© 2010
C
D
E
) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
Aeq
Item Description
D 1/2'' Diaphragm Pump*
E Cover Assembly
F Agitator Asm. (650502-1-B only)
Read the information included with the spray gun for system settings
and operation information.
The diaphragm pump uses stainless steel balls and seats, and PTFE di-
aphragms and is designed to be used with waterborne paints. The gun
and low pressure air and material hoses are not included. (Continued)
CCN 99800609
650502-X-B
RELEASED: 4-16-99
REVISED: 5-28-10
(REV. E)
A
B
F
FIGURE 1
Qty Part No.
(1) 650789-2A4
(1) 66971
(1) See parts list
