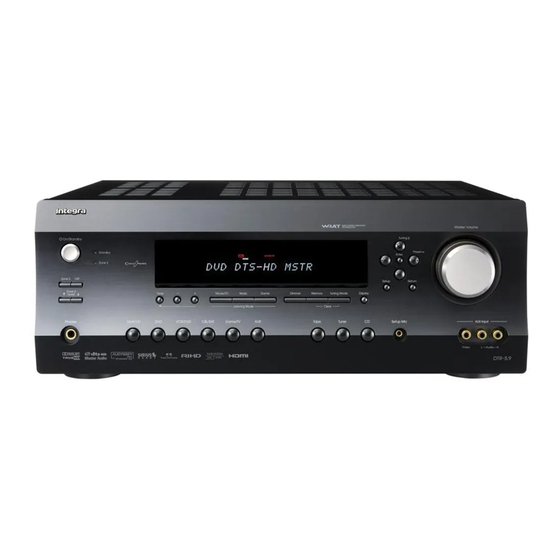

DTR-5.9 Ref. No. 4072 SERVICE MANUAL SERVICE MANUAL May, 2008 AV RECEIVER DTR-5.9 MODEL RC-711M Black model B MDD 120V AC, 60Hz B MPA 230V AC, 50Hz SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
Page 2
DTR-5.9 P2801 EXPLODED VIEWS-1 A303 x 6 pcs. A017 A014 A075 A016 A022 x 4 pcs. A053 x 42 pcs. A012 A036 P6601A A070 x 18 pcs. A032 P101 A301 A020 A027 A035 x 2 pcs. A053 A034 A305 A053 x 2 pcs.
Page 4
DTR-5.9 BLOCK DIAGRAMS-1 AUDIO SECTION Q5501 AUDIO ANALOG R2S15211FP TUNER UNIT SELECTOR / TONE / VOLUME FRONT L FRONT R PHONES MDD type only AUDIO DIGITAL SIRIUS POWER AMPLIFIER RL6600 TONE +29dB MIC AMP. SETUP MIC FRONT SPEAKERS MICDET +29dB...
Page 5
DTR-5.9 BLOCK DIAGRAM HDMI SECTION CYOUT1 VIDEO SWITCH PBOUT1 Q8162 PROUT1 AN15880A VOUT3 CYOUT1 37 COUT3 VIDEO PBOUT1 33 VIDEO YOUT3 PROUT1 COMPONENT (ANALOG) (ANALOG) CYIN1 VOUT3 49 Refer to (SD-9) VSP SECTION COMPONENT PBIN1 DRO_0 COUT3 IN 1 YOUT3...
DTR-5.9 Refer to following table about the parts displayed by mark " LIST ". SCHEMATIC DIAGRAMS-1 (SD-1) MODEL No. ---> DTR-4.9 DTR-5.9 DTX-5.9 TYPE ---> AUDIO INPUT SECTION MICROPROCESSOR PCB MICROPROCESSOR PCB AMPLIFIER PCB MICROPROCESSOR PCB MICROPROCESSOR PCB SIRIUS / DOCK TERMINAL PCB...
DTR-5.9 DSP/HDMI PCB ZONE 2 / IR PCB LIST SIRIUS/DOCK TERMINAL PCB LIST To NAHDM-9473 SCHEMATIC DIAGRAMS-3 (SD-3) To NAETC-9452 To NARF-9463 LIST LIST To NALAN-9465 To TUNER UNIT SD-8 : F1 SD-9 :C5 SD-10 : E3 TO_FLASH_WRITER SD-9 : H3...
DTR-5.9 SCHEMATIC DIAGRAMS-4 (SD-4) VIDEO SECTION P3007A NAVD-9467 Refer to following table about the parts displayed by mark " LIST ". LIST +12V MODEL NO. ---> DTR-4.9 DTR-5.9 DTX-5.9 Q9101 2SA950 FAN DRIVE R9102 TYPE ---> 1.2K VIDEO PC BOARD R9103 4.7K...
Page 10
DTR-5.9 SCHEMATIC DIAGRAMS-5 (SD-5) LIST NATRM-9428 NAETC-9449 SPEAKER TERMINAL / POWER SUPPLY SECTION ZONE 2 SPEAKER TERMINAL PC BOARD HEADPHONE JACK <Note> PC BOARD 1. NC = No mount of parts. 2. SD-x : XY is short for Schematic Diagrams-x and each NAPS-9446 sockets location, X = A to H, Y = 1 to 5.
DTR-5.9 SCHEMATIC DIAGRAMS-6 (SD-6) DISPLAY SECTION NADIS-9444 DISPLAY PC BOARD Q7002 FL TUBE 16BT128GNK REMIN NOTE FLDRST FLDCS THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY FLDCLK REPLACE ONLY WITH PART NUMBER SPECIFIED. FLDSDO VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL).
Page 16
DTR-5.9 SCHEMATIC DIAGRAMS-11 <Note> 1. NC = No mount of parts. SIRIUS / DOCK TERMINAL SECTION 2. SD-x : XY is short for Schematic Diagrams-x and each sockets location, X = A to H, Y = 1 to 5. MDD Type only...
DTR-5.9 SCHEMATIC DIAGRAMS-12 WAVEFORM SECTION-1/3 Digital Audio Waveform Part <Notes> 1. WF01 is short for Waveform-01 . 2. Refer to SD-3 (SCHEMATIC DIAGRAMS-3) for the location of each waveform on circuit. 3. SD-x : XY is short for Schematic Diagrams-x and each socket's location, X=A to H, Y=1 to 5.
Page 18
DTR-5.9 SCHEMATIC DIAGRAMS-13 WAVEFORM SECTION-2/3 Video Waveform Part Video source color and pattern <Notes> 1. WF21 is short for Waveform-21 . 2. Refer to SD-4 (SCHEMATIC DIAGRAMS-4) for the location of each waveform on circuit. 3. SD-x : XY is short for Schematic Diagrams-x and each socket's location, X=A to H, Y=1 to 5.
Page 19
DTR-5.9 SCHEMATIC DIAGRAMS-14 WAVEFORM SECTION-3/3 FL Driver IC Control Waveform Part <Notes> 1. WF61 is short for Waveform-61 . 2. Refer to SD-6 (SCHEMATIC DIAGRAMS-6) for the location of each waveform on circuit. 3. SD-x : XY is short for Schematic Diagrams-x and each socket's location, X=A to H, Y=1 to 5.
Page 20
DTR-5.9 PACKING PROCEDURE A801 A822 A810 A807 A823 A804 A802 A808 A824 A805 A803 A809 A825 A806 A604 P901 A605 A607 Right side marking Front side A603 marking A821 A605 Front side A606 A702 A601 (L & R) A701 Left side...
DTR-5.9 PRINTED CIRCUIT BOARD VIEWS-3 TRANS. SEC. TERMINAL PC BOARD (NAPS-9425) Component side JL6952A NCPS-9425 25139425 THERMAL SENSOR PC BOARD (NAETC-9426) Component side Soldering side C6630 Q6380A Q6380 NCETC-9426 25139426 ZONE 2 SPEAKER TERMINAL PC BOARD (NATRM-9428) Component side JL6604C...
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-1 Q201 : D788E001BRFP266 (Floating-Point Digital Signal Processor)-1/5 BLOCK DIAGRAM Program/Data JTAG EMU 256K Bytes McASP0 Data 16 Serializers Program/Data ROM Page1 C67x + CPU 256K Bytes Memory Data Controller Program/Data McASP1 ROM Page2...
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-3 Q201 : D788E001BRFP266 (Floating-Point Digital Signal Processor)-3/5 TERMINAL DESCRIPTION External Memory Interface (EMIF) Address and Control Pin Name Pin No. Type Description EM_A[0] EMIF Address Bus EM_A[1] EM_A[2] EM_A[3] EM_A[4] EM_A[5] EM_A[6] EM_A[7]...
Page 41
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-4 Q201 : D788E001BRFP266 (Floating-Point Digital Signal Processor)-4/5 TERMINAL DESCRIPTION McASP0, McASP1, McASP2, and SPI1 Serial Ports Pin Name Pin No. Type Description AHCLKR0/AHCLKR1 McASP0 and McASP1 Receive Master Clock ACLKR0 McASP0 Receive Bit Clock...
Page 42
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-5 Q201 : D788E001BRFP266 (Floating-Point Digital Signal Processor)-5/5 TERMINAL DESCRIPTION Clocks Pin Name Pin No. Type Description OSCIN 1.2-V Oscillator Input OSCOUT 1.2-V Oscillator Output OSCVDD Oscillator 1.2-V VDD tap point (for filter only)
Page 43
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-6 Q281 : M12L64164A-7TG ( 1M x 16 Bit x 4 Banks Synchronous DRAM ) BLOCK DIAGRAM PIN LAYOUT TOP VIEW Clock Generator DQ15 Bank D VDDQ VSSQ Bank C DQ14 Bank B DQ13...
Page 44
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-7 Q282 : ES29LV160ET-70TG ( 16Mbit CMOS 3.0 Volt-only, Boot Sector Flash Memory ) BLOCK DIAGRAM RY/BY# Timer/ Vcc Detector Counter DQ0-DQ15(A-1) Analog Bias Generator Input/Output Buffers Write Command State Register Machine RESET# Data Latch/...
Page 45
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-8 Q301 CS42518 (8-Ch Codec with S/PDIF Receiver)-1/4 BLOCK DIAGRAM VARX AGND LPFLT DGND DGND VD RXP0 RXP1/GPO1 RXP2/GPO2 C&U Bit Control RXP3/GPO3 Data Buffer AD0/CS S/P DIF Clock/Data Port RXP4/GPO4 AD1/CDIN Recovery Decoder...
Page 47
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-10 Q301 : CS42518 (8-Ch Codec with S/PDIF Receiver)-3/4 TERMINAL DESCRIPTION Name Pin No. Function AD0/CS Address Bit 0 (I2C)/Control Port Chip Select (SPI) (INput) - AD0 is a chip address pin in I2C mode; CS is the chip select signal in SPI mode.
Page 48
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-11 Q301 : CS42518 (8-Ch Codec with S/PDIF Receiver)-4/4 TERMINAL DESCRIPTION Name Pin No. Function CL_SDOUT CODEC Serial Data Output (Output) - Output for two's complement serial audio data the internal and external ADCs.
Page 50
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-13 Q3001 : AN15880A (Video SW for Receiver with Multi-signal)-2/3 TERMINAL DESCRIPTION (1/2) Pin No. Pin name Type Descripion Input Luminance signal input 1 Input Luminance signal input 2 Input Luminance signal input 3...
Page 51
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-14 Q3001 : AN15880A(Video SW for Receiver with Multi-signal)-3/3 TERMINAL DESCRIPTION (2/2) Pin No. Pin name Type Description No connection CYOUT1 signal output CYOUT1 Output Ground GND4 Ground COUT3 signal output COUT3 Output COUT2 signal output...
Page 52
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-15 Q5501 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control)-1/3 SYSTEM BLOCK DIAGRAM Multi Multi Rch Tone Lch Tone CLOCK DATA MCU I/F Tone Bass & Volume Volume Treble...
Page 53
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-16 Q5501 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control)-2/3 BLOCK DIAGRAM AND PIN CONFIGURATION 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25...
Page 54
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-17 Q5501 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control)-3/3 TERMINAL DESCRIPTION PIN No. Name Function 19,17, FROUT,FLOUT, 14,12, 6-OUT,5-OUT, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel 4-OUT, 3-OUT, 9,7, 2-OUT,1-OUT...
Page 55
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-18 Q7003 : M66005-0001AHP (FL Tube Driver) BLOCK DIAGRAM Display code RAM SEG00 CG ROM Bank 1 : 8bit x 16 (35bit x 160) Bank 2 : 8bit x 64 SEG26 Segment output SEG27...
Page 56
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-19 Q8001 : FLI30502 (LCD TV Controller with Worldwide Sandard Sound Processor and HDMI Receiver)-1/12 BLOCK DIAGRAM Audio Processing R+L to Speaker Amp Digital Main Audio SPDIF Audio Input Output Sub-woofer / I2S Audio...
Page 57
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-20 Q8001 : FLI30502 (LCD TV Controller with Worldwide Sandard Sound Processor and HDMI Receiver)-2/12 PIN LAYOUT VDDA33_LBADC VREFN LBADC_IN1 GND_AUD1 LBADC_IN2 LS_OUT_SW LBADC_IN3 LS_OUT_R LBADC_IN4 LS_OUT_L LBADC_IN5 VDD_AUD1_33 VSSA33_LBADC AUD_OUT_R RESETn AUD_OUT1_L VBUFC_RPLL...
Page 58
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-21 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-3/12 TERMINAL DESCRIPTION <Note> I/O Legend : A = Analog, I = Input, O = Output, P = Power, G = Ground, D = Digital...
Page 59
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-22 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-4/12 TERMINAL DESCRIPTION Analog input port Pin Name Pin # Description Negative analog input ‘B’ for channels 1 through 4. This acts as the return Path for the Sources connected to channel-B Input.
Page 60
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-23 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-5/12 TERMINAL DESCRIPTION Low bandwidth ADC input port Pin Name Pin # Description VDDA33_LBADC Analog Powet (3.3V) for Low Bandwidth ADC Block. Must be bypassed with a 0.1 uF capacitor.
Page 61
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-24 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-6/12 TERMINAL DESCRIPTION Digital video Input port Pin Name Pin # Description VID2_0/VID_DATA_IN_16 VID2_1/VID_DATA_IN_17 VID2_2/VID_DATA_IN_18 VID2_3/VID_DATA_IN_19 Video Input 2 in 8-bit with Embedded Sync / Separate Sync format OR R/V data in VID2_4/VID_DATA_IN_20 24-bit format.
Page 62
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-25 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-7/12 TERMINAL DESCRIPTION System interface Pin Name Pin # Description GPIO11/PWM0 This Pin can be programmed to give out Pulse Width Modulated Output Pulses for eternal use.
Page 63
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-26 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-8/12 TERMINAL DESCRIPTION LVDS Display interface Pin Name Pin # Description PBIAS Panel Bias Control (backlight enable, tri-state output, 5 V tolerant).
Page 64
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-27 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-9/12 TERMINAL DESCRIPTION TTL Display interface Pin Name Pin # Description 8-Bit Panels 6-Bit Panels PBIAS Panel Bias Control (backlight enable, tri-state output, 5 V tolerant).
Page 65
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-28 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-10/12 TERMINAL DESCRIPTION Parallel / Serial ROM interface Pin Name Pin # Description 256K x 8 PROM / SRAM Address. Some of these pins also have boot strap functionality.
Page 66
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-29 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-11/12 TERMINAL DESCRIPTION Digital Power and Ground Pin Name Pin # Description RVDD_3.3 Ring VDD. Connect to digital 3.3 V.
Page 67
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-30 Q8001 : FLI30502 (LCD TV Controller with Worldwide Standard Sound Processor and HDMI Receiver)-12/12 TERMINAL DESCRIPTION Audio Port Pin Name Pin # Description I2S_SPDIF_IN_DATA I2S/SPDIF Serial Data Input. I2S_IN_WCLK Left / Right Channel Select Signal.
Page 68
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-31 Q8002, Q8003 : TC74VCX162244FT (Low-Voltage 16-Bit Bus Buffer with 3.6-V Tolerant Inputs and Outputs) PIN LAYOUT IEC LOGIC SYMBOL TOP VIEW TRUTH TABLE SYSTEM DIAGRAM Inputs Outputs 1A1-1A4 1Y1-1Y4 Inputs Outputs 2A1-2A4 2Y1-2Y4...
Page 69
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-32 Q8162 : SiI9185ACTU (Three Input, Single Output Deep Color HDMI Switch)-1/3 BLOCK DIAGRAM R0X0+/- EDID Configuration R0X1+/- I C Switch Logic R0X2+/- R0XC+/- Serializer / TX0+/- Tx Driver R1X0+/- Serializer / R1X1+/- TX1+/-...
Page 70
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-33 Q8162 : SiI9185ACTU (Three Input, Single Output Deep Color HDMI Switch)-2/3 TERMINAL DESCRIPTION System switching Pin Name Pin # Description DSDA0, Input / DDC I C Data for respective port. DSDA1, Output DSDA2...
Page 71
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-34 Q8162 : SiI9185ACTU (Three Input, Single Output Deep Color HDMI Switch)-3/3 TERMINAL DESCRIPTION Differential Signal Data Pins Pin Name Pin # Description RX0+ 20, 41, 62 Input TMDS input data pairs. RX0- 21, 42, 61...
Page 72
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-35 Q8401 : SiI9134CTU (HDMI Deep Color Transmitter)-1/4 BLOCK DIAGRAM E-DDC CSDA DSDA Master DSCL Slave CSCL Registers CI2CA Receiver Sense + Interrupt Logic Configuration Logic Block RESET# HDCP Keys Video Data EXT_SWING IDCK...
Page 73
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-36 Q8401 : SiI9134CTU (HDMI Deep Color Transmitter)-2/4 PIN LAYOUT RESET# TMODE IOVCC33 CVCC18 DCLK SiI9134 IOVCC33 100-pin TQFP (Top View) CVCC18 CVCC18 IOVCC33 MCLK SPDIF VSYNC HSYNC...
Page 74
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-37 Q8401 : SiI9134CTU (HDMI Deep Color Transmitter)-3/4 TERMINAL DESCRIPTION Video and Audio Input pins Pin Name Pin # Description D0 - D11 98 - 84 Input These are the lower 12 bits of the 36-bit pixel bus.
Page 75
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-38 Q8401 : SiI9134CTU (HDMI Deep Color Transmitter)-4/4 TERMINAL DESCRIPTION Differential Signal Data Pins Pin Name Pin # Description TX0+ Output TMDS output data pairs. TX0- Output TX1+ Output TX1- Output TX2+ Output TX2-...
Page 78
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-41 Q8501 : SiI9135ACTU ( HDMI Receiver)-3/5 TERMINAL DESCRIPTION Digital Video Output Pins Pin Name Pin # Description Output 36-Bit Output Pixel Data Bus. Q35:0 is highly configurable using the Output VDD_CONFIG register. It supports a wide array of output formats, including Output multiple RBG and YCbCr bus formats.
Page 79
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-42 Q8501 : SiI9135ACTU ( HDMI Receiver)-4/5 TERMINAL DESCRIPTION Digital Audio Output Pins Pin Name Pin # Description XTALIN Input Crystal Clock Input. Also allows LVTTL input. Frequency required: 26-28.5 MHz XTALOUT Output Crystal Clock Output.
Page 80
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-43 Q8501 : SiI9135ACTU ( HDMI Receiver)-5/5 TERMINAL DESCRIPTION Differential Signal Data Pins Pin Name Pin # Description R0XC+ Input TMDS Input Clock Pair HDMI Port 0 R0XC- Input R0X0+ Input TMDS Input Data Pair...
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-44 Q6310 : M61540FP (6ch Electronic Volume with 5 Input Selector)-1/2 BLOCK DIAGRAM MCU I/F DVDD Gain Gain Control Control SLOUT BASL2 SROUT BASL1 Gain Gain Gain Gain Control Control Control Control Bass /Tre...
Page 82
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-45 Q6310 : M61540FP (6ch Electronic Volume with 5 Input Selector)-2/2 TERMINAL DESCRIPTION Pin No. Pin Name Description 1, 8, 25, 32 AGND Analog Ground Input pin of L channel (Multi) Input pin of R channel (Multi)
Page 83
DTR-5.9 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-46 Q6311 : ICL3221ECVZ (RS-232 Transmitters / Receivers) BLOCK DIAGRAM TOP VIEW FORCEOFF T1OUT FORCEON T1IN INVALID R1IN R1OUT TERMINAL DESCRIPTION Pin Name Description System power supply input (3.0V to 5.5V). Internally generated positive transmitter supply (+5.5V).
Page 85
DTR-5.9 MICROPROCESSOR TERMINAL DESCRIPTIONS-1 Q701 : MPD70F3746 (Main Microprocessor) Pin No. Pin Name Act. Description AVREF Power supply. (A/D reference) AVSS Ground. FANCTRL Not used. VDLOCK INT signal input from Video signal processor (FLI30502). AVREF Power supply. (D/A reference) VSPREQ Video signal processor (FLI30502) handshaking 1.
Page 86
DTR-5.9 MICROPROCESSOR TERMINAL DESCRIPTIONS-2 Q701 : MPD70F3746 (Main Microprocessor) Pin No. Pin Name Act. Description DSPCLK DSP IC (D788E001) clock output. MUTE_RX HDMI receiver IC (SiI9135) RXMUTE signal input. RST_RX HDMI switch IC (Sii9185) reset signal output. CECOUT CEC (consumer electronic control) signal output.
Page 87
DTR-5.9 MICROPROCESSOR TERMINAL DESCRIPTIONS-3 Q701 : MPD70F3746 (Main Microprocessor) Pin No. Pin Name Act. Description VSW_S7 Video switch IC (AN15880A) control. VSW_S8 Video switch IC (AN15880A) control. Ground. VCC2 Power supply. SBZ2MUT Surround back/ Zone 2 muting control. PRRLF Preout (front L/R) relay control.
DTR-5.9 SERVICE PROCEDURE-1 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse, For fuse rating, refer to the marking adjacent to the symbol.
Page 89
DTR-5.9 SERVICE PROCEDURE-2 5. To check version of Main microprocessor, DSP, Video microprocessor and Netwok microprocessor FW 1. Press and hold down Display button, then press On/Standby button when the unit is power on. The main microprocessor version will be displayed on Front Display for about 3 seconds.
DTR-5.9 FIRMWARE UPDATE-1 GENERAL To check version of Main Microprocessor, DSP and Video FW 1. Press and hold down Display Display button, then press On/Standby On/Standby button when the unit is power on. The main microprocessor version will be displayed on Front Display for about 3 seconds.
Page 91
DTR-5.9 FIRMWARE UPDATE-2 UPDATE OF MAIN MICROPROCESSOR-2/2 Update Procedure 1. Double click "Update.exe Update.exe" in the unzipped folder "Update_SR606Main1.2.zip” (Folder name depends on the version). The following window will appear. Updater COM Port(C) Log Visible Firmware Read Result 001. F0000007 / FF000000 002.
Page 92
DTR-5.9 FIRMWARE UPDATE-3 UPDATE OF DSP Preparation for update Update is done by playback of CD-R in a CD player. Tool 1. Blank CD-R : 1pc, PC (Personal computer with CD-R writer) 2. Writing soft : “CD_SR6060_08213A.wav” (File name depends on the version.) <Note>...
Page 93
DTR-5.9 FIRMWARE UPDATE-4 UPDATE OF VIDEO-1/6 Preparation for update Hardware tool 1. PC(Personal computer) with RS232 terminal. OS : Windows XP or 2000. 2. RS232 straight through cable. 3. Adaptor jig : 0JHUDSON. 0JHUDSON. Software tool GProbe 5[1].4.0.3.zip GProbe 5[1].4.0.3.zip Unzip it and install the software by clicking “GProbe54.0.3.exe...
Page 94
DTR-5.9 FIRMWARE UPDATE-5 UPDATE OF VIDEO-2/6 Update Procedure 1. Start GProbe by clinking the icon. 2. Turn on the unit and make sure that some information appears in the bottom right corner of the window. If nothing appears in this area, the PC does not communicate with the unit.
Page 95
DTR-5.9 FIRMWARE UPDATE-6 UPDATE OF VIDEO-3/6 Troubleshooting Communication error Check the serial port setting by following 1 and 2 . <Note> Make sure that software applications installed after GProbe do not occupy the specified port. Connection Settings Commands Options Document...
Page 96
DTR-5.9 FIRMWARE UPDATE-7 UPDATE OF VIDEO-4/6 Update Procedure (continue) 3. Click “Commands” in the menu bar and select “Batch Batch” Genesis GProve 5 - GProbe Register Document1 File View Resister Terminal Options Document Window Help Commands Debug ON GProve 5 Register Document1...
Page 97
DTR-5.9 FIRMWARE UPDATE-8 UPDATE OF VIDEO-5/6 Update Procedure (continue) 5. Make sure that “ Command Successful. Writing FLASH... Command Successful. Writing FLASH...” appears in the bottom right corner of the window. - Er a si ng fl ash .. - Bl a nk che cki n g ..
Page 98
DTR-5.9 FIRMWARE UPDATE-9 UPDATE OF VIDEO-6/6 To install GProbe 1. Unzip “GProbe 5[1].4.0.3.zip” and click the extracted file “GProbe5.4.0.3.exe.” 2. Follow the instructions on the window as below. <Note> Not all the windows are shown in this procedure. Setup - Genesis GProve 5...
Page 99
DTR-5.9 OPERATION CHECK-1 SPEAKER PROTECT-1 Circuit configuration The unit go into protect mode when either of thermal detection, dc voltage detection or current detection circuit operates. Power amplifier VPRO : DC voltage detection IPRO : Current detection Q6070 Q6071 Thermal sensor...
Page 100
DTR-5.9 OPERATION CHECK-2 SPEAKER PROTECT-2 DC Voltage detection check [When] 1. Exchange power transistors (Q6050 - Q6056, Q6060 - Q6066). 2. Exchange amplifier PC board ass'y (NAAF-9424). [Procedure] Note : No load. No input. 1. Press and hold down CD button, then press On/Standby button while the unit is powered on.
Page 101
DTR-5.9 OPERATION CHECK-3 SPEAKER PROTECT-3 Current detection check [When] 1. Exchange power transistors (Q6050 - Q6056, Q6060 - Q6066). 2. Exchange amplifier PC board ass'y (NAAF-9424). [Procedure] Notes : No input. Do not check two or more channels at the same time.
Page 102
DTR-5.9 OPERATION CHECK-4 POWER SUPPLY CONTROL Configuration The power supply voltage of +/-B1 for power amplifier is changed by the relays (RL6901, 6902). Power amplifier Output sensor RL6901 S1H+ +22V S1H- Thermal sensor Q6380 RL6902 D6901 To Power amp. S1L+...
DTR-5.9 DEBUG MODE-1 DSP DEBUG MODE-1 The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode. This information will help to analysing digital audio no sound trouble. To set in Debug mode 1.
Page 104
DTR-5.9 DEBUG MODE-2 DSP DEBUG MODE-2 Content of Display (Continued) DSP Port DSP Decode This figure is displayed in hexadecimal form. o = Decode OK If this is transformed to binary form, each bit indicates x = Decode NG the following DSP port status. Refeo to <Fig-1>.
Page 105
TX-SR606 DEBUG MODE-3 DSP DEBUG MODE-3 Trouble Shooting by DSP DEBUG MODE (Continued) Symptom on FL display Cause of trouble Remedy Digit No. on FL Continue to display "1" Interface between DSP and MPU is no good. The same remedy as 10 -b. Continue to display "2"...
Page 106
DTR-5.9 DEBUG MODE-4 SERVICE INFORMATION MODE Trouble Shooting by Displaying Service information This service information display system is helpful in analyze the status when the unit goes into Protect mode and is powered off. Pay attention that the status will change if a button is pushed.
Page 107
DTR-5.9 DEBUG MODE-5 HDMI DEBUG MODE-1/2 HDMI-related operations can be checked to some extent by displaying HDMI debug mode. To enter this mode Hold down Display Display button for 3 seconds. Information display will last for about 8 seconds. Content of Display FL Display Segment No.
Page 108
DTR-5.9 DEBUG MODE-6 HDMI DEBUG MODE-2/2 FL segment No. ---> Video Input Format Status Description Video signal route : Source Device HDMI Through Video resolution is not Determined Error State ---> Remedy Video signal route : Via Video Signal Processor Error State --->...
Page 109
HDMI VIDEO SETUP TROUBLE This trouble shooting map focuses on the video setup errors regarding HDMI. For reference, read DTR-5.9 Owner’s Manual. Analysis written below is of typical cases. So, more detailed check may need in actual cases. Video trouble...
Page 110
HDMI AUDIO SETUP TROUBLE This trouble shooting map focuses on the audio setups and connections regarding HDMI. For reference, read DTR-5.9 Owner’s Manual. Analysis written below is of typical cases. So, more detailed check may need in actual cases. Audio trouble...
Page 111
DTR-5.9 DEBUG MODE-9 HDMI TROUBLESHOOT-3/3 HDMI HARDWARE TROUBLE Main Device (IC) Circuit No. Function Description <Notes> 1. This trouble shooting map focuses on the HDMI hardware troubles. Q701 Main microprocessor MPD70F3746 Q8001 Video processor FLI30502 For detailes, refer to TX-SR606 Block Diagrams and Schematic Diagrams.
DTR-5.9 ADJUSTMENT PROCEDURE-1 IDLING CURRENT ADJUSTMENT [When] 1. Exchange Power transistor (Q6050 - Q6056, Q6060 - Q6066). 2. Amplifier PC board (NAAF-9424). [Procedure] Refer to "ADJUSTMENT PROCEDURE-2 " for the adjustment points and the test points. <Note> No load and No signal 1.
Page 113
DTR-5.9 ADJUSTMENT PROCEDURE-2 IDLING CURRENT ADJUSTMENT Adjustment points and the test points Adjustment point Test point (Trimming resistor) Front side R6046 P6086 Surround Back Right ch P6086 R6044 P6084 Surround Amplifier PC board Right ch (NAAF-9424) P6084 R6041 P6081 P6081...
1/98 PAGE DTR-5.9 <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED.
Page 120
<MPA> EXPLODED U45 or TUNER UNIT FAE485-E11EU 240154 <MPA> EXPLODED DTR-5.9 PC BOARD PARTS LIST AMPLIFIER PC BOARD (NAAF-9424-1G / 1H) PCB1 TRANS. SEC. TERMINAL PC BOARD (NAPS-9425-1G / 1H) PCB1 THERMAL SENSOR PC BOARD (NAETC-9426-1G / 1H) PCB1 ZONE 2 SPEAKER TERMINAL PC BOARD (NATRM-9428-1G / 1H)
Page 140
27/98 PAGE JL5502A WIRE HOL NSCT-7P878 25051091 <MDD> PCB1 JL6065 JUMPER LEAD JL9 200 B PCB1 JL6065A WIRE HOL NSCT-9P880 25051093 PCB1 JL6402 JUMPER LEAD JL3 250 B PCB1 JL6402A WIRE HOL NSCT-3P874 25051087 PCB1 JL6600 JUMPER LEAD JL7 300 H PCB1 JL6600A WIRE HOL...
Page 141
28/98 PAGE Q6314 or DTC114ES 2213290T PCB2 Q6315 KRC102M 2215960T PCB2 Q6315 or DTC114ES 2213290T PCB2 Q6316 KTA1266-GR 2215975T PCB2 Q6316 or 2SA1015-GR 2211455T PCB2 Q6317 KRC102M 2215960T PCB2 Q6317 or DTC114ES 2213290T PCB2 Q6318 KRA102M 2215770T PCB2 Q6318 or DTA114ES 2213510T PCB2...
Page 142
29/98 PAGE Q7404 or DTC114TS 221299T PCB2 T902 P TRANS NPT-1520JQ 2301812A PCB2 !, <MDD> T902 P TRANS NPT-1520GQ 2301813A PCB2 !, <MPA> D911 DIODE 1SS133 223163T PCB2 D912 DIODE 1SS133 223163T PCB2 D921 DIODE 1SS133 223163T PCB2 D922 DIODE 1SS133 223163T PCB2...
Page 143
30/98 PAGE D7415 SPCF D SIR-34ST3F 225456 PCB2 C901 IS C LE103-C3.5 3800042S PCB2 C901 or IS C ECQU2A103MLC 3800039S PCB2 C902 TF C ECQ-V50V-104J 374721044T PCB2 C911 TF C ECQ-B50V-102J 374721024T PCB2 C921 CERA C CK45F50V-223Z 335622230T PCB2 C922 VR C CE04W25V-2200M(VR) 394652227S...
Page 144
31/98 PAGE C6033 CERA C CK45B50V-102K 335321025T PCB2 C6034 UTSP C CE04W25V-220M(UTSP) 397552217T PCB2 C7001 CERA C CK45F50V-223Z 335622230T PCB2 C7002 MMT C MMT50V-104J 375521044T PCB2 C7003 CERA C CC45SL50V-101J 345021014T PCB2 C7004 CERA C CC45SL50V-101J 345021014T PCB2 C7005 CERA C CC45SL50V-101J 345021014T PCB2...
Page 145
32/98 PAGE C7402 CERA C CC45SL50V-101J 345021014T PCB2 C7403 UTSP C CE04W25V-47M(UTSP) 397554707T PCB2 C7404 CERA C CC45SL50V-330J 345023304T PCB2 C7405 ELECT C CE04W16V-10M(S) 353741009T PCB2 C7411 UTSP C CE04W25V-47M(UTSP) 397554707T PCB2 C7412 UTSP C CE04W25V-47M(UTSP) 397554707T PCB2 C7421 CERA C CK45B50V-102K 335321025T PCB2...
Page 146
33/98 PAGE R6126 CARBON R R16J-220K 417342244T PCB2 R6129 CARBON R R16J-220K 417342244T PCB2 R6130 CARBON R R16J-470 417344714T PCB2 R6131 CARBON R R16J-470 417344714T PCB2 R6132 CARBON R R16J-470K 417344744T PCB2 R6133 CARBON R R16J-470K 417344744T PCB2 R6134 CARBON R R16J-470K 417344744T PCB2...
Page 147
34/98 PAGE R6213 CARBON R R16J-100 417341014T PCB2 R6214 CARBON R R16J-100 417341014T PCB2 R7001 CARBON R R16J-100K 417341044T PCB2 R7002 CARBON R R16J-3.3K 417343324T PCB2 R7003 CARBON R R16J-3.3K 417343324T PCB2 R7004 CARBON R R16J-220 417342214T PCB2 R7005 CARBON R R16J-220 417342214T PCB2...
Page 148
35/98 PAGE R7119 CARBON R R16J-1.2K 417341224T PCB2 R7120 CARBON R R16J-2.2K 417342224T PCB2 R7121 CARBON R R16J-3.9K 417343924T PCB2 R7122 CARBON R R16J-12K 417341234T PCB2 R7123 CARBON R R16J-330 417343314T PCB2 R7124 CARBON R R16J-470 417344714T PCB2 R7125 CARBON R R16J-560 417345614T PCB2...
Page 149
36/98 PAGE R7417 CARBON R R16J-56K 417345634T PCB2 R7418 CARBON R R16J-330 417343314T PCB2 R9102 METAL R RNU1/2WCJ-8.2 453530824T PCB2 RL901 RELAY NRL-1P10A-DC9-186 25065683 !, <MDD> PCB2 RL901 RELAY NRL-1P5A-DC9-179 25065669 !, <MPA> PCB2 S7002 R ENCODE EVEHD1F3024B 25065695W PCB2 S7102 PUSH SW NPS-111-S681...
