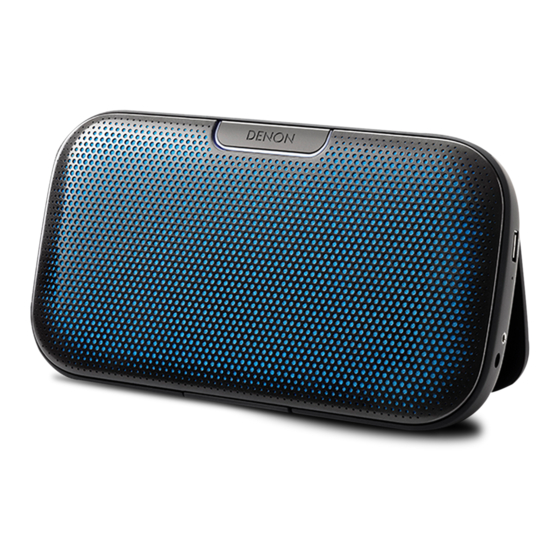

Denon Envaya DSB200 Owner's Manual

Wireless music system
Hide thumbs
Table of Contents

Advertisement

Quick Links

TEST REPORT
Report No.: EMC-
-R0149
http://www.emc2000.co.kr

User manual

EMC
compliance
Ltd.
Page: 1 of 1
480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea
82 31 336 9919 (Main) 82 31 336 4767 (Fax)
This test report shall not be reproduced except in full, Without the written approval.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Envaya DSB200 and is the answer not in the manual?

Questions and answers

Related Manuals for Denon Envaya DSB200

Summary of Contents for Denon Envaya DSB200

  • Page 1: User Manual

    TEST REPORT Report No.: EMC- -R0149 http://www.emc2000.co.kr User manual compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval.
  • Page 2 Contents Preparation Connections Playback Troubleshooting Appendix Envaya DSB-200 WIRELESS MUSIC SYSTEM Owner’s Manual You can print more than one page of a PDF onto a single sheet of paper. Index...

  • Page 3: Table Of Contents

    Contents Preparation Connections Playback Troubleshooting Appendix Contents Preparation Connections Accessories Bluetooth Connection ························································································ 4 ·································································· 14 Features Pairing ···························································································· 14 ······························································································ 5 Three Bluetooth Connection Methods ··········································· 14 High Sound Quality ·········································································· 5 Case 1: Pairing with this unit for the first time ······························· 15 Good Design ····················································································...
  • Page 4 Contents Preparation Connections Playback Troubleshooting Appendix Troubleshooting Contents ··························································································· 22 Tips ································································································· 23 Troubleshooting ··········································································· 24 Restarting the unit ········································································ 27 Appendix Replacing the grill net ····································································· 28 Explanation of Terms ······································································ 29 Trademark information ···································································· 30 Specifications ··················································································· 31 Index ··································································································...

  • Page 5: Preparation

    Playback Troubleshooting Appendix Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference. Accessories Check the following parts before use.

  • Page 6: Features

    Contents Preparation Connections Playback Troubleshooting Appendix Features High Sound Quality Simple Operation • Smartphones that are equipped with the NFC function can be • Despite its compact size, this unit is equipped with two high sound smoothly paired and connected with this unit simply by touching quality full range speakers, and a passive radiator that utilizes this unit with the smartphone.

  • Page 7: Part Names And Functions

    Contents Preparation Connections Playback Troubleshooting Appendix Part names and functions Battery Indicator (vpage 11) Illumination LED This lights in the following way according to the power supply status. Power operation button (X) • Power on (using the AC adapter): Lit Turns the power supply to on/standby (vpage 13). • Power on (using batteries): Lit AUX button (turns off 5 seconds after the power is...
  • Page 8 Contents Preparation Connections Playback Troubleshooting Appendix Charging port Connect using a USB cable (sold separately) to recharge the smartphone or portable music player. Reset button Restarts this unit (vpage 27). AUX Input connector Use a stereo mini cable (sold separately) to connect to the headphones jack of a portable music player, etc.

  • Page 9: Opening The Stand

    Contents Preparation Connections Playback Troubleshooting Appendix Opening the Stand While holding this unit with both hands, use one hand to squeeze the indentations in the stand to open it. Note • When standing this unit up for use, be sure to place it on a flat surface. Placing it on an unstable surface is dangerous because this unit may fall. Index...

  • Page 10: Charging

    Contents Preparation Connections Playback Troubleshooting Appendix Charging Charging this Unit This unit can be charged for use. It can also be used with the supplied AC adapter connected to a wall socket. Before using for the first time, be sure to fully charge this unit. • It takes approximately hours to fully charge the battery when it is completely discharged.

  • Page 11: Connecting The Ac Adapter

    Contents Preparation Connections Playback Troubleshooting Appendix 2 Connecting the AC Adapter This unit automatically starts charging when the AC adapter is connected. See “Remaining battery indicator” (vpage 11) for details on the remaining battery indicator. To household power outlet for Europe 230V, 50/60Hz AC adapter (supplied)
  • Page 12 Contents Preparation Connections Playback Troubleshooting Appendix 2 Remaining battery indicator When running on battery power Press the X button to display the remaining battery when running on The remaining battery level when this unit is being charged or used on battery power.

  • Page 13: Using This Unit's Power Supply To Charge A Smartphone

    Contents Preparation Connections Playback Troubleshooting Appendix Using this unit's power supply to charge a smartphone When a device such as a smartphone or portable music player, etc. is connected to this unit using a USB cable (sold separately), the connected device can be charged.

  • Page 14: Turn The Power On

    Contents Preparation Connections Playback Troubleshooting Appendix Turn the power on Switching the power to standby Press and hold X until an electronic sound is heard. The illumination LED lights and the power supply switches on. Press and hold X for approx. 3 seconds. The LED of the Bluetooth button or AUX button goes out, and the power switches to standby.

  • Page 15: Connections

    Contents Preparation Connections Playback Troubleshooting Appendix Bluetooth Connection You can enjoy listening to music wirelessly by connecting this unit to a Bluetooth compatible device. Pairing Three Bluetooth Connection Methods There are three methods for connecting with Bluetooth. Use the Pairing (registration) is an operation that is required in order to connect a connection method for your particular circumstances.

  • Page 16: Case 1: Pairing With This Unit For The First Time

    Contents Preparation Connections Playback Troubleshooting Appendix Case 1: Pairing with this unit for the first Press and hold the Bluetooth button for 3 seconds until time an electronic sound is heard. The Bluetooth button blinks rapidly and this unit enters pairing mode.
  • Page 17 Contents Preparation Connections Playback Troubleshooting Appendix Select “Envaya” from the list of devices displayed in Playback music on the Bluetooth device. the screen of the Bluetooth device. The music played back on the Bluetooth device is output from this unit. When pairing is complete and the devices are connected by Bluetooth, an electronic sound is heard and the Bluetooth button changes from blinking to lit.

  • Page 18: Case 2: Connecting To A Bluetooth Device

    Contents Preparation Connections Playback Troubleshooting Appendix Case 2: Connecting to a Bluetooth Select “Envaya” from the list of devices displayed in device that has already been the screen of the Bluetooth device. When a device is connected by Bluetooth, an electronic sound is paired heard and the Bluetooth button changes from blinking to lit.

  • Page 19: Case 3: Nfc Connection To A Bluetooth Device Equipped With

    Contents Preparation Connections Playback Troubleshooting Appendix Case 3: NFC connection to a Bluetooth Playback music on the Bluetooth device. device equipped with the NFC Music from the Bluetooth device is output from this unit. function • When a Bluetooth device that is playing back music touches the N mark on this unit, the music starts being output from this unit.

  • Page 20: Simultaneously Connecting Bluetooth Devices

    Contents Preparation Connections Playback Troubleshooting Appendix 2 Switching playback devices Simultaneously connecting Bluetooth devices (Multipoint function) Stop or pause playback on the device that is currently playing back. Music can only be output from this unit from one Bluetooth device connected using Bluetooth, but three Bluetooth devices can be simultaneously Playback the device that you want to playback.

  • Page 21: Playback

    Contents Preparation Connections Playback Troubleshooting Appendix Adjusting the volume The volume of the music output from this unit can be adjusted both on Turning off the sound temporarily the Bluetooth device and on this unit. (muting) Connect this unit and a Bluetooth device. • For details on how to connect, see “Bluetooth Connection”...

  • Page 22: Listening To Music Using A Wired Connection

    Contents Preparation Connections Playback Troubleshooting Appendix Listening to music using a wired connection Note You can enjoy listening to music from this unit by connecting a portable music player, etc. to this unit using a stereo mini cable (sold separately). • Use a stereo mini cable that has 3-pole plugs.

  • Page 23: Troubleshooting

    Contents Preparation Connections Playback Troubleshooting Appendix Contents 2 Tips ..............(22) 2 Troubleshooting ..........(22) I want to charge a Bluetooth device ..........(23) Power does not turn on ..............(22) I want to replace the net in the unit ..........(23) No sound comes out ................(25) I want to connect multiple Bluetooth devices and switch easily Sound is distorted, interrupted or noise occurs .......(25) between them ..................(23)

  • Page 24: Tips

    Contents Preparation Connections Playback Troubleshooting Appendix Tips I want to charge a Bluetooth device • Use a USB cable (sold separately) to connect the Bluetooth device to this unit (vpage 12). I want to replace the net in the unit • Remove the grill and attach one of the supplied interchangeable nets (vpage 28). I want to connect multiple Bluetooth devices and switch easily between them • Music can only be output from this unit from one Bluetooth device connected using Bluetooth, but three Bluetooth devices can be simultaneously connected to this unit.

  • Page 25: Power Does Not Turn On

    Contents Preparation Connections Playback Troubleshooting Appendix Troubleshooting 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.

  • Page 26: No Sound Comes Out

    Contents Preparation Connections Playback Troubleshooting Appendix 2 No sound comes out Symptom Cause/Solution Page No sound comes out. • Check that the power supply to this unit and connected devices is on. • Check that the volume control this unit and connected devices is adjusted to an appropriate level.

  • Page 27: Cannot Pair Devices

    Contents Preparation Connections Playback Troubleshooting Appendix 2 Cannot pair devices Symptom Cause/Solution Page Cannot pair devices. • Turn the power of this unit off and on again. • Move the Bluetooth device to within 1 meter of this unit and then try again. • Turn the power of the Bluetooth device off and on again.

  • Page 28: Restarting The Unit

    Contents Preparation Connections Playback Troubleshooting Appendix Restarting the unit If this unit does not operate correctly, use a pointed object such as a pin to press the reset button on the side of the unit. Index...

  • Page 29: Replacing The Grill Net

    Contents Preparation Connections Playback Troubleshooting Appendix Replacing the grill net You can replace the grill net with a different colored net. Attach one of the interchangeable nets. • As shown in the figure, align the net with the cutout side, and Unhook the hook on the base of this unit with your hook the other side onto the grill hooks.

  • Page 30: Explanation Of Terms

    Contents Preparation Connections Playback Troubleshooting Appendix Explanation of Terms NFC (Near Field Communication) This is technology that enables wireless communication over a short range. Terminals that are equipped with the NFC function can be easily connected to this unit simply by touching. Index...

  • Page 31: Trademark Information

    Contents Preparation Connections Playback Troubleshooting Appendix Trademark information The N mark is a trademark or registered trademark of NFC forum, Inc. in the United States and in other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license.

  • Page 32: Specifications

    Contents Preparation Connections Playback Troubleshooting Appendix Specifications 2 Audio section Rated output: 125W+125W (Load 8Ω, 20Hz - 20kHz T.H.D 0.05％) 165W+165W (Load 6Ω, 1kHz T.H.D 0.7%) Maximum effective output power: 195W+195W (Load 6Ω, 1kHz T.H.D 10％ 2-channel driving JEITA) 235W (Load6Ω, 1kHz T.H.D 10％ 1-channel driving JEITA) Frequency response: 10Hz - 100kHz：+1, –3dB (in DIRECT mode) Speaker driver:...
  • Page 33 Contents Preparation Connections Playback Troubleshooting Appendix 2 General Waterproofing: IPX2 equivalent AC adapter: AC100 - 240V, 50/60Hz 2 Dimensions Unit : mm 2 Weight : 1.3 kg z For purposes of improvement, specifications and design are subject to change without notice. Index...

  • Page 34: Index

    Contents Preparation Connections Playback Troubleshooting Appendix Index Replacing the grill net ············································ 28 Return to the default settings ······························· 27 Accessories ····························································· 4 Tips ······································································· 23 Troubleshooting ···················································· 24 Connections Turning the power on ············································ 13 AC adapter ·························································· 10 Bluetooth connection (Pairing) ···························...
