4 CHANNEL FLIGHT CONTROL

Below is a list of basic flight functions for your long-range remote control ATOM™ X.While learning to fly
your ATOM™ X it is best to start with a large space until you get used to the basic controls.As you master
flying your ATOM™ X you can move to more advanced maneuvering techniques.Practice makes perfect!
When you have these basic steps down you can move to the next level.

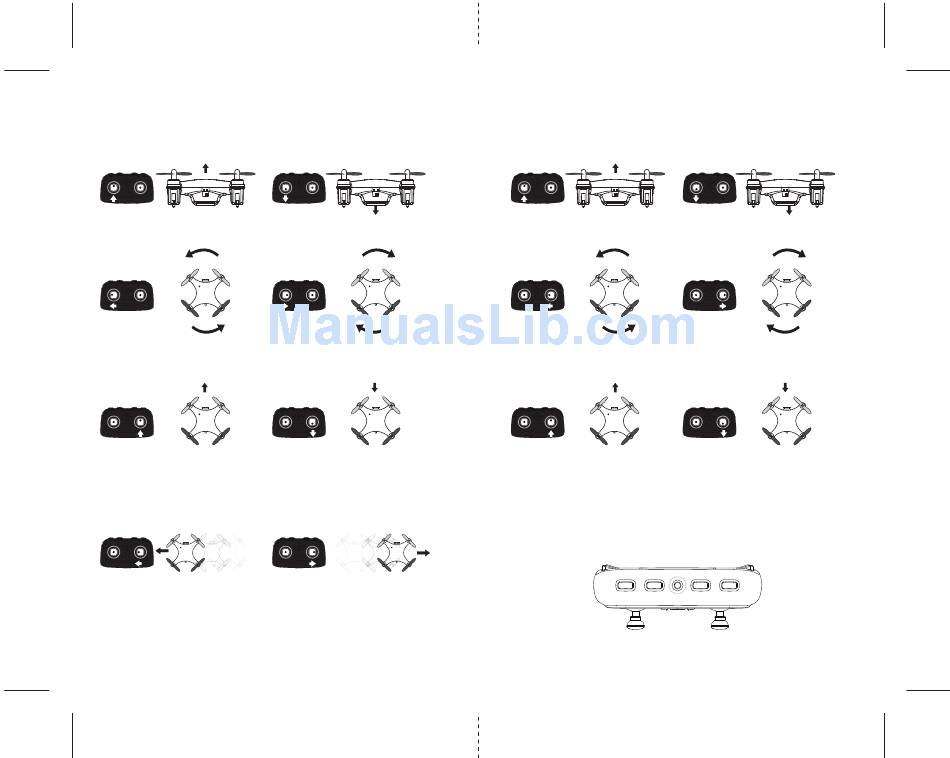

Move the Throttle up to increase the speed of
the motors and the ATOM™ X will rise up.
Move the Throttle stick left and the ATOM™ X
will rotate left.
Move the Direction Control up and the
ATOM™ X will move forward.
Move the Direction Control left and the
ATOM™ X will bank to the left.
7
Move the Throttle down to decrease the speed of
the motors and the ATOM™ X will descend.
Move the Throttle stick right and the ATOM™ X
will rotate right.
Move the Direction Control down and the
ATOM™ X will move backward.
Move the Direction Control right and the
ATOM™ X will bank to the right.
3 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control ATOM™ X.While learning to fly
your ATOM™ X it is best to start with a large space until you get used to the basic controls.As you master
flying your ATOM™ X you can move to more advanced maneuvering techniques.Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the Throttle up to increase the speed of Move the Throttle down to decrease the speed of
the motors and the ATOM™ X will rise up. the motors and the ATOM™ X will descend.
Move the Throttle stick left and the ATOM™ X Move the Throttle stick right and the ATOM™ X
will rotate left. will rotate right.
Move the Direction Control up and the Move the Direction Control down and the
ATOM™ X will move forward. ATOM™ X will move backward.
CALIBRATING THE ATOM™ X
If the ATOM™ X becomes unstable during the course of flying,you may need to calibrate the internal gyros.
To do this place the ATOM™ X on a flat level surface,long press the CALIBRATE button on the top of remote
controller.The LEDs on the ATOM™ X will flash quickly and then remain solid,this indicates your drone has
been recalibrated (see diagram C).
START/LAND CALIBRATE
SPEED
C
VIDEO
CAMERA
STUNT
