RECOGNIZING THE FRONT & BACK OF THE FALCON™
Even though the Falcon™ has four rotors there is still a front or "forward" facing direction and "back" or
backwards facing direction.The front of the Quadrocopter displays BLUE LED lights and the back of the
Quadrocopter displays RED LED lights when activated (see diagram E).
E

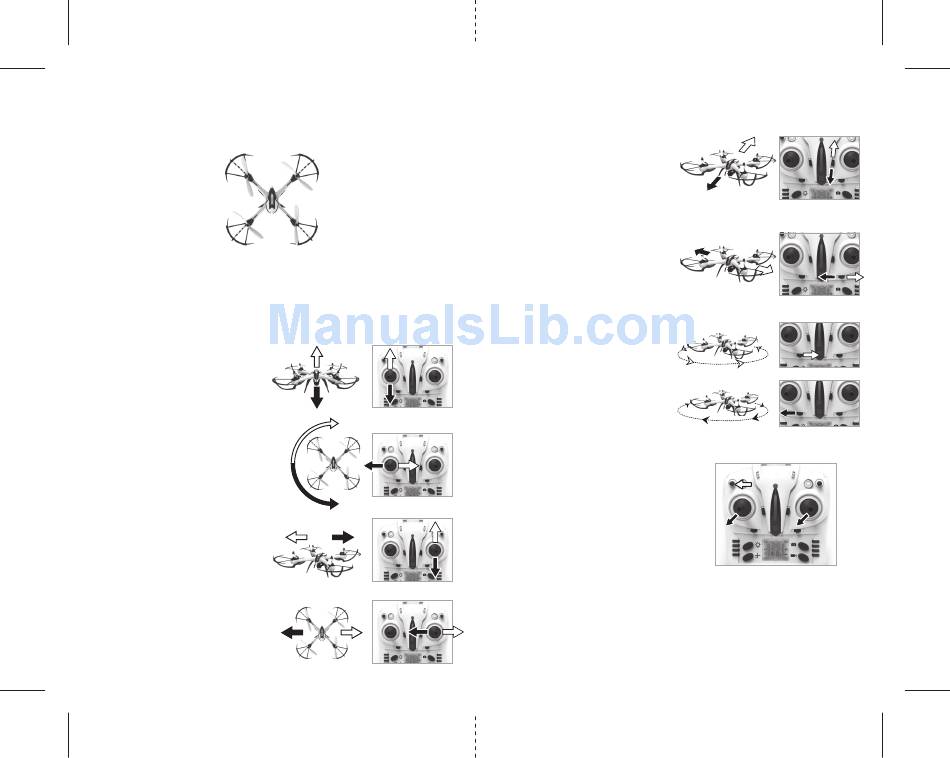

4 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control Falcon™.While learning to fly
your Falcon™ it is best to start with a large space until you get used to the basic controls.As you master
flying your Falcon™ you can move to more advanced maneuvering techniques.Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the left Throttle stick up to increase the
propeller speed and the Falcon™ will accelerate
and ascend.
Move the left Throttle stick down to decrease
the propeller speed and the Falcon™ will
decelerate and descend (see diagram F).
While in the air,move the left Throttle stick left
and the Falcon™ will rotate left.
Move the left Throttle stick right and the
Falcon™ will rotate right (see diagram G).
While in the air,move the right Direction Stick
up and the Falcon™ will move forward.
Move the right Direction Control down and the
Falcon™ will move backward (see diagram H).
While in the air,move the right Direction Control
left and the Falcon™ will bank to the left.
Move the right Direction Control right and the
Falcon™ will bank to the right (see diagram I).
5
FRONT
REAR
F
G
H
I
FRONT
ADJUSTING TRIM
From time to time you may have to adjust the TRIM buttons to ensure the Falcon™ will hover in mid-air
and respond accurately to your commands.
Forward/Backward Trim
• If your Falcon™ drifts forward,push and
release the BACKWARD TRIM button back
repeatedly until the motion stops and proper
flight is maintained (see diagram J).
• If your Falcon™ drifts backwards,push and
release the FORWARD TRIM button forward in
the same manner until the problem is resolved.
Bank Right/Left Trim
• If your Falcon™ drifts left,push and release
the RIGHT TRIM button back repeatedly until
the motion stops and proper flight is
maintained (see diagram K).
• If your Falcon™ drifts right,push and release
the LEFT TRIM button in the same manner until
the problem is resolved.
Spin Right/Left Trim
• If your Falcon™ spins left,push and release
the RIGHT SPIN TRIM button back repeatedly
until the motion stops and proper flight is
maintained (see diagram L).
• If your Falcon™ spins right,push and release
the LEFT SPIN TRIM button in the same manner
until the problem is resolved (see diagram M).
LEVEL SURFACE CALIBRATION
If the aircraft becomes unstable during the
course of flying,you may need to re stabilize the
internal gyros.
To do this place the Falcon™ on a level surface,
set the speed setting to 100% first,then
pull
both of the control levers on the remote down
and to the left (approximately 45º) at the same
time.The LEDs on the Falcon™ will flash quickly
and then remain solid,this indicates your aircraft
has been stabilized (see diagram N).
FLYING ENVIRONMENT
When flying the Falcon™ do so in warm sunny weather with no wind or rain.
WARNING: Do not fly in extreme temperatures or windy conditions as this may affect the performance of
your Falcon™ and cause damage or injury.
J
K
L
M
N
6
