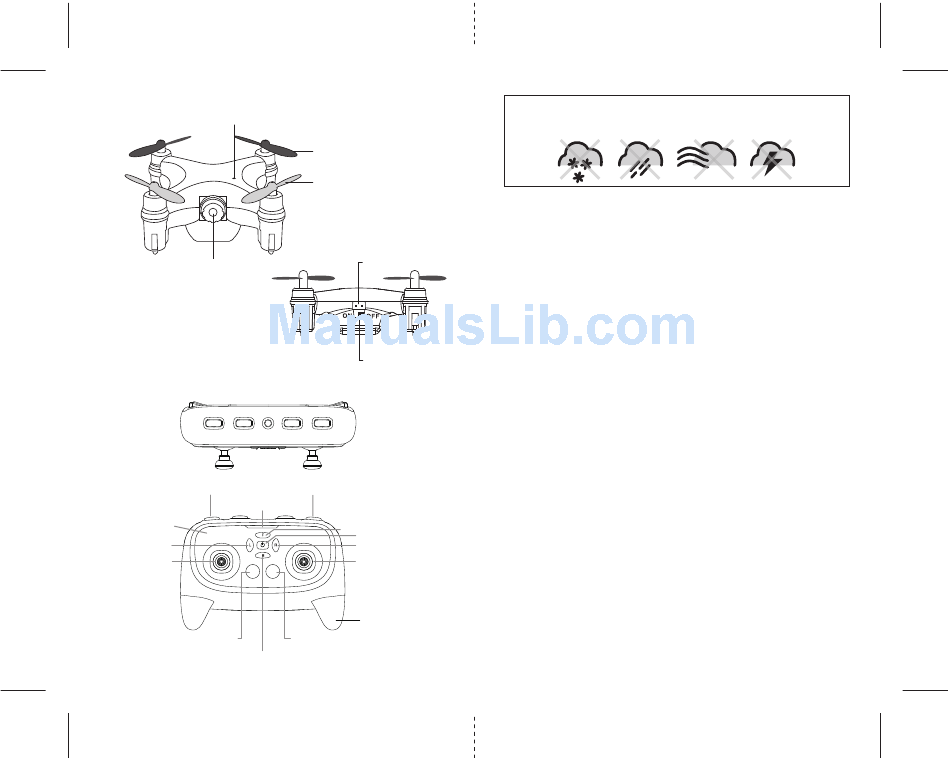

ATOM™ X DIAGRAM
Camera Indicating LED Light
Digital Camera

REMOTE CONTROL DIAGRAM

SPEED START/LAND CALIBRATE
Speed Setting Button
Power Indicator
Speed Indicator
1 2
3
T
Left Bank Trim
Throttle/Yaw
3CH
3 CH Mode
Backward Trim
3
Rear Rotor Blades
Front Rotor Blades
Charging Socket
On/Off Switch
VIDEO
CAMERA STUNT
360˚ Stunt Rolls Button
Forward Trim
3 4 C Power On/Off
H
Right Bank Trim
Direction Control
4CH
Removable Grip
4 CH Mode
WARNING
DO NOT FLY YOUR ATOM™ X IN FOUL WEATHER!
SYNCING YOUR ATOM™ X
Important! When syncing your ATOM™ X quadrocopter with the controller always make sure that
the quadrocopter is on a flat level surface and that your digital trim settings are in the center
position. This ensures that the 6 Axis gyro is properly programmed to mimic your trim settings.
Your ATOM™ X utilizes an automatic 2.4G channel selection system that allows up to 8 people to fly side by
side in the same wireless range with no interference.
For One-Person Play:
1. Before starting,make sure that the power on both your controller and ATOM™ X are in the OFF
position. Make sure that there are no other 2.4G devices in the area as well.
2. Turn ON the ATOM™ X and set it down on a flat level surface.The LED indicator lights of the ATOM™ X
should begin to flash rapidly.
3. Turn ON the remote, you will hear two beeps.Push the throttle all the way forward(1 beep) and then
pull the throttle all the way back.A 2nd beep will sound and the lights should turn to solid.This indicates
your controller and the quadrocopter are successfully synced. If not,repeat above steps.
For Multi Person Play:
4. Before starting,make sure that the power on all ATOM™ X drones and controllers are in the OFF
position.Make sure that there are no other 2.4G devices in the area.
5. Each person will have to sync their ATOM™ X individually at a different time to avoid interference.
Follow steps 1 to 3 above making sure that no one else is syncing at the same time.
6. After syncing a player's ATOM™ X,it should be left ON until all players have synced their ATOM™ X
quadrocopters.
7. Should there be a mistake or interference,all players must turn off their controllers and ATOM™ X
quadrocopters for 60 seconds and then begin the process again.

PREPARING FOR FLIGHT

• Verify that there are 2"AAA"batteries inside the remote control unit and the ATOM™ X has been
fully charged.
• Make sure your ATOM™ X and controller are both turned on.
• Make sure to be in a large space with an open radius of at least 50 feet.
• Make sure the empty space has no obstacles and water close by.Set your ATOM™ X on a clean flat level
surface before take-off.
DO NOT ATTEMPT TO FLY YOUR ATOM™ X IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR LIGHTNING
OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.

FLYING TIPS

• It is recommended that you operate the ATOM™ X in a wide open space.The ideal space should have a
200 foot radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the ATOM™ X with others,make sure all spectators are behind you.
• For best performance,it is recommended that you operate the ATOM™ X in zero wind conditions,
as wind can greatly affect the performance of the aircraft.
4
