INSTALLATION AND OWNER'S MANUAL
Serial #:
Date Installed:
Your Dealer:
MODEL RSW
Swing Gate Operator
UL 325 and UL 991 Listed
21 1/2"
19 1/ 4'' LENGTH X 10 1/ 2'' WIDTH
READ THIS MANUAL CAREFULLY
BEFORE INSTALLATION OR USE.
SAVE THESE INSTRUCTIONS.
16 1/ 4''
14 5/ 8''
12 1/ 8''
2'' O.D. PIPE
( BY OTHERS )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerMaster RSW

Summary of Contents for PowerMaster RSW

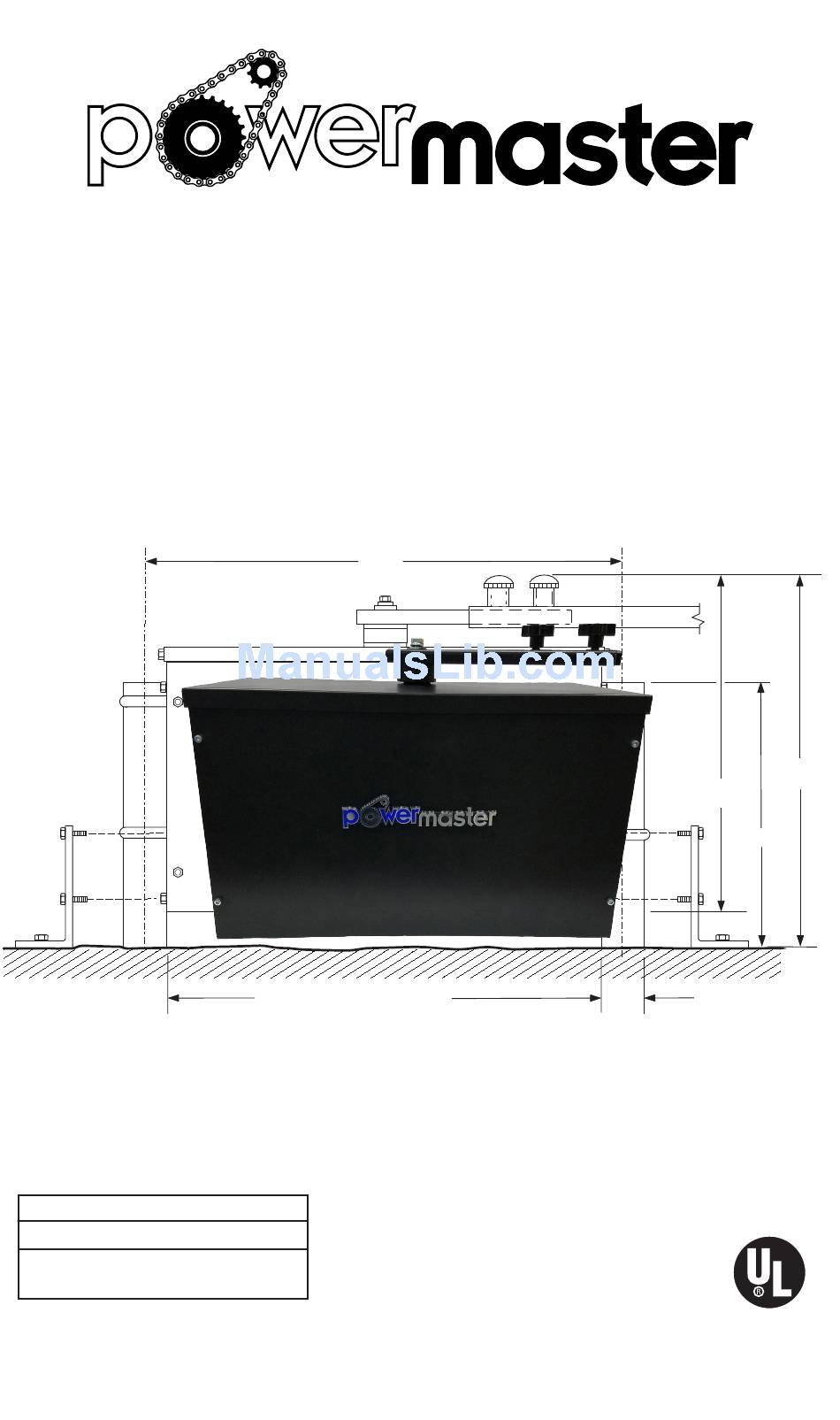

  • Page 1 INSTALLATION AND OWNER’S MANUAL MODEL RSW Swing Gate Operator UL 325 and UL 991 Listed 21 1/2" 16 1/ 4'' 14 5/ 8'' 12 1/ 8'' 2'' O.D. PIPE 19 1/ 4'' LENGTH X 10 1/ 2'' WIDTH ( BY OTHERS )

  • Page 2: Table Of Contents

    Table of Contents Model RSW Residential Swing Gate Operator Important Safety Information ..................3 Important Notice for Gate Operators Manufactured after 1/11/16 ......4 UL Installation and Safety Considerations ..............5 System Designer Safety Instructions..............6 Installer Safety Instructions ................7-8 End User Safety Warnings ................9-10 Manual Operation ....................11...

  • Page 3: Important Safety Information

    IMPORTANT! FOR SWING GATE OPERATING SYSTEMS, SAFETY IS EVERYONE’S BUSINESS. Automatic gate operators provide convenience and security to users. However, because these machines can produce high levels of force, it is important that all gate operator system designers, installers, and end users be aware of the potential hazards associated with improperly designed, installed, or maintained systems.

  • Page 4: Important Notice For Gate Operators Manufactured After 1/11/16

    All gate operators manufactured after January 11th, 2016 must have a monitored input for each direction. In order to satisfy this requirement, all PowerMaster gate operators with the universal board will have one monitored input for each direction. The close photo (11) terminal will function for the close direction and the open photo (10) will function for the open direction.

  • Page 5: Ul Installation And Safety Considerations

    UL INSTALLATION AND SAFETY CONSIDERATIONS INSTALLATION CLASSES CLASS I - RESIDENTIAL VEHICULAR GATE OPERATOR A vehicular gate operator (or system) intended for use in a home of one to four single-family dwellings, or a garage or parking area associated therewith. CLASS II –...

  • Page 6: System Designer Safety Instructions

    SYSTEM DESIGNER SAFETY INSTRUCTIONS ▲ 1. Familiarize yourself with the precautions and warnings for the installer. Users are relying on your design to provide a safe installation. ▲ 2. The operator is supplied with a primary obstruction sensing entrapment protection system.

  • Page 7: Installer Safety Instructions

    INSTALLER SAFETY INSTRUCTIONS BEFORE INSTALLATION ▲ 1. Check to see that the operator is proper for this type and size of gate and its frequency of use. If you are not sure, consult factory. ▲ 2. Check to see that there are no structures adjacent to the area, which may pose a risk of entrapment when gate is opening or closing.

  • Page 8: After Installation

    Control Station ▲ 5. Locate the controls at least 10 feet from the moving gate so that the user can 10 feet observe the gate operation, but is not able to come in contact with the gate while operating the controls. ▲...

  • Page 9: End User Safety Warnings

    END USER SAFETY WARNINGS The manufacturer of the gate operator does not know what type of gate you have, or what type of automatic system is installed on your gate. Be sure you’ve been fully instructed on the sequence of operation for your specific gate system(s). Keep the gate properly maintained and have a qualified service person make repairs.
  • Page 10 ▲ DO NOT increase force adjustment to compensate for a damaged gate. The gate should always be maintained to operate manually as easily as possible to provide maximum protection. ▲ 10. Check all safety systems at least once per month for the correct force, speed and sensitivity.

  • Page 11: Manual Operation

    MANUAL OPERATION Your operator is equipped with an HAND KNOBS FOR MANUAL DISCONNECT emergency disconnect (USE HOLES SHOWN AS STARTING POSITION) for manual operation. 3/8” BOLT Be sure you know how NOTE: TO DISCONNECT OPERATOR FOR 3/8” LOCK WASHER CONTROL ARM to properly use this MANUAL OPERATION, REMOVE HAND EXTENSION...

  • Page 12: Installation Layout

    INSTALLATION LAYOUT 1. Layout mounting post and electrical conduit locations as shown in figures below. Excavate required area for conduit installation and cementing of mounting posts (Minimum of 2 feet deep. Check local codes.) 2. Set mounting post and electrical conduit in place. 3.

  • Page 13: Installation Of Operator

    OPERATOR INSTALLATION 1. Mount operator on posts with mounting angles and mounting plates. Secure position with 2” U-bolts and hardware provided. See Figure 5. 2. Set control arm on output shaft of operator without drive key, and install control arm extension using hand knobs to secure position.
  • Page 14 Note: Adjustment can be made in (4) locations to get desired closed position, as described below. Always start with Option “a”. Move the gate bracket to left or right of the 36 inch starting position. Change length of connecting rod assembly. Relocate control arm extension on control arm to a different hole pattern then start position.

  • Page 15: Electrical Connections

    ELECTRICAL SET-UP AND CONNECTIONS DO NOT APPLY POWER UNTIL TOLD TO DO SO! RISK WARNING OF ELECTRICAL SHOCK OR INJURY MAY RESULT! NOTE: Before connecting the operator, use a voltmeter to determine that the electrical service is 115V. THIS OPERATOR CANNOT BE CONNECTED AT 230 VOLTS. Damage will result which is not covered under warranty.

  • Page 16: Left Hand/Right Hand Conversion

    LEFT/RIGHT HAND CONVERSION: TO CONTROL Refer to Figure 3 to determine hand of BOARD TO MOTOR operator required for this installation. This unit is factory setup for right hand operation. To convert operator to left hand operation, make certain the power switch is off, and locate the motor capacitor (See Figure 10).

  • Page 17: Limit Adjustment

    LIMIT ADJUSTMENT PROCEDURE NOTE: Operator should be completely installed, mechanically and electrically, before attempting to set limit switch cams (See Figure 11). NOTE: For Master/Slave installation, travel time for the Master operator must be set longer than the Slave operator. OPEN LIMIT SWITCH ADJUSTMENT FIGURE 11 Limit Switch...

  • Page 18: Master/Slave Installation

    MASTER-SLAVE INSTALLATION NOTE: A single unit is considered a Master. In a Master/Slave installation, one unit must be converted to LEFT HAND operation. 1. Place jumper on the Master operator’s control board in the OFF position. 2. Place jumper on the Slave operator’s control board in the ON position.

  • Page 19: Accessory Connections

    ACCESSORY CONNECTIONS RADIO CONTROL INSTALLATION SINGLE BUTTON N.O. A three or four wire radio control GREY CONTACT receiver can be installed on this COMMON GREY 4 WIRE operator. This radio control receiver RADIO can only be used to open the gate, TERMINAL A BLACK therefore the TIMER TO CLOSE option...

  • Page 20: Loop Connections

    STANDARD LOOP LAYOUTS FOR APPROX. 36” HEIGHT DETECTION CAUTION: The loop wires LOOP WIRE LOOP SIZE # OF TURNS and lead-in wires must LENGTH (FT) 4’ X 4’ 64’ be a continuous piece of wire without splices. The 4’ X 6’ 80’...
  • Page 21 3. Leaving enough wire for the lead-in, insert the specified number of turns of wire in the cut grooves (See chart). CAUTION: Be careful not to damage the wire insulation during installation. 4. After completing the required number of loop turns, twist the ends together at the rate of 6 turns per foot to form the lead-in.

  • Page 22: Safety Device Connections

    SHADOW LOOP CONNECTION Red Wire From Aux. Open Limit Not Used 9 10 DRIVEWAY LOOP NOTE: TWIST LEADS APPROX. 6 TURNS PER FOOT SAFETY DEVICE CONNECTIONS INHERENT OBSTRUCTION SENSING DEVICE NOTE: The gate MUST move smoothly and easily in manual operation before WARNING attempting this adjustment.

  • Page 23: Secondary Obstruction Sensing Devices

    SECONDARY OBSTRUCTION SENSING DEVICES Two sensing devices (either a contact or a non-contact system) must be installed and connected to this unit to increase protection against entrapment per UL requirements; one for each respective direction. NOTE: Safety device contacts must be 10k monitored or NORMALLY OPEN. NOTE: 24 VAC power is available at marked terminals for devices that may require it (e.g.
  • Page 24 5. Run the operator to the OPEN limit and repeat Step #3 for the outside horizontal edge. 6. Test the OPEN OBSTRUCTION SENSING SYSTEM by depressing the inside horizontal edge sensor while the gate is opening. NOTE: The operator should repeat the STOP AND REVERSE procedure. NOTE: If an edge is activated twice, or a second edge is activated before a limit is hit (full open or close), operator will stop and sound a warning horn.
  • Page 25 AFTER SENSORS ARE CONNECTED 1. Turn power OFF. 2. Make sure the photo-beams are properly aligned per the manufacturer’s specifications. 3. Hold both limits. 4. Turn ON power. 5. Release limits after the beep turns off. 6. Test the CLOSE OBSTRUCTION SENSING SYSTEM for proper operation by blocking the beam across the gate opening while the gate is running closed.
  • Page 26 Notes...

  • Page 27: Warranty

    A one year warranty applies if product has not been registered. ELECTRICAL PARTS (including boards, switches, relays, etc): PowerMaster warrants electrical parts for a two (2) year period, provided that product has been registered. A one year warranty applies if product has not been registered.
  • Page 28 Need Technical Support? Visit: www.vepower.net/faqs Call us toll free @ 1-800-243-4476 Email us: PMtech@VEpower.net www.facebook.com/PowerMasterOperators Scan QR Code with your Smart phone to find us on the web! MANUFACTURED BY V.E. POWER DOOR CO,INC. WWW.VEPOWER.NET REV 2017-1024...
