Ubee UBC1301-AA00 Quick Installation Manual

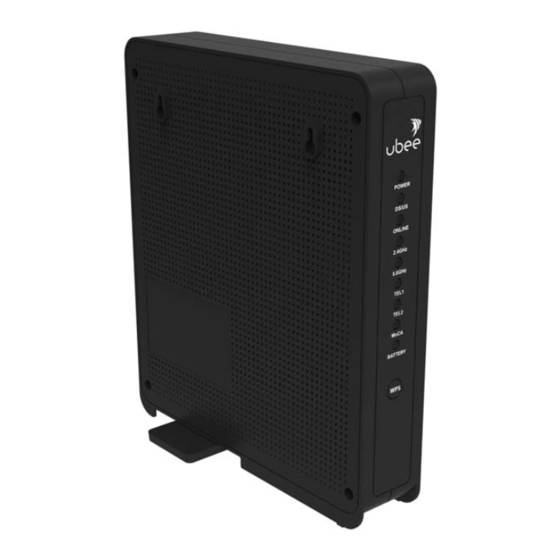

UBC1301-AA00
D3.1 Advanced Wireless Voice Gateway
•

SAFETY NOTICES

Grounding the Device: Install the cable modem to include
grounding the coaxial cable to the earth as close as practical to
the building entrance per ANSI/NFPA 70 and the National
Electrical Code (NEC, in particular, Section 820.93, Grounding of
the Outer Conductive Shield of a Coaxial Cable). The device is
designed for IT power systems with phase-to-phase voltage at
120V.
This unit requires a 100-240V, 50-60Hz power cable. Power cable
must be keyed for proper polarization, and must be fully inserted
to contact the back of the power connector port to ensure snug
connection. Do NOT use any other power cable.
Disconnecting the Device: If the cable modem becomes damaged
or encounters some other abnormality, disconnect the power plug
from the AC wall outlet immediately.
Temperature and Altitude: Install the device in a location not to
exceed the maximum temperature of 104 Fahrenheit (40 Celsius).
Regular operating altitude is 2000 m, and maximum operating
altitude is 4500 m.
•
PREPARING FOR INSTALLATION
✓
Locate the RF (coaxial) cable connector on the wall.
✓
Verify the power outlet is working and is wired correctly. Place
your cable modem within a proper distance from the outlet.
•
INSTALLING THE MODEM

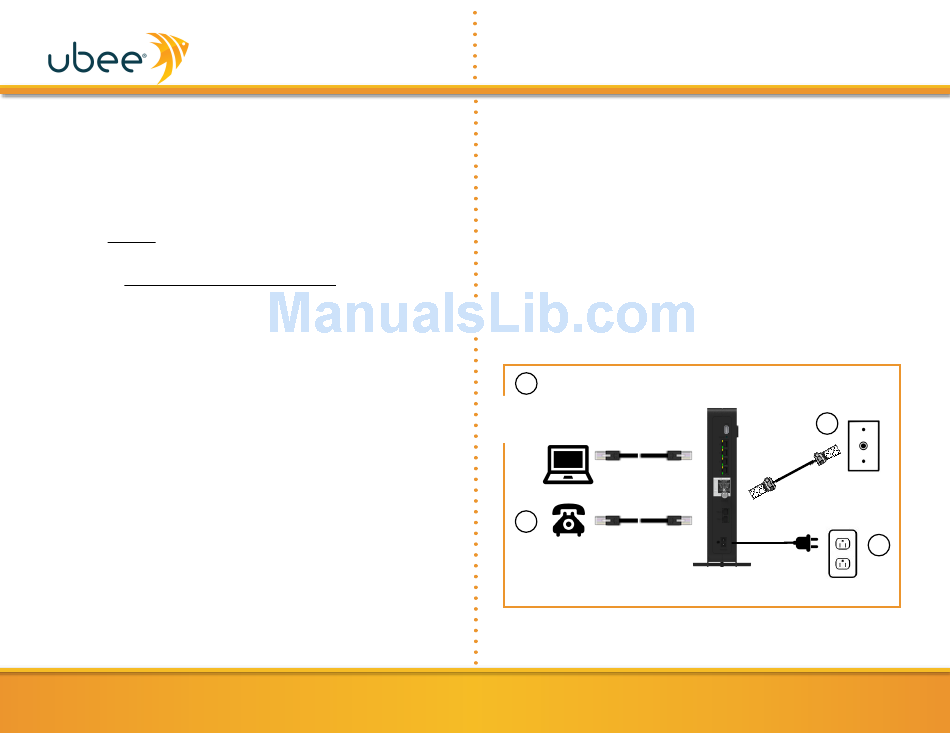

1.
Connect the coaxial cable (not supplied) to the CABLE
connector on the rear panel of the modem and connect the
other end to the cable wall outlet. Do not bend or over tighten
the cables, as this may strain the connector and cause damage.
To connect a modem and a television to the same wall outlet,
you must use a cable line splitter (not included).
Quick Installation Guide
Subscriber
2. Connect the Ethernet cable (supplied) to the Ethernet port on
the back panel of the modem and connect the other end to to
the Ethernet port of a PC. Use a Category 5e or Category 6
Ethernet cable with RJ-45 connectors to ensure Gigabit
Ethernet speeds (when the computer supports it).
3. Connect an RJ-11 phone cable (not supplied) to the TEL1 port
on the modem (when provisioned for voice service as specified
by the service provider), and connect the other end to the
phone port of the telephone. If voice service is not provisioned
through the service provider, telephone service is not available.
4. Connect the power cord (supplied) to the POWER port.
Connect the other end to a power outlet.
2
Connect a PC or Ethernet enabled device (wireless
switch or router). A PC should be connected for
initial device installation and configuration.
3
Analog Phones
www.ubeeinteractive.com
UBC1301-AA00
Advanced Wireless Voice Gateway
RJ-45
Cable/RF
RJ-11
Device must be installed vertically to
obtain optimum wireless performance.
1
4
1
