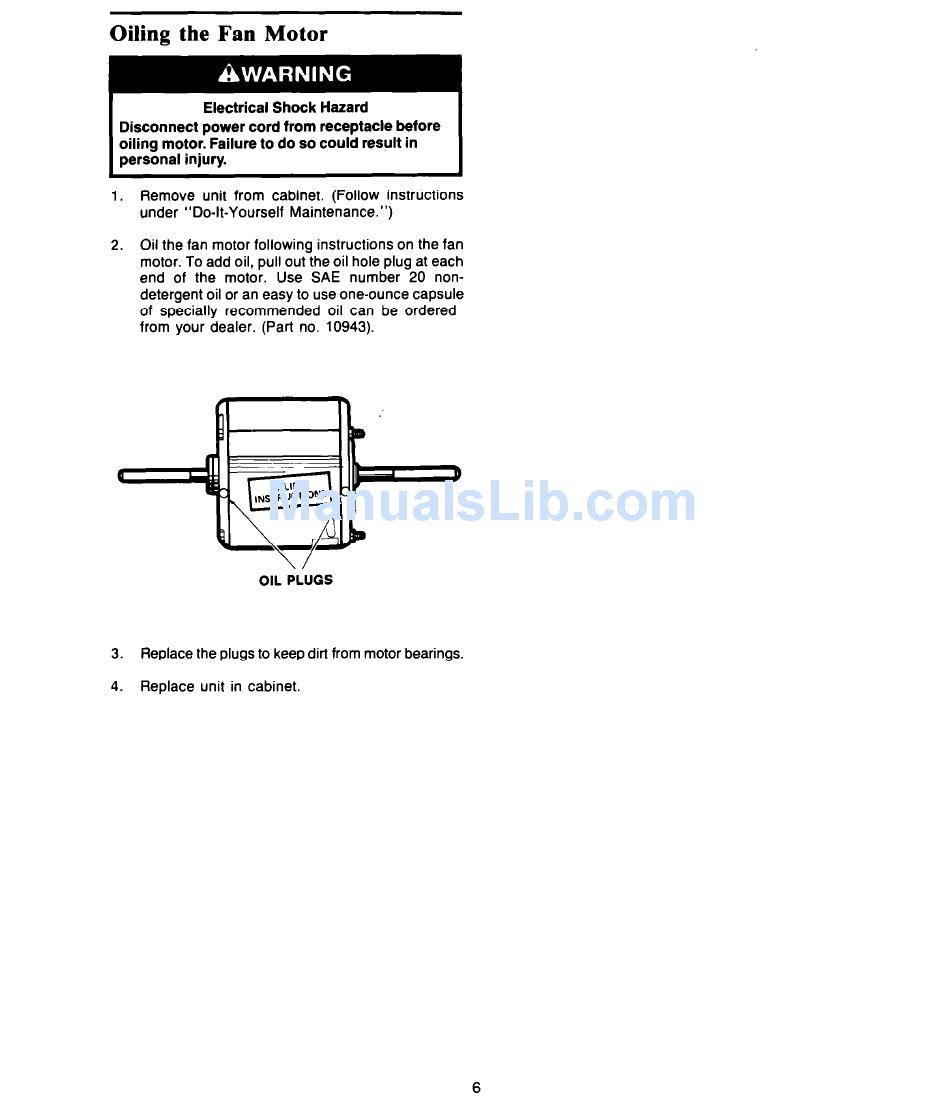

Oiling the Fan Motor
Electrical Shock Hazard
Disconnect power cord from receptacle before
oiling motor. Failure to do so could result in
personal injury.
1.
Remove
unit from cabinet.
(Follow instructions
under "Do-It-Yourself
Maintenance.")
2.
Oil the fan motor following instructions
on the fan
motor. To add oil, pull out the oil hole plug at each
end of the motor.
Use SAE number
20 non-
detergent oil or an easy to use one-ounce capsule
of specially
recommended
oil can be ordered
from your dealer. (Part no. 10943).
\/
OIL PLUGS
3.
Replace the plugs to keep dirt from motor bearings.
4.
Replace unit in cabinet.
6
