Summary of Contents for AEMC F09

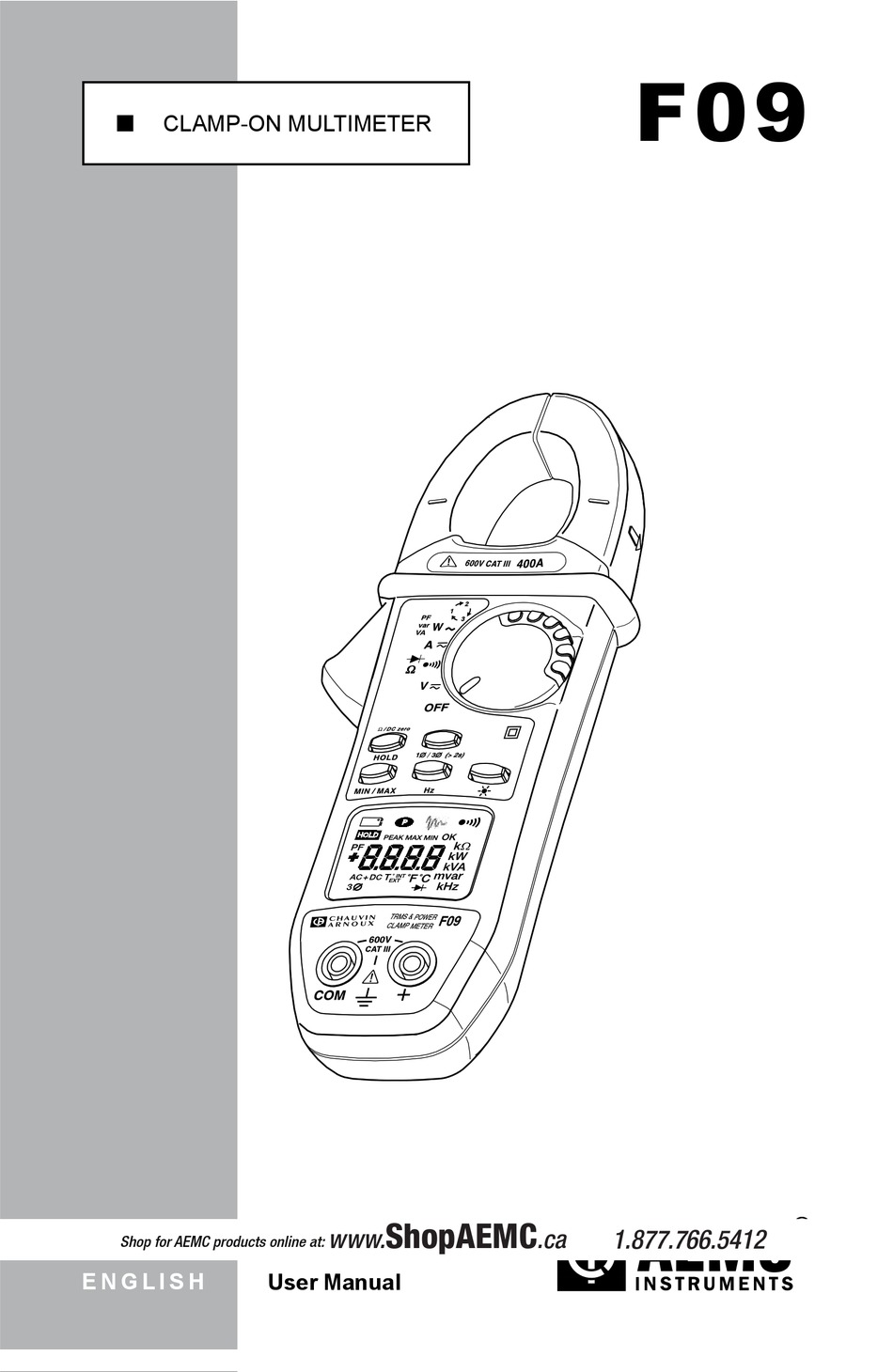

- Page 1 CLAMP-ON MULTIMETER ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: E N G L I S H User Manual...
- Page 2 Serial #: ________________________________ Catalog #: 2129.50 Model #: Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux , Inc. ® d.b.a AEMC Instruments ® www.aemc.com ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at:...
-
Page 3: Table Of Contents
2.7.2 Selection of INRUSH Function ........10 2.7.3 Selecting Continuity, Resistance and Semi-conductor 10 2.7.4 Power Factor Calculation ..........10 2.7.5 Phase Order Indication Measurement ......11 2.8 Yellow Button Secondary Functions (with rotary switch) ..11 2.8.1 Modification of Audio Indication Threshold in ....11 Continuity Test ..............11 2.8.2 Default Configuration ..........11 2.9 MIN/MAX Button Functions ............12 ShopAEMC www. 1.877.766.5412 2.10 Hz Button ................12 Shop for AEMC products online at:... - Page 4 ) ..........24 4.2 Audio Continuity Test - ( ) ...........24 4.2.1 Lead Resistance Compensation (Ω zero) ....25 4.3 Resistance Measurement - (Ω) ..........25 4.4 Semi-Conductor Test - ( ) ............25 4.5 Current Measurements - ( ) ..........26 4.5.1 Correction of Current Measurement Zero (DC Zero) ..26 4.6 INRUSH Function ..............26 4.6.1 Implementation ............27 ShopAEMC www. 1.877.766.5412 4.7 Power Measurement - (W) ............27 Shop for AEMC products online at:...
- Page 5 4.8 Power Factor Calculation - (PF) ..........28 4.9 Frequency Measurement - (Hz) ..........28 4.10 Phase Order Indication - ( ) ..........28 5. MAINTENANCE ................30 5.1 Changing the Battery ..............30 5.2 Cleaning ..................30 5.3 Storage ...................30 Repair and Calibration ................31 Technical and Sales Assistance ............31 Limited Warranty ...................32 Warranty Repairs ...................32 ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at:...
-
Page 6: Introduction
Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. This symbol refers to a type A current sensor. This symbol signifies that application around and removal from HAZARDOUS LIVE conductors is permitted. ShopAEMC In conformity with WEEE 2002/96/EC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 7: Definition Of Measurement Categories
Ordering Information Clamp-on Multimeter Model F09 ........Cat. #2129.50 Includes multimeter, set of red and black leads with probe tips and alligator clips, 9V battery, soft carrying pouch and this user manual. 1.4.1 Accessories and Replacement Parts Replacement set of leads (PTL-31), red and black with probe tips and alligator clips .... -
Page 8: Product Features
Light and rugged construction for field use “INRUSH” function, for measurement of motor starting currents Phase order indication function using “2-wire” technique - PFISTERER License - (instead of 3-wire) capable of determination through contact only, with no particular ShopAEMC www. 1.877.766.5412 connections. Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 9: Model F09 Callouts

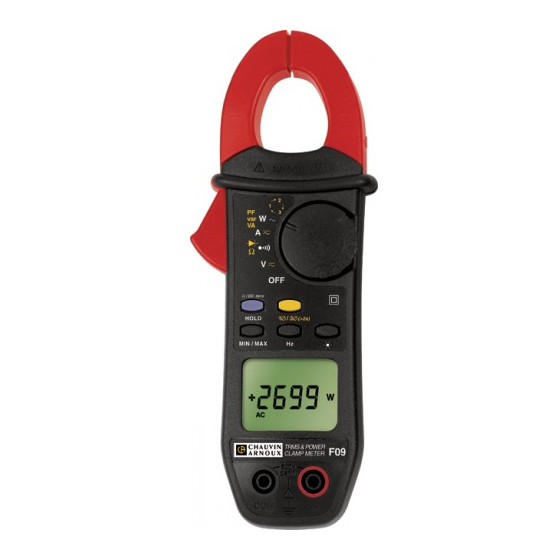

Model F09 Callouts F 09 TRMS & POWER CLAMP METER Jaws Command Buttons 6-way Rotary Switch Liquid Crystal Display ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 10: Rotary Switch Functions
Hold Button Primary Functions 2.5.1 Display Lock Short-press the HOLD button to freeze/lock the display. Press again to unlock. 2.5.2 Preselecting Min/Max Mode Short-press the HOLD button, then the MIN/MAX button to prese- lect the MIN/MAX mode. Press the HOLD button again to make the MIN/MAX mode effective. (Use this function to preselect the MIN/MAX mode to prevent ShopAEMC www. 1.877.766.5412 unwanted or mistaken integration of MIN/MAX values.) Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 11: Automatic Compensation For Lead Resistance
The unit emits a double beep, then the V and symbol flashes. The selected configuration is put into memory when the button is released (the V symbol becomes fixed and the symbol flashes). Proceed in the same way to suppress the V-Live function (the ShopAEMC symbol disappears when the button is released). www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 12: Displaying The Internal Software Version
To quit this function, perform short presses on the MIN/MAX button. 2.7.3 Selecting Continuity, Resistance and Semi-conductor By default, the clamp is in the continuity function ( To select resistance measurement (Ω), semi-conductor test func- tion ( ) and to return to the continuity function ( ), perform a series of short presses on the yellow button. 2.7.4 Power Factor Calculation With the clamp configured in power measurement (switch on posi- tion W) and correctly connected (see § 4.7), perform a short press on the yellow button (the power factor is displayed). ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 13: Phase Order Indication Measurement
The unit emits a double beep, then all the segments of the digital display and the symbol flashes. The default configuration is set when the button is released (the display no longer flashes and the symbol disappears). The default configuration is: • Audio identification threshold: 40Ω • Auto-off: ON • V-Live function: none ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 14: Min/Max Button Functions
NOTE: In MIN/MAX mode, the Auto-off function of the unit is unavailable ( 2.10 Hz Button A short press displays the frequency of the measured signal, another press switches back to the previous value. This button is active only for the A and W functions. 2.11 Button Short pressure: Display backlight command. Auto-off after 2 minutes. Held pressure: Display of estimated remaining battery power, in hours (except INRUSH and phase order functions). ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 15: Liquid Crystal Display
+ OL : Positive value range exceedance (>3999cts) - OL : Negative value range exceedance OL : Unsigned value range exceedance - - - - : Indeterminate value (middle segments) 2.12.2 Symbol Display Flashing: power limited to approximately 1 hour Steady: battery drained, operation and accuracy are no longer guaranteed Constant operation (no automatic shutdown) ON steady when the INRUSH function is selected Fixed: Continuity measurement Flashing: V-Live function selected HOLD Function active PEAK ON in V and A in MIN/MAX mode if the measurement of the peak value is selected ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 16: Buzzer
Short and medium sound every 400 ms: voltage measured higher than the unit’s guaranteed safety voltage. • 5 short and medium recurring beeps: automatic deactivation of the instrument • Short and medium sound: measured continuity value lower than programmed threshold, short-circuit junction during semi-conduc- tor test • Modulated medium continuous sound: value measured in volts, higher than 45V peak when the V-Live function is selected ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 17: Specifications
RMS, a repetitive beep of the buzzer indicates that the measured voltage is higher than the unit’s guaranteed safety voltage. MIN/MAX Mode: Accuracy: same as previous table +0.2% of Reading Capture Time: 100 ms typical PEAK Mode: Accuracy: same as previous table +0.2% of Reading Capture Time: 500 µs typical (2.5 ms max) Detection Threshold Accuracy (V-Live Mode): 45V peak ± 2V ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 18: Continuity ( )
Accuracy: same as previous table +0.2% of Reading Capture Time: 100 ms typical 3.1.4 Semi-Conductor Test ( Display Range Measuring Range 0 to 3.199V Accuracy 1% of Reading + 2cts Resolution Measuring Current* 2mA to 4mA Overload Protection 500V or 750V or peak *Per the voltage measured MIN/MAX Mode: Accuracy: same as previous table +0.2% of Reading Capture Time: 100 ms typical ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 19: Current
100W Reactive Power Measurement Display Range 4000 var 40 kvar 400 kvar 4.00 kvar to 40.0 kvar to Measuring range** 5 to 3999 var 39.99 kvar 240.0 kvar* Accuracy*** 2% of Reading + 1ct Resolution 1 var 10 var 100 var ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 20: Power Factor Calculation (Pf)
0.01Hz 0.1Hz 10Hz Triggering threshold** 5V or 10A *Below 5 Hz, the display shows 0.0 **Below the triggering threshold, the display shows an indeterminate value (- - - -). MIN/MAX Mode: Accuracy: same as above +0.2% of Reading with limitation to 5kHz ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Capture Time: 125 ms typical (every 400 ms) Clamp-on Multimeter Model F09... -
Page 21: Phase Order Indication
Acceptable Voltage Harmonic Distortion: 10% 3.1.11 Power Supply Power Source: Standard 9V alkaline (type IEC 6LF22, 6LR61 or NEDA 1604) Charge life: 60 h or 20,000 x 10 s measurements Low Battery indicator: Flashing: Charge life < 1 h Fixed: Change battery Auto-off: 10 minutes with no action on the rotary switch or the buttons Mechanical Specifications Dimensions: 2.76 x 7.6 x 1.46" (70 x 193 x 37mm) Weight: 9.17 oz (260g) Clamp Tightening Capacity: ≤1.00" (≤26mm) ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 22: Environmental Specifications
Electrical Safety (as per EN 61010-1 ed. 95 and 61010-2-032, ed. 93) • Double Insulation • Pollution Degree 2 • 600V Cat. III • 300V Cat. IV Electric Shocks (test as per IEC 1000-4-5) • 6kV in RCD mode on the voltmeter function, aptitude criterion B • 2kV induced on the current measurement cable, aptitude criterion ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 23: Electromagnetic Compatibility
Conduit interference: 3V/m, aptitude criterion A Mechanical Resistance • Free fall 1m (test as per IEC 68-2-32) • Impacts: 0.5 J (test as per IEC 68-2-27) • Vibrations: 0.75mm (test as per IEC 68-2-6) Auto Power OFF (per UL94) • Housing V0; Jaws V0; Display window V2 ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 24: Variations In Operating Range
60 dB magnetic field (50Hz) W var VA PF Number of moves 50,000 0.3% R 1% + 1ct opening of jaws W var VA PF ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: *The influence on quantities W, var, VA and PF is identical to that on the current assuming sinusoidal voltage Clamp-on Multimeter Model F09... -
Page 25: Typical Frequency Response Curves
10 Hz 1000 Hz Frequency (Hz) - I f (f) 10.00% 5.00% 0.00% Specified limits -5.00% -10.00% -15.00% -20.00% -25.00% 100 Hz 10000 Hz 10 Hz 1000 Hz Frequency (Hz) ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 26: Operation
If the signal measured is >45V peak, the audio indication is acti- vated if the V-Live function is selected (see § 2.6.2). For voltages ≥600V or Trms, a repetitive beep of the buzzer indicates that the measured voltage is higher than the acceptable safety voltage (OL). Audio Continuity Test - 1. Connect the measurement conductors to the terminals. 2. Set the rotary switch to the “ ” position. 3. Connect the unit to the circuit to be tested. The buzzer is contin- uously active as soon as contact is established (circuit closed) and if the resistance value measured is lower than the threshold value chosen by the programming (adjustable from 1 to 40Ω,). NOTE: Above 400Ω, the display indicates OL. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 27: Lead Resistance Compensation (Ω Zero)
2. Set the rotary switch to the “ ” position and press twice on the yellow button; the symbol is displayed. 3. Connect the unit to the semi-conductor (junction) to be tested. • The measurement current moves from the “+” terminal to the “COM” terminal. It corresponds to the direct testing of the semi-conductor junction. Short-circuit junction: audio indication for a threshold <0.050V ShopAEMC www. 1.877.766.5412 Cut or reversed junction (or threshold >3.2V): OL displayed Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 28: Current Measurements
½, 1, 2½, 5 and 10 periods from the largest rms value computed and updated on ½ period. The applications are: • Measurement of motor start-up currents • Correct definition of fuses and circuit breakers (signal amplitude- time relationship) • Stress on components by current overload The field of application is limited to industrial frequencies (15 to 70Hz) ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 29: Power Measurement - (W)
• Connect the measurement leads for voltage measurement; red lead on phase 1, black lead on phase 2 (U measure- ment). • Clamp the conductor of phase 3 (I measurement). NOTE: The same results are achieved with the following couple of measurements: U with I and U with I ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 30: Power Factor Calculation - (Pf)
1. Integration of a “reference” period on one phase L1-L2, for example. 2. Integration of a “reference” period on one phase L1-L3. 3. Calculation of the time delay between “reference” and “measurement” periods, enabling determination of the phase order or phase rotation direction. Special reference condition: 3-phase and sinusoidal network with 50Hz ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: or 60Hz stable frequency Clamp-on Multimeter Model F09... - Page 31 The unit determines the period (less than 10 seconds measurement, the following after leaving L2) messages may be displayed (after 10 s max): → determination of period for mea- MEAS surement in progress → contact on L3 a was performed too late (more than 10 s after display rEF OK) Err V (2 s) then → voltage incorrect Err V (2 s) then → frequency incorrect → determination of phase direction impossible 1.2.3 → direct direction of phase rotation 3.2.1 → reverse direction of phase rotation Return to beginning of sequence ShopAEMC Press yellow button www. 1.877.766.5412 (valid at all times in the sequence) Shop for AEMC products online at: Clamp-on Multimeter Model F09...
-
Page 32: Maintenance
CHAPTER 5 MAINTENANCE Use only factory specified replacement parts. AEMC will not be held ® responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. Changing the Battery Disconnect the instrument from any source of electricity. 1. Set the switch to OFF. 2. Slide a screwdriver into the slot at the top of the battery cover (rear of the clamp) and push the battery cover forward. -
Page 33: Repair And Calibration
Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, mail, fax or e-mail our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship Instruments to our Foxborough, MA address. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Clamp-on Multimeter Model F09... -
Page 34: Limited Warranty
® For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com. Please keep the Warranty Coverage Information with your records. What AEMC Instruments will do: ®... - Page 35 ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at:...
- Page 36 11/08 99-MAN 100299 v4 ShopAEMC www. 1.877.766.5412 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Shop for AEMC products online at: 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
