Airmar P66 Owners And Installation Manual

OWNER' S GUIDE & INSTALLATION INSTRUCTIONS

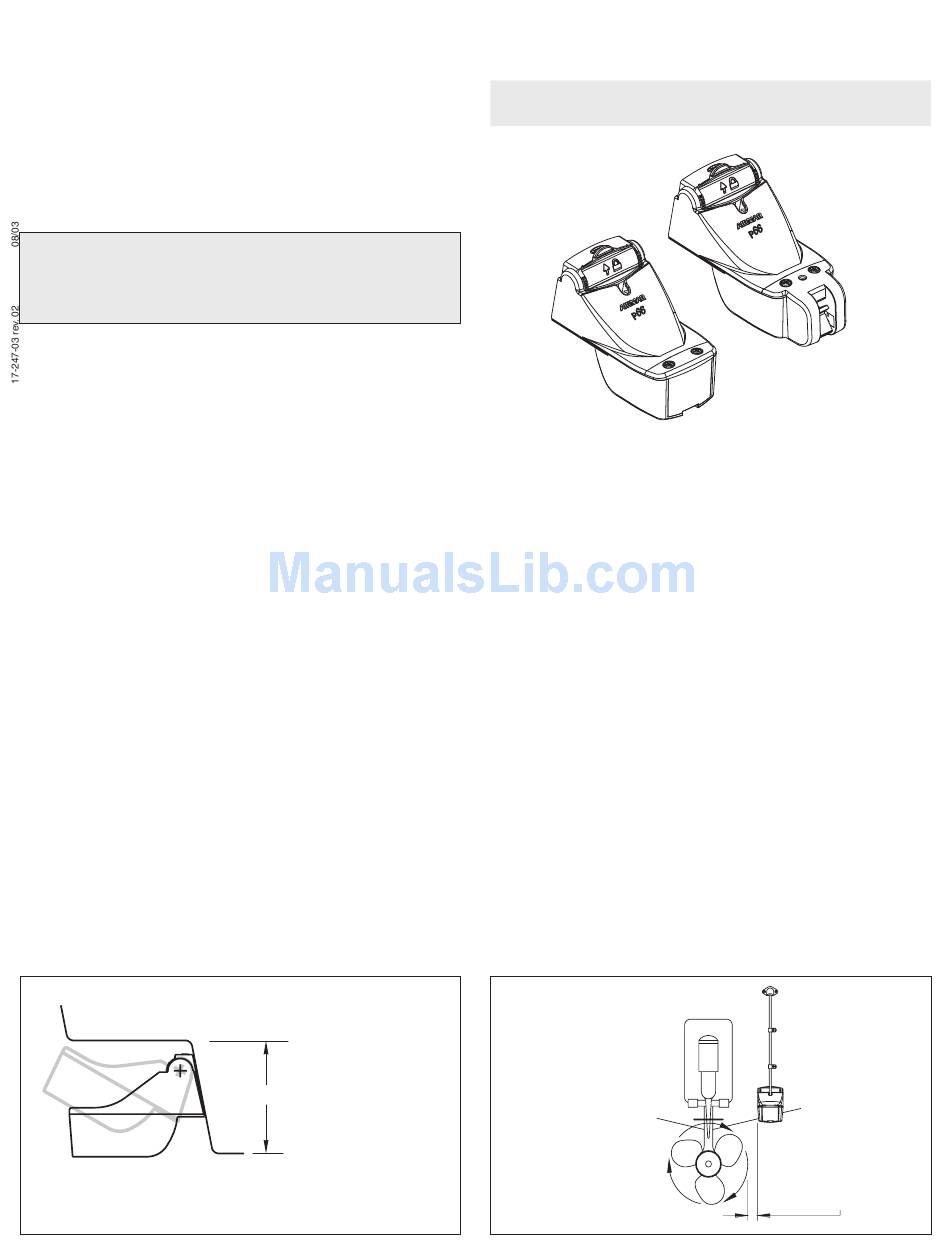

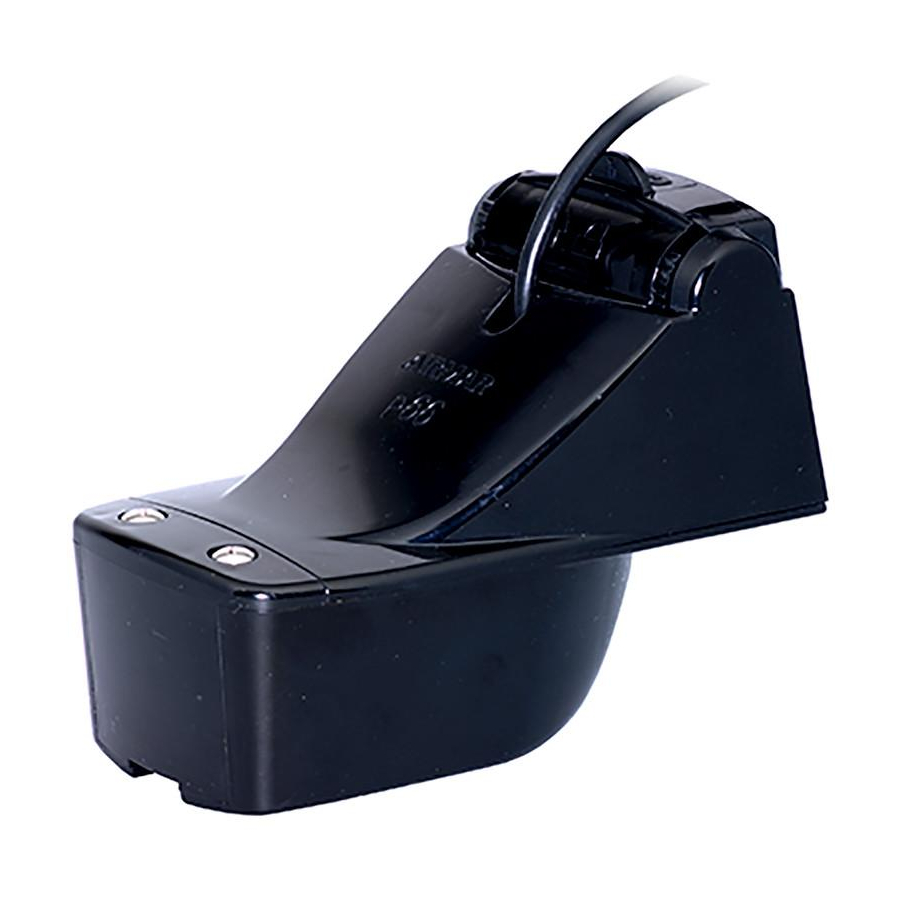

Transom Mount Depth Transducer
or TRIDUCER
U. S. Patents: 4,555,938; 4,644,787; 5,606,253; Des. 334,335
Canadian Patent 1,233,341
IMPORTANT: Please read the instructions completely
before proceeding with the installation. These
instructions supersede any other instructions in your
instrument manual if they differ.
CAUTION : NEVER USE SOLVENTS
Cleaners, fuel, paint, sealants, and other products may
contain strong solvents, such as acetone, which attack
many plastics greatly reducing their strength.

Applications

• Not recommended for boats with large or twin screw inboard
engine(s)
• Good operation up to 44kn (50MPH)
• Vertically orients sound beam on hull with deadrise angle up to 30°
• Adjusts to transom angles from 2
• Bracket protects sensor from frontal impact only

Tools and Materials

Scissors
Masking tape
Safety goggles
Dust mask
Electric drill
Drill bits:
Bracket holes
Fiberglass hull
Transom hole (optional) 20mm or 13/16"
Cable clamp holes
Marine sealant
Screwdrivers
Straight edge
Pencil
Zip-ties
Water-based antifouling paint ( mandatory in salt water )
Figure 1. Stepped hull—headroom required at mounting location
Multisensor
®
with Integral Release Bracket
Model P66
° °
–22
4mm, #23, or 9/64"
chamfer, countersink, 6mm, or 1/4"
3mm or 1/8"
min.: 127mm (5")
max. with speed sensor:
headroom
213mm (8-1/2")
max. no speed sensor:
191mm (7-1/2")
Record the information found on the cable tag for future reference.
Part No._________________Date___________Frequency________kHz
Transducer

Pretest Speed and Temperature Functions

Connect the multisensor to the instrument and spin the
paddlewheel. Check for a speed reading (and the approximate air
temperature if applicable). If there is no reading or it is inaccurate,
return the instrument to your place of purchase.

Mounting Location

To ensure the best performance, the sensor must be in contact
with aeration-free and turbulence-free water. Mount the sensor on
the transom as close to the centerline (keel) of the boat as
possible. On slower heavier displacement hulls, positioning it
farther from the centerline is acceptable.
Headroom —Allow adequate space above the bracket for it to
release and rotate the sensor upward (see Figure 1).
Caution : Do not mount in an area of turbulence or bubbles:
Near water intake or discharge openings;
Behind strakes, struts, fittings, or hull irregularities;
Behind eroding paint (an indication of turbulence).
Caution : Avoid mounting the sensor where the boat may be
supported during trailering, launching, hauling, or storage.
• Single drive boat —Mount on the starboard side at least 75mm
(3") beyond the swing radius of the propeller (see Figure 2).
• Twin drive boat —Mount the sensor between the drives.
Figure 2.
Mounting
location
on single
drive boat
®
TRIDUCER
multisensor
75 mm (3")
minimum beyond
swing radius
