FUNCTION AND LOCATION OF THE CONTROLS

FRONT PANEL
1 7 3
CH
01
0
POWER
MIC
CB/PA
FUNC
2 8

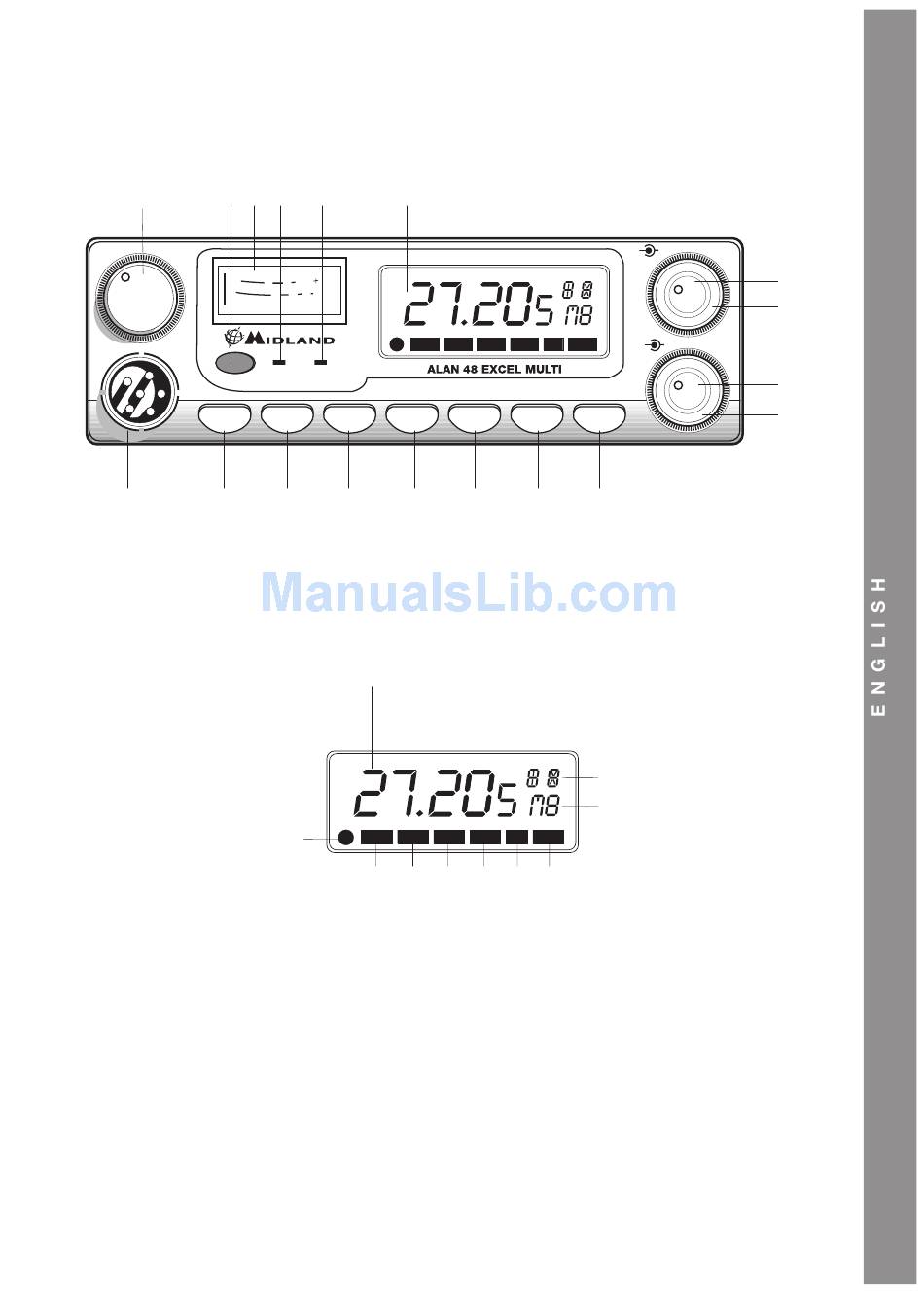

1. Channel selector: it permits the manual channel selection.
2. Microphone jack: insert the mic connector into this jack.
3. Indicator: this meter indicates the receiving signal strength and the transmitter RF
output power.
4. Multifunction backlighted display.
It shows:
a. channel selected number (from 1 up 40) or operative frequency
b. FUNC button activated
c. ESP: reducing noise device activated
d. DW: Dual Watch function activated
e. EMG: indicates channel being used or when the emergency channels are
activated
f. LOCK: keyboard lock function activated
g. SCAN function activated
h. M1-M2-M3-M4-M5: memory channel indicator
i. Indicates the frequency band selected.
j. It appears when the radio transmits in low power (this condition happens only in
certain frequency bands – see the chart at the end of this manual).
6 5 4
5 7 9 30
3
3 5 10
2
EMG
F
TX RX AM FM
M1 M2 M3
EMG DW SCAN
9 10 11
a
b
EMG LOW
F
e j
LOW ESP LOCK DW SCAN
M4/LCR M5 N.K.
AM/FM LOCK
12 13 14
i
h
ESP LOCK DW SCAN
c f d g
3
VOL SQ
17
18
MIC RF
16
15
