Introduction
78-785 represents state-of-the-art high-tech engineering. Designed for 40 channel Citizen Band Mobile operation, this transceiver is big on performance. The unit, usable both in professional and private situations, is a quality piece of electronic equipment, skillfully constructed from the finest components. The circuitry is all solid-state, mounted on rugged printed circuit boards. It is designed for many years of reliable, troublefree performance. Your mobile CB has a 40 channel Phase Locked Loop synthesizer circuit. The PLL circuit incorporates technique for generating all required frequencies with few crystals, resulting in much tighter frequency control and superior reliability.
MAIN FEATURES
- Condenser microphone.
- Ceramic filter: Delivers greater selectivity and reduces adjacent channel interference.
- AGC (Automatic Gain Control) for a constant sound level.
- Automatic modulation control for a constant audio transmit modulation level.
- Low distortion IC audio circuit.
- Automatic noise limiter to reduce pulse noise.
- "HI-LO" switch: Reduces the output power.
- Antenna with BNC connector.
- Jack for external power source and battery charger.
WARNINGS
![]()
- While 75-785 has been designed for many years of reliable, trouble-free performance, it is a precision piece of electronic equipment that should not be exposed to water or to extreme temperatures.
- Do not leave batteries installed over a long period of time as leakage may occur and cause damage to the radio.
- Never use different batteries from the ones suggested.
- Clean the unit with a damp cloth only, never use harsh chemicals.
CARE OF OPTIONAL RECHARGEABLE Ni-Cd BATTERIES
The following is meant as general information regarding Ni-Cd batteries.
- Always allow the battery to fully charge before using.
- Allow the batteries to fully discharge before recharging. Full discharge will be indicated by the "BATT. LOW" indicator.
- The above will prevent the batteries from developing "memory" which effectively reduces their capacity.
- It is better to store Ni-Cd batteries that are discharged rather than charged.
- Never use batteries which differ from the ones recommended. Do not mix old and new batteries or batteries of different capacities.
- If you experience problems when using the transceiver, check the following:
- Batteries must be in good condition;
- The volume level and squelch control setting;
- The channel selector for an active channel;
- The antenna must be properly inserted.
CONTROLS AND INDICATORS

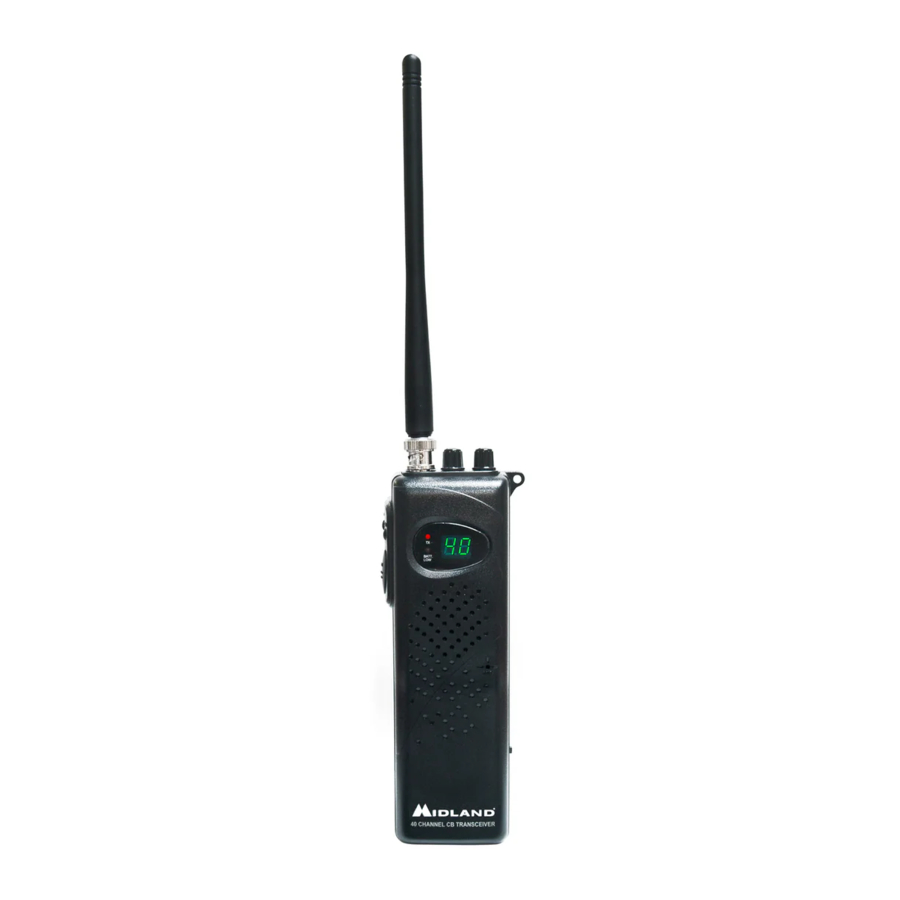

![Midland - 75-785 - CONTROLS AND INDICATORS CONTROLS AND INDICATORS]()
- Antenna connector with BNC connector: To obtain better results, use either a telescopic or an external antenna.
- Squelch Knob: for the maximum receiver sensitivity, the control must be regulated exactly where the receiver background noise disappears.
- On/Off Volume Control: In "OFF" position your transceiver is off. Turn this control clockwise to switch on the unit. Continue turning the knob clockwise to set the audio level, until you get a comfortable reception.
- Display: Indicates the selected channel (from 1 to 40). The display turns off when the squelch is operative.
- "BATT. LOW" LED: This indicator lights when the batteries are low. Replace the alkaline or recharge the AA Ni-Cd batteries.
- "TX" LED: The indicator lights when the unit is transmitting
- Speaker
- Microphone: during transmission, hold the microphone two inches from your mouth, speaking in a clear, normal voice.
- Push to Talk Button ("PTT"): By pressing it, the transmitter is activated. When released, you activate the receiver.
- "Channel UP" button: Tunes to the next channel. Autorepeat is activated by holding this button.
- "Channel DOWN" button: Tunes to the previous channel. Autorepeat is activated by holding this button.
- "SPK" jack: external loudspeaker jack (the internal loudspeaker will be disabled).
- "PTT/MIC" jack: PTT jack / external microphone.
- 13.8 VDC Charge: Power supply/charge jack. You can power the unit from external sources (car battery, etc.) and to recharge the Ni-Cd batteries.
- "HI/LOW" Switch: Selects the output power level during transmission.
- Battery Compartment: Insert 9 AA alkaline or Ni-Cd batteries. (Note: alkaline batteries are not rechargeable).
- Belt Clip
- Hole for wrist strap
HOW TO OPERATE WITH YOUR TRANSCEIVER
- Insert the antenna into the antenna connector.
- Insert 9 AA alkaline or Ni-Cd batteries into the battery compartment (pay attention to the polarity). When using Ni-Cd batteries, switch the interrupter inside this compartment to "Ni" position: in this way, the Ni-Cd batteries can be charged by an optional charger. Select the "AL" position when using the alkaline batteries.
- Rotate the ON/OFF volume control clockwise to turn the unit on. Adjust the volume to the desired listening level.
- Adjust the SQUELCH control.
- Select the desired channel using the "UP/DOWN" buttons.
To transmit: Press and hold the PTT button, then talk to the microphone. To receive: Simply release the PTT button.
ANTENNA
The 75-785 antenna connector permits the use of any kind of 50 Ω/ 27 MHz band antennas.
Better results both in RX and TX can be obtained by using a telescopic antenna. The supplied rubber antenna, however, is more compact and practical to use. It is suitable for communications where maximum range is not necessary.
POWER JACK/RECHARGE
This jack enables you to power the unit using an external power source or directly with the battery of your vehicle using the supplied power cord (the plug must be connected to the power source).
The jack, also, permits the recharge of Ni-Cd batteries through an optional charger. (Attention: To recharge these batteries, switch the interrupter inside the battery compartment onto the "Ni" position.)
CB COMMUNICATIONS CODES
Radios operators have universally adapted the "10" code for standard communications. It enables them to communicate more easily in noisy surroundings.
Here below you will find some of the most common codes and their meaning:
Code | Meaning |
10-1 | Receiving poorly |
10-2 | Receiving well |
10-3 | Stop transmitting |
10-4 | OK-Understood |
10-6 | Busy-Stand by |
10-7 | Out of service - Leaving air |
10-8 | In Service - Subject to call |
10-9 | Please repeat |
10-10 | Transmission completed - Standing by |
10-13 | Road advice - weather conditions |
10-20 | What is your location? |
10-33 | Emergency traffic |
10-36 | Exact time |
10-41 | Switch to channel |
10-62 | Cannot receive - use phone |
10-70 | Fire at ________ |
10-200 | Police needed at ________ |
SPECIFICATIONS
General
Channels: 40 AM
Frequency Range: 26.965-27.405 MHz
Frequency Control: PLL
Temperature Range: -10° – +55°C
Loudspeaker: 8 Ω 0.5 Watt
Microphone: Electret Type
Power Supply Range: 13.8VDC nom., 10.9VDC – 15.6VDC
Dimensions: 55 × 180 × 45 mm
Weight: 0.56 lbs (255 gr.)
Receiver
Receiving system: Superheterodyne with double conversion
I.F.: 1st IF: 10.965 MHz - 2nd IF: 455 KHz
Sensitive: < 1 µV for 10dB (s+n)/N
Audio Output Power @10% THD: 0.5 W @ 8 Ω
Audio Distortion: < 8% @ 1KHz
Image rejection: 65 dB
Adjacent channel selectivity: 65 dB
Signal Noise Ratio: 45 dB
RX Consumption: 60 mA
Transmitter
Output Power: 4 W @ 13.8 VDC
Modulation: 85% – 95%
Audio Frequency Response: 400 Hz – 2.5 KHz
Frequency Tolerance: 0.005%
Harmonic Emission Suppression: > 70 dB
Current Consumption: 900 mA (without modulation)
Specifications are subject to change without notice
SERVICE
If you have a problem which you believe requires service, please first check the FAQ section of this website, check your Owner's Manual, or call and speak with a service technician. Many problems can be remedied without returning the unit for service. If necessary, return as follows:
- Pack the unit in its original box and packing. Then pack the original box in a suitable shipping carton.
![]()
Improper packing may result in damage during shipment. - Include the following:
- Full description of any problems
- Daytime telephone number, name & address
- For warranty service include a photocopy of the bill of sale from an authorized dealer or other proof of purchase showing the date of sale.
- You do not need to return accessory items (Microphones, Mounts, and Owners Guide) unless they might be directly related to the problem.
- Repairs not covered by warranty or units that are over ONE year old are subject to a repair fee. Please call for a quote on repair service cost at 816-241-8500. Send only cashier's check, money order, Master Card or Visa card number.
For Technical Support Contact:
Midland Radio Corporation 5900 Parretta Drive
Kansas City, Missouri 64120
Phone: (816) 241-8500
Fax: (816) 241-5713
E-mail: mail@midlandradio.com Web site: www.midlandusa.com
